S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki, CARB

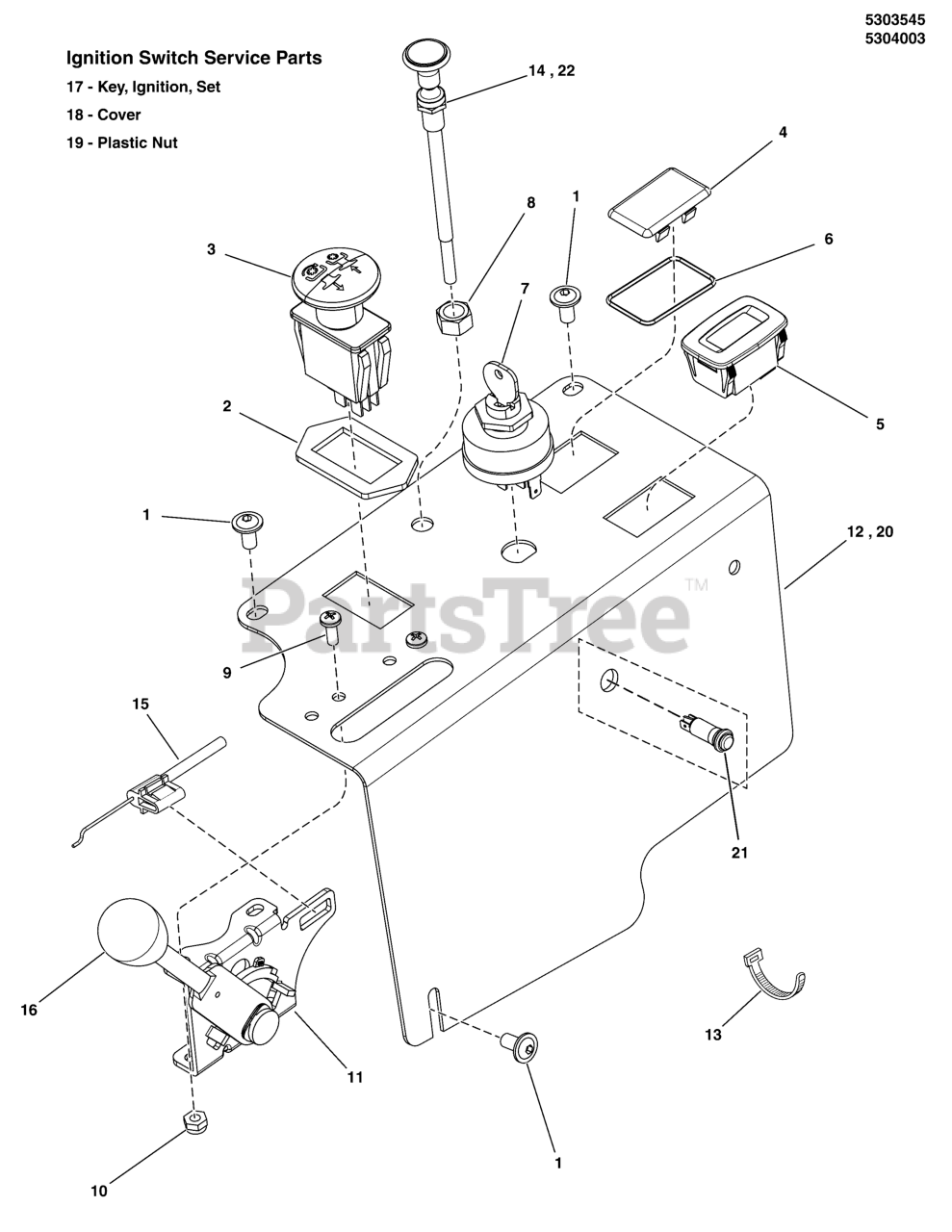

Instrument Control Panel Group Parts Diagram

  • Title

1

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

4

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$5.49

$

In Stock, Qty 7

0

5

HOUR METER

Note: (Refer to Note: *)

$

$

Not available

6

Snapper Pro 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$34.99

$

In Stock, Qty 11

0

8

Snapper Pro 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

Note: (Carbureted Models Only)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$50.99

$

In Stock, only 4 left!

0

12

Snapper Pro 5411620A

PLATE, CONTROL PANEL, S150XT - BLK
(Superseded to 5411620AAFS)

$29.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

14

Snapper Pro 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

Note: (Kawasaki Models Only)

$43.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$34.99

$

In Stock, Qty 9

0

16

Snapper Pro 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (SV)

$11.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

18

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.99

$

In Stock, Qty 7

0

19

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, only 2 left!

0

20

Snapper Pro 5413229A

PLATE, CONTROL PANEL, S150XT, EFI -BLK
(Superseded to 5413229AAFS)

Note: (EFI Models)

$30.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

Note: (EFI Models)

$30.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

Note: (Briggs & Stratton Carbureted Models Only)

$59.99

$

In Stock, only 2 left!

0
