S-1543 - Murray 50cc ATV (2002) Kick Starter Assembly Parts Diagram

50cc ATV

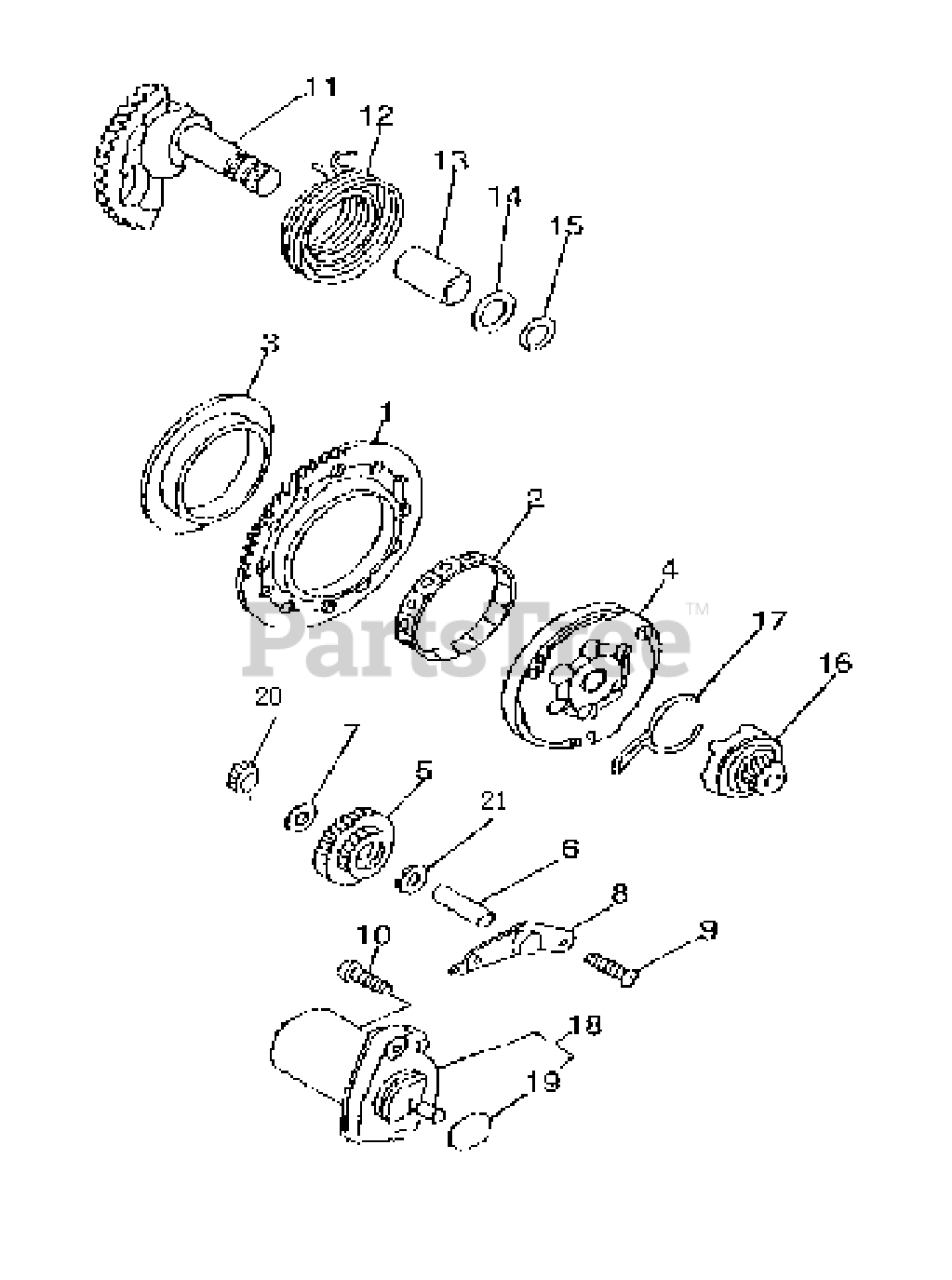

Kick Starter Assembly Parts Diagram

  • Title

1

Murray 7201528

START GEAR ASSY

$

$

Currently unavailable

2

Murray 7201529

NEEDLE BEARING

$

$

Currently unavailable

3

Murray 7201530

THRUST WASHER

$

$

Currently unavailable

4

Murray 7201531

START CLUTCH ASSY

$

$

Currently unavailable

5

Murray 7201532

IDLE GEAR

$

$

Currently unavailable

6

Murray 7201451

IDLE GEAR SHAFT

$

$

Currently unavailable

7

Murray 7201534

PLATE WASHER

$

$

Currently unavailable

8

Murray 7201535

IDLE GEAR HOLDER

$

$

Currently unavailable

9

Murray 7201536

SCREW

$

$

Currently unavailable

10

Murray 7201596

SCREW

$

$

Currently unavailable

11

Murray 7201538

SHAFT, KICK STARTER

$

$

Currently unavailable

12

Murray 7201539

SPRING

$

$

Currently unavailable

13

Murray 7201540

BUSH

$

$

Currently unavailable

14

Murray 7201541

WASHER, KICK STARTER

$

$

Currently unavailable

15

Murray 7201542

CIRCLIP

$

$

Currently unavailable

16

Murray 7201543

KICK PINION ASSY

$

$

Currently unavailable

17

Murray 7201544

CLIP

$

$

Currently unavailable

18

Murray 7201545

STARTING ASSY

$

$

Currently unavailable

19

O-RING

Note: (Included with Ref. No. 18)

$

$

Not available

20

Murray 7201548

NEEDLE BAREING

$

$

Currently unavailable

21

Murray 7201549

PLATE WASHER

$

$

Currently unavailable
