S-1543 - Murray 50cc ATV (2002) Oil Pump Assembly Parts Diagram

50cc ATV

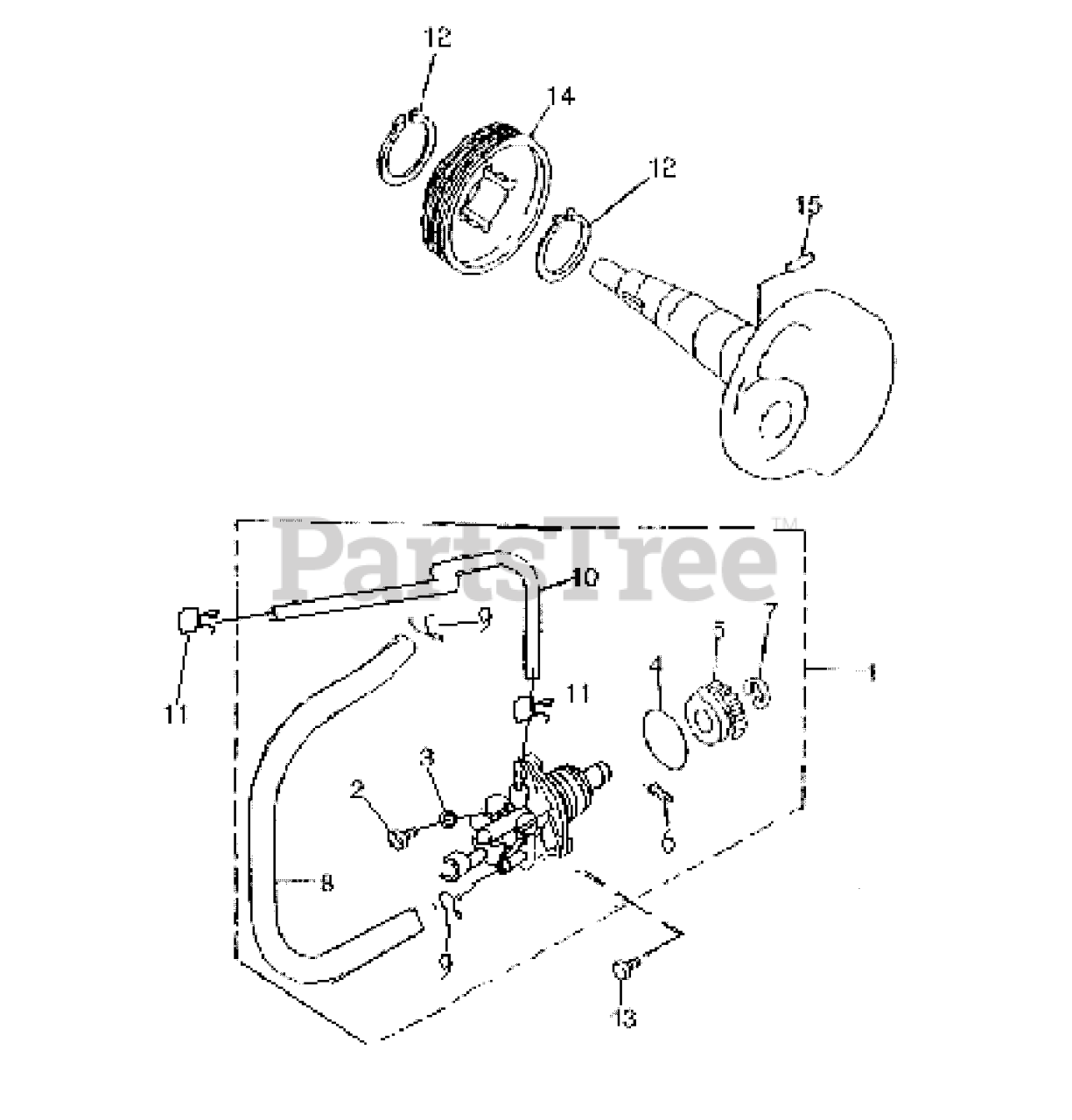

Oil Pump Assembly Parts Diagram

  • Title

1

Murray 7201675

OIL PUMP ASSY

$

$

Currently unavailable

2

SCREW

Note: (Included with Ref. No. 1)

$

$

Not available

3

WASHER

Note: (Included with Ref. No. 1)

$

$

Not available

4

O-RING

Note: (Included with Ref. No. 1)

$

$

Not available

5

GEAR

Note: (Included with Ref. No. 1)

$

$

Not available

6

PIN

Note: (Included with Ref. No. 1)

$

$

Not available

7

CIRCLIP

Note: (Included with Ref. No. 1)

$

$

Not available

8

HOSE

Note: (Included with Ref. No. 1)

$

$

Not available

9

HOSE CLIP

Note: (Included with Ref. No. 1)

$

$

Not available

10

HOSE

Note: (Included with Ref. No. 1)

$

$

Not available

11

Murray 7201506

HOSE CLIP

$

$

Currently unavailable

12

Murray 7201511

CIRCLIP

$

$

Currently unavailable

13

Murray 7201677

SCREW

$

$

Currently unavailable

14

Murray 7201509

PUMP DRIVE GEAR

$

$

Currently unavailable

15

Murray 7201510

PIN

$

$

Currently unavailable
