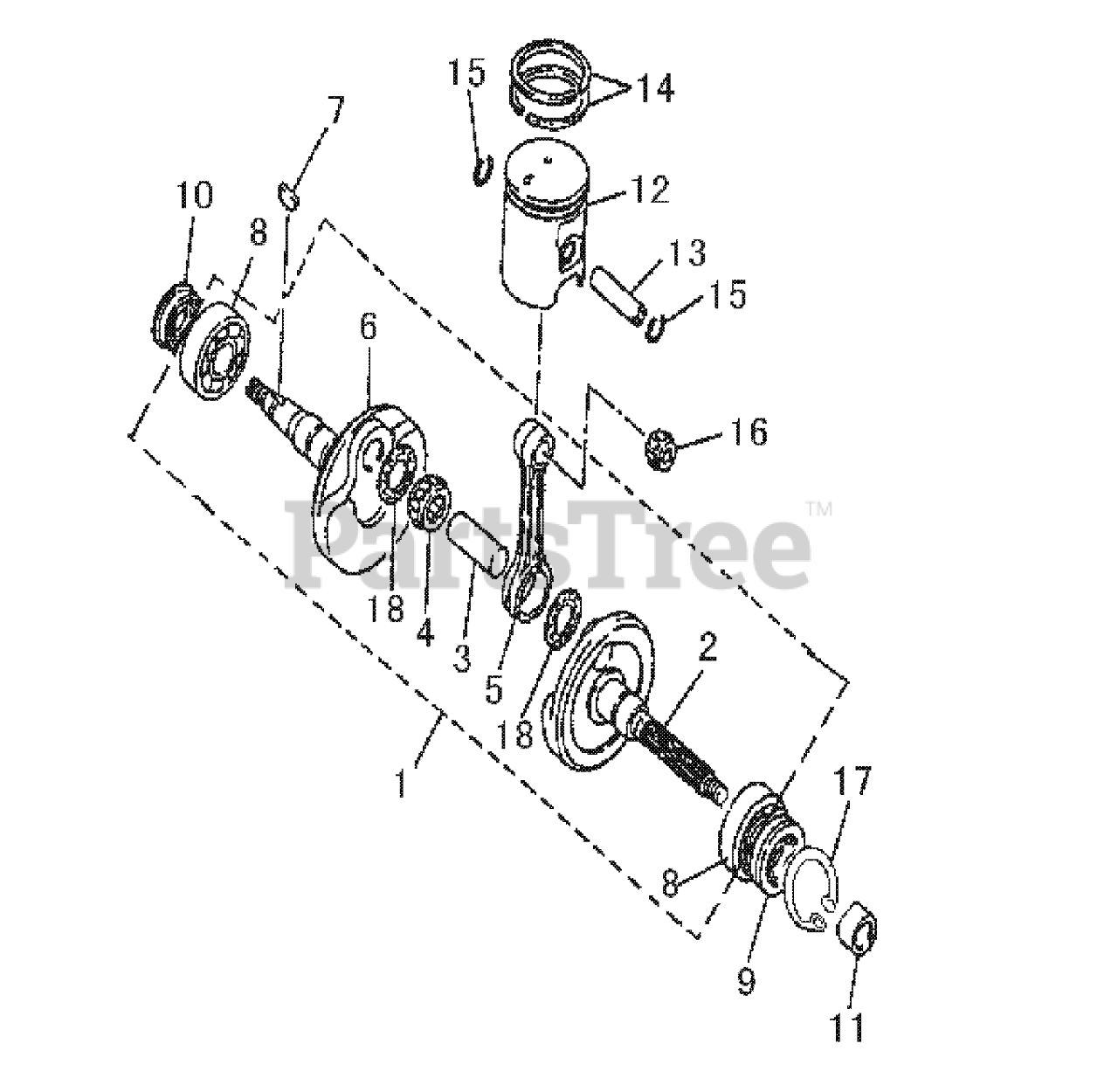

S-1544 - Murray 90cc ATV (2002) Piston Crankshaft Connecting Rod Assembly Parts Diagram

90cc ATV

Piston Crankshaft Connecting Rod Assembly Parts Diagram

  • Title

1

Murray 7201661

CRANKSHAFT, ASSY

$

$

Currently unavailable

2

CRANKSHAFT, LH

Note: (Included with Ref. No. 1)

$

$

Not available

3

CRANK PIN

Note: (Included with Ref. No. 1)

$

$

Not available

4

NEEDLE BEARING

Note: (Included with Ref. No. 1)

$

$

Not available

5

CONNECTING SHAFT

Note: (Included with Ref. No. 1)

$

$

Not available

6

CRANKSHAFT, RH

Note: (Included with Ref. No. 1)

$

$

Not available

7

Murray 7201667

WOODRUFF KEY

$

$

Currently unavailable

8

NEEDLE BEARING

Note: (Included with Ref. No. 1)

$

$

Not available

9

Murray 7201486

OIL SEAL

$2.99

$

Usually ships in 2-12 days

0

10

Murray 7201487

OIL SEAL ASSY

$2.99

$

Usually ships in 2-12 days

0

11

Murray 7201488

COLLAR

$

$

Currently unavailable

12

Murray 7201668

PISTON ASSY

$

$

Currently unavailable

13

Murray 7201671

PISTON PIN

$

$

Currently unavailable

14

Murray 7201672

PISTON RING ASSY

$

$

Currently unavailable

15

Murray 7201673

CIRCLIP

$

$

Currently unavailable

16

Murray 7201674

NEEDLE BEARING

$

$

Currently unavailable

17

Murray 7201587

CIRCLIP

$

$

Currently unavailable

18

CONNECTING ROD WASHER

Note: (Included with Ref. No. 1)

$

$

Not available
