S 17 DE - Snapper String Trimmer Engine Parts Diagram

String Trimmer

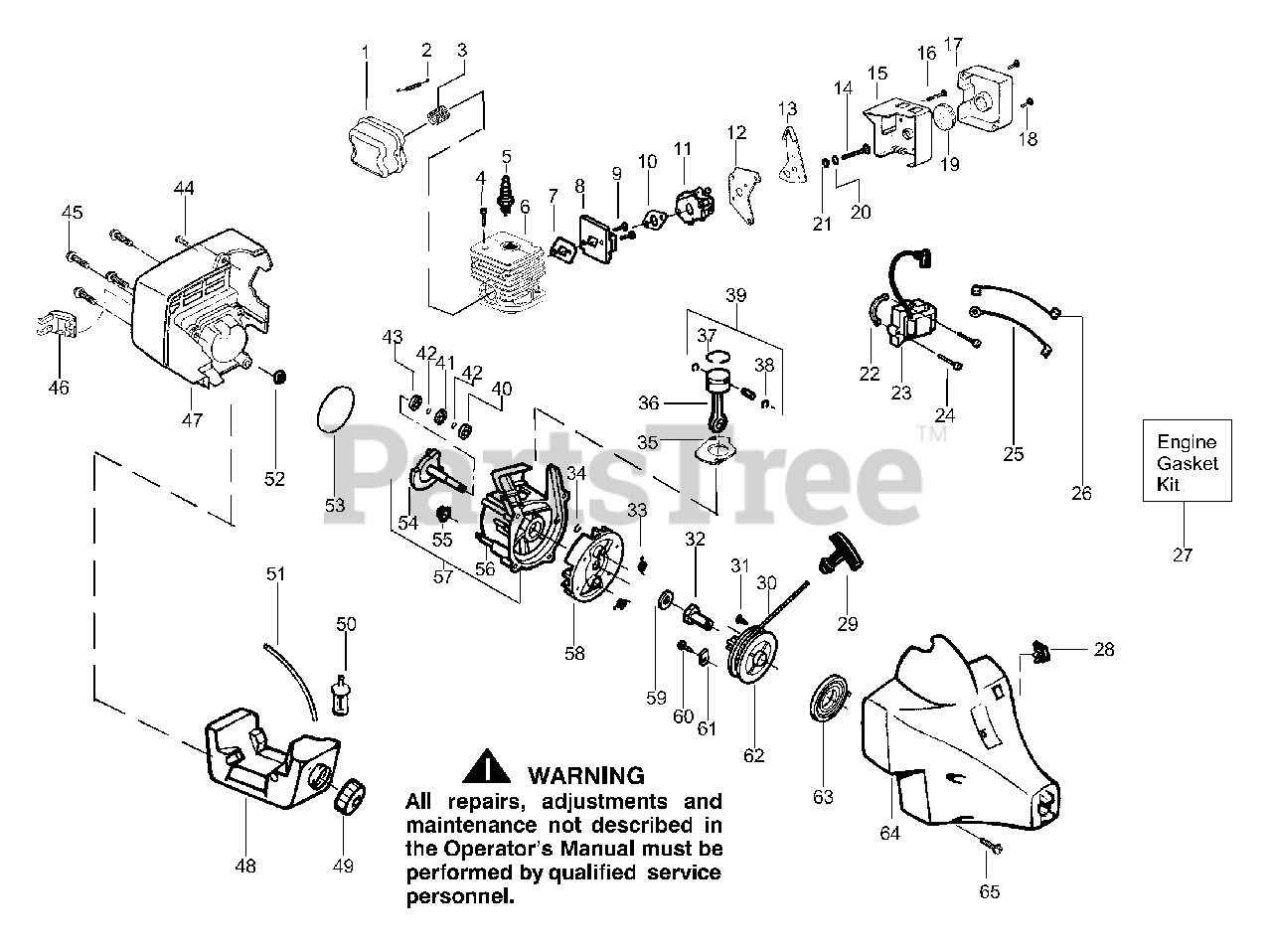

Engine Parts Diagram

  • Title

1

Poulan 530071390

Kit-Muffler

Note: (Incl. 2,3)

$

$

Not available

2

Poulan 530042088

Muffler Spring

$

$

Not available

3

Poulan 530071391

Screen-Spark Arrestor

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$3.49

$

In Stock, Qty 7

0

5

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 530069757

Kit-Cylinder
(Superseded to 582144301)

$

$

Not available

7

Poulan 530071253

Gasket-Cylinder/Carb.

$

$

Not available

8

Poulan 530069758

Kit-Carb. Adapter

$

$

Not available

9

Poulan 530016014

Screw-Carb. Adptr.

$3.49

$

In Stock, only 2 left!

0

10

Poulan 530071253

Gasket-Carb.

$

$

Not available

11

Poulan 530069754

Kit-Carb. Ass'y.

Note: (Incl. Limiter Cap)

$

$

Not available

12

Poulan 530047914

Choke Plate

$

$

Not available

13

Poulan 530047916

Choke Shutter

$

$

Not available

14

Poulan 530015849

Screw

$3.49

$

Usually ships in 3-10 days

0

15

Poulan 530055647

Air Box

$

$

Not available

16

Poulan 530015849

Screw

$3.49

$

Usually ships in 3-10 days

0

17

Poulan 530049079

Air Filter Cover

$

$

Not available

18

Poulan 530015966

Screw-Air Box

$

$

Not available

19

Poulan 530047932

Air FIlter Foam

$5.99

$

In Stock, only 2 left!

0

20

Poulan 530015852

Choke Spacer

$

$

Not available

21

Poulan 530015254

Washer

$

$

Not available

22

Poulan 530036145

Spacer-Ignit. Module

$4.99

$

In Stock, only 3 left!

0

23

Poulan 530055160

Ignition Module

$

$

Not available

24

Poulan 530015954

Screw-Ignit. Module

$3.49

$

Usually ships in 3-10 days

0

25

Poulan 530049389

Ground Wire Ass'y.

$

$

Not available

26

Poulan 530049390

Lead Wire Ass'y.

$

$

Not available

27

Poulan 530071253

Kit-Engine Gasket

Note: (Incl. 7,10,35,53)

$

$

Not available

28

Poulan 530038114

Switch-Momentary
(Superseded to 530071356)

$7.99

$

In Stock, Qty 12

0

29

Poulan 530027569

Starter Handle

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 530069232

Kit-Rope

$5.99

$

In Stock, only 2 left!

0

31

Poulan 530016080

Screw

$3.49

$

In Stock, only 4 left!

0

32

Poulan 530027953

Drive Coupling

$

$

Not available

33

Poulan 530023817

Spring Starter Dog

$3.49

$

In Stock, only 1 left!

0

34

Poulan 530015941

Ret. Ring/C'shaft

$3.49

$

Usually ships in 3-10 days

0

35

Poulan 530071253

Gasket-Cylinder

$

$

Not available

36

Poulan 530069615

Assy. Connecting Rod

$

$

Not available

37

Poulan 530053565

Piston Ring
(Superseded to 545154009)

$4.99

$

In Stock, Qty 8

0

38

Poulan 530015162

Piston Pin Retainer

$3.49

$

In Stock, only 2 left!

0

39

Poulan 530069987

Kit-Piston

Note: (Incls. 37,38 & Pin)

$

$

Not available

40

Poulan 530032124

Outer Bearing

$

$

Not available

41

Poulan 530019179

C'case Seal

$5.99

$

Usually ships in 3-10 days

0

42

Poulan 530015945

Ret. Ring-C'case

$

$

Not available

43

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$11.99

$

Usually ships in 3-10 days

0

44

Poulan 530015880

Screw-Shd/Fan Hsg

$3.49

$

In Stock, Qty 8

0

45

Poulan 530015810

Screw
(Superseded to 530016386)

$4.99

$

In Stock, only 1 left!

0

46

Poulan 530054536

Guard-Muffler

$

$

Not available

47

Poulan 530055491

Rear Shroud

$

$

Not available

48

Poulan 530049299

Assy-Fuel Tank

Note: (Incl. cap, filter, and fuel line)

$

$

Not available

49

Poulan 530014347

Fuel Cap Assy.

$9.49

$

In Stock, Qty 5

0

50

Poulan 530095646

Fuel Pickup Assy

$6.99

$

In Stock, Qty 20+

0

51

Poulan 530069599

Kit-Fuel Line

$11.99

$

In Stock, Qty 7

0

52

Poulan 530036793

Isolator-Shroud

$

$

Not available

53

Poulan 530071253

O-Ring - Crankcase

$

$

Not available

54

Poulan 530054083

Crankshaft Ass'y.

$

$

Not available

55

Poulan 530036792

Isolator-Crankcase

$

$

Not available

56

Poulan 530012414

Crankcase Assy.
(Superseded to 530071627)

Note: (Incl. 40-43)

$

$

Not available

57

Poulan 530014729

C'case/C'shaft Assy.

Note: (Incl. 34,40-43,54,56)

$

$

Not available

58

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$31.99

$

In Stock, Qty 6

0

59

Poulan 530015828

Washer-Flat

$3.49

$

In Stock, only 1 left!

0

60

Poulan 530015966

Screw-Pulley

$

$

Not available

61

Poulan 530016226

Retainer-Pulley

$

$

Not available

62

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 31)

$13.99

$

In Stock, only 4 left!

0

63

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$11.99

$

In Stock, only 3 left!

0

64

Poulan 530055645

Assy.-Fan Hsg.

$

$

Not available

65

Poulan 530015810

Screw
(Superseded to 530016386)

$4.99

$

In Stock, only 1 left!

0
