S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar 61" Mower Deck - Housing, Covers, Spindles & Blades Side Discharge Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

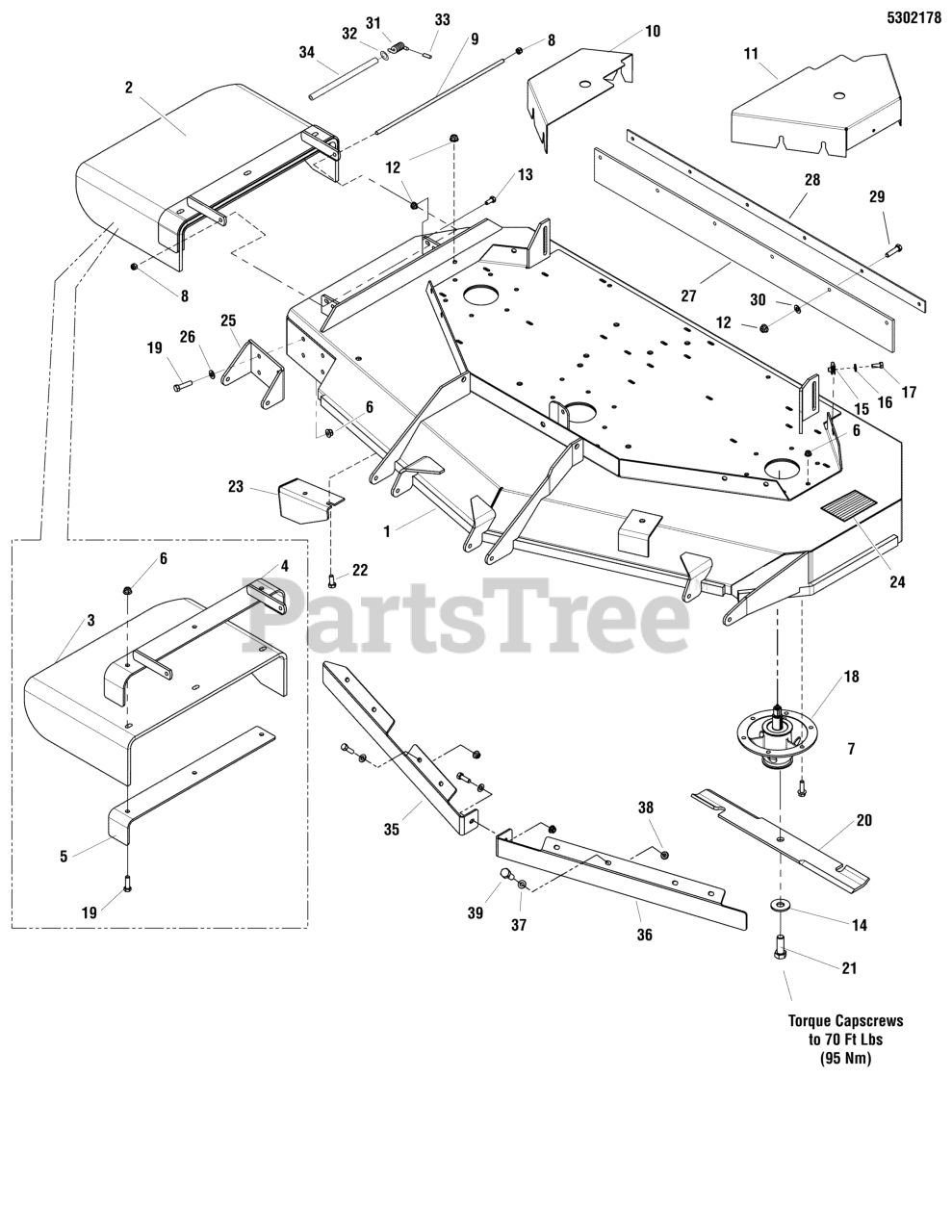

61" Mower Deck - Housing, Covers, Spindles & Blades Side Discharge Parts Diagram

  • Title

1

Snapper Pro 5600494

DECK SHELL W/ DECALS, S175X 61

Note: (DOMESTIC MODELS)

$

$

Currently unavailable

1

Snapper Pro 5600420

DECK SHELL W/ DECALS, S175X 61 CE

Note: (EXPORT MODELS)

$1966.99

$

Usually ships in 2-12 days

0

2

PURCHASE INDIVIDUAL REPLACEMENT PARTS

$

$

Not available

3

Snapper Pro 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

$

$

Currently unavailable

4

Snapper Pro 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

$100.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

$22.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 25 - S/N: 2016399222 & Below)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

8

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

9

Snapper Pro 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5406909D

GUARD, 61", RH - RED

$

$

Currently unavailable

11

Snapper Pro 5406905D

GUARD, 61" - LH - RED

$50.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

14

Snapper Pro 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 18

0

15

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

16

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

18

Snapper Pro 5100993

ASSM, SPINDLE, CAST IRON
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (Qty: 7 - S/N: 2016399222 & Below)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5101755S

BLADE, 21" (SET OF 3)

$

$

Not available

21

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

25

Snapper Pro 5408810D

PLATE, BRACKET, ANTI SCALP - RED
(Superseded to 5408810DYP)

Note: (S/N: 2016399222 & Below)

$41.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2016399222 & Below)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5102036

FLAP, STRIPER, 61 DECK
(Superseded to 5102036YP)

$90.99

$

In Stock, only 1 left!

0

28

Snapper Pro 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$39.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (EXPORT MODELS)

$8.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

Note: (EXPORT MODELS)

$3.99

$

In Stock, only 1 left!

0

33

Snapper Pro 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (EXPORT MODELS)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5050086X10P75

TUBE, 1/2 X 3/8 X 10.75 BLACK POLY
(Superseded to 5050086X10P75YP)

Note: (EXPORT MODELS)

$14.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5406716D

BAFFLE, BLOWOUT, 61 ICD, RH - BLK

Note: (EXPORT MODELS)

$

$

Currently unavailable

36

Snapper Pro 5406717A

BAFFLE, BLOWOUT, 61 ICD, LH - BLK

Note: (EXPORT MODELS)

$44.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025155

WASHER, 5/16" SAE

Note: (EXPORT MODELS)

$

$

Currently unavailable

38

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (EXPORT MODELS)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: (EXPORT MODELS)

$3.49

$

Usually ships in 2-12 days

0
