S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar 61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

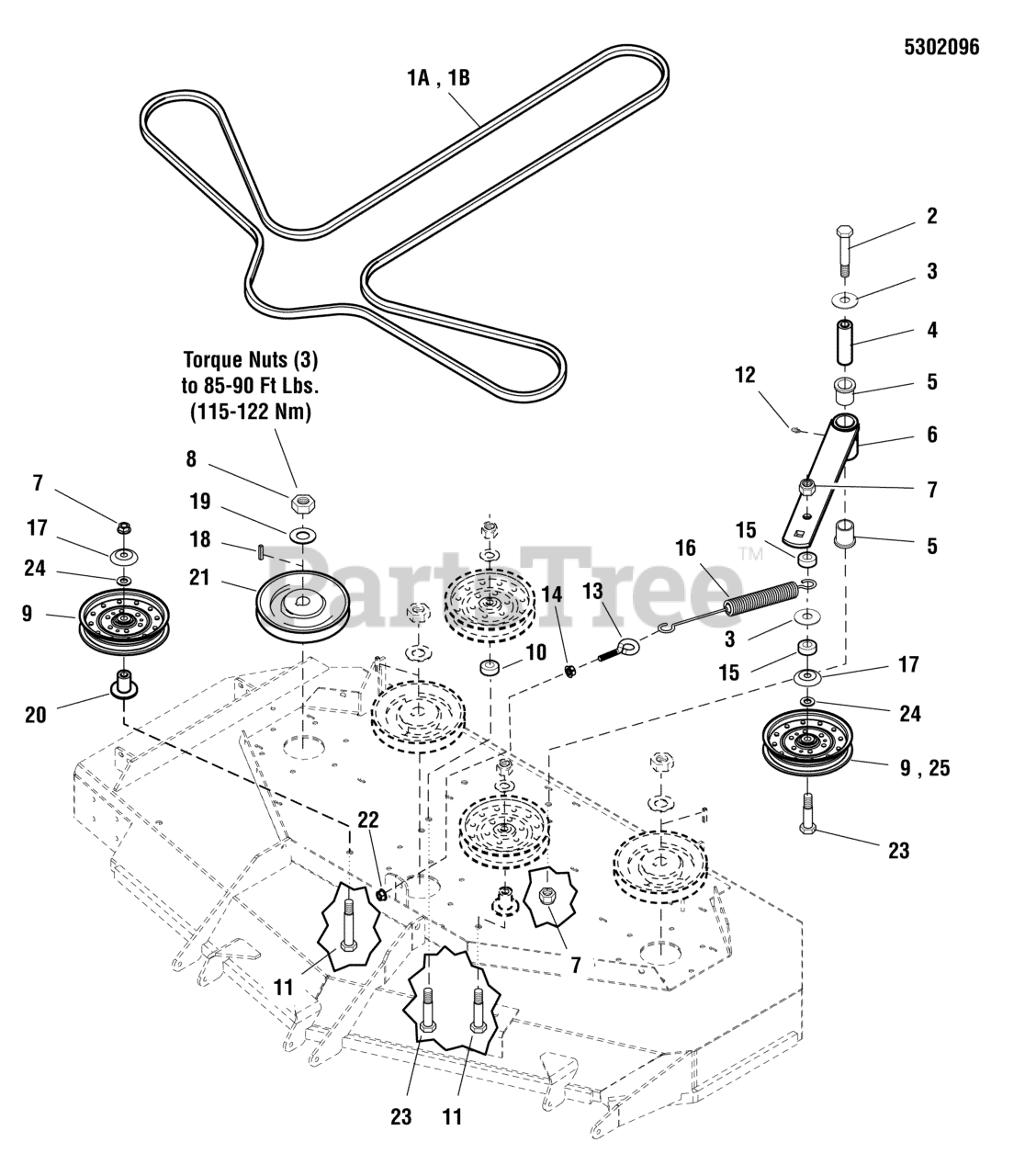

61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

  • Title

1a

Snapper Pro 5104063

BELT, 5V, 182.00"EL, LRG ARAMID, WRP, RC
(Superseded to 5104063FS)

Note: (SIDE DISCHARGE)

$142.99

$

Usually ships in 2-12 days

0

1b

Snapper Pro 5102269

BELT, B-SEC, 184.9 EL, ARMID, WRAPPED

Note: (REAR DISCHARGE)

$148.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 502517X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ

$

$

Currently unavailable

3

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.5
(Superseded to 5045022SM)

$24.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

6

Snapper Pro 5407039A

WELD, IDLER ARM - BLK
(Superseded to 5407039AYP)

$62.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

8

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

9

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

10

Snapper Pro 5046916

SPACER, .51 X 1.75 X .75
(Superseded to 5046916FS)

$27.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

14

Snapper Pro 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5023340

SPRING-EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$74.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 2 left!

0

24

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (Used with 5103800 pulley)

$3.99

$

In Stock, Qty 13

0

25

USE 5104716 PULLEY + 5105145 SHIELD

Note: (CE Models)

$

$

Not available
