S 200XT (5901233.1) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950123 & Above) Wheel & Tire Group (Pneumatic & Flat Free Tires) Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler

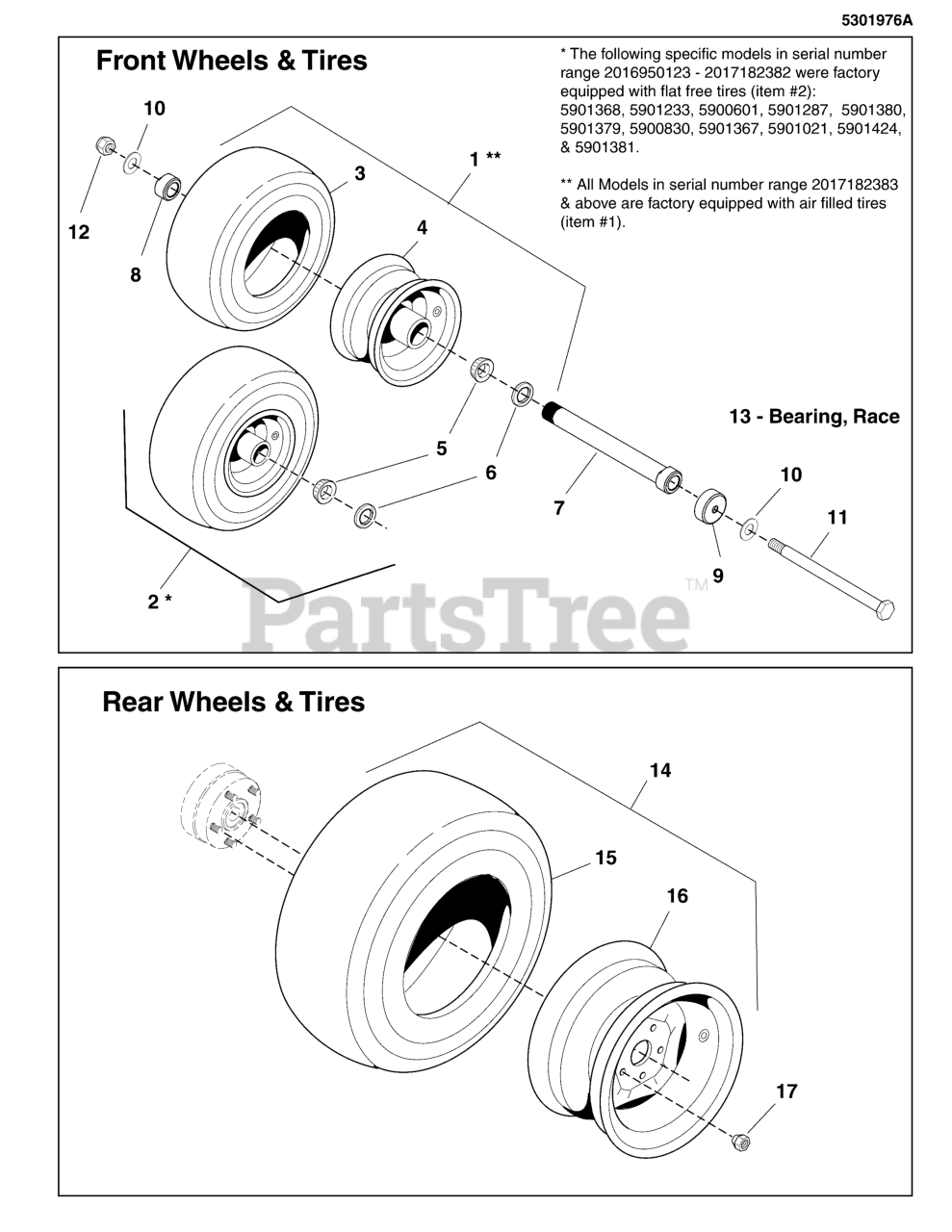

Wheel & Tire Group (Pneumatic & Flat Free Tires) Parts Diagram

  • Title

1

Snapper Pro 5023136

TIRE ASSM, 13 X 6.5 - 6, PNE / TB
(Superseded to 5023136YP)

$198.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5023279

TIRE ASSM, 13 X 6.5 - 6, FF / TB
(Superseded to 5023279YP)

$219.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022577

TIRE, RUBBER ONLY

Note: (SV)

$

$

Currently unavailable

4

Snapper Pro 5023136X1

WHEEL ASSEMBLY
(Superseded to 5023136X1YP)

Note: (SV)

$195.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (SV)

$12.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (SV)

$9.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5103649

BEARING ADJUSTER, SPACER, 7.062 LG
(Superseded to 5103649YP)

Note: (1 per tire)

$23.99

$

In Stock, only 2 left!

0

8

Snapper Pro 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

Note: (1 per tire)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5103594

DEBRIS COVER, CASTER WHEELS
(Superseded to 5103594YP)

Note: (2 per tire)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

11

Snapper Pro 5025017X72

BOLT, 1/2-13 X 9 GD5 YZ
(Superseded to 5025017X72YP)

$11.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

13

Snapper Pro 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (SV)

$10.99

$

In Stock, only 2 left!

0

14

Snapper Pro 5104029

TIRE/WHEEL ASM, 24X12.00-12, TURF SMART

$478.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5104029X1

TIRE, 24X12.00-12, TURF SMART
(Superseded to 5023240X1)

Note: (SV)

$330.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5023364

WHEEL, 12 X 8.5

Note: (SV)

$

$

Currently unavailable

17

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0
