S 200XT (5901280) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton 61" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017681137 & Above Parts Diagram

S200XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton

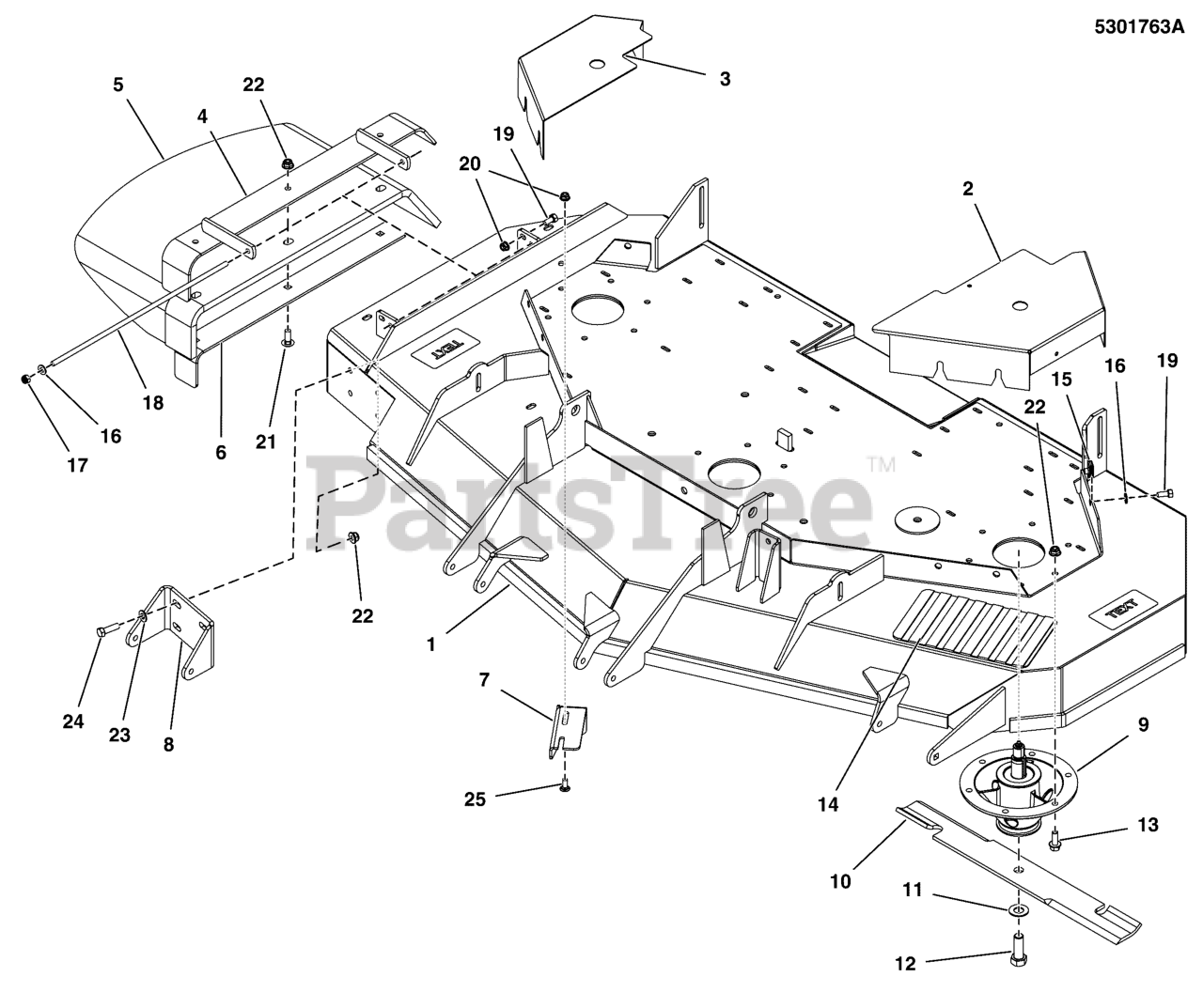

61" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017681137 & Above Parts Diagram

  • Title

1

Snapper Pro 5600972

DECK SHELL W/DECALS, 61, 200XT (5416054D)

Note: (S/N: 2017954955 & Below)

$2341.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 5601086

DECK SHELL W/DECALS,61,S200XT(5417036D)

Note: (S/N: 2017954956 & Above)

$

$

Currently unavailable

2

Snapper Pro 5405484D

GUARD, 61 - LH - RED
(Superseded to 5405484DYP)

$60.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5405308D

GUARD, RH - 61 - S200XI - RED
(Superseded to 5405308DYP)

$53.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 6

0

7

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5408810D

PLATE, BRACKET, ANTI SCALP, RH - 61 -RED
(Superseded to 5408810DYP)

Note: (S/N: 2017954955 & Below)

$41.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5101755S

BLADE SET, 61 DECK (3)

$

$

Not available

11

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 13

0

12

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

16

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

18

Snapper Pro 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 25 - S/N: 2017954955 & Below)

$4.49

$

In Stock, Qty 17

0

23

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2017954955 & Below)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: (S/N: 2017954955 & Below)

$3.99

$

In Stock, only 3 left!

0

25

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0
