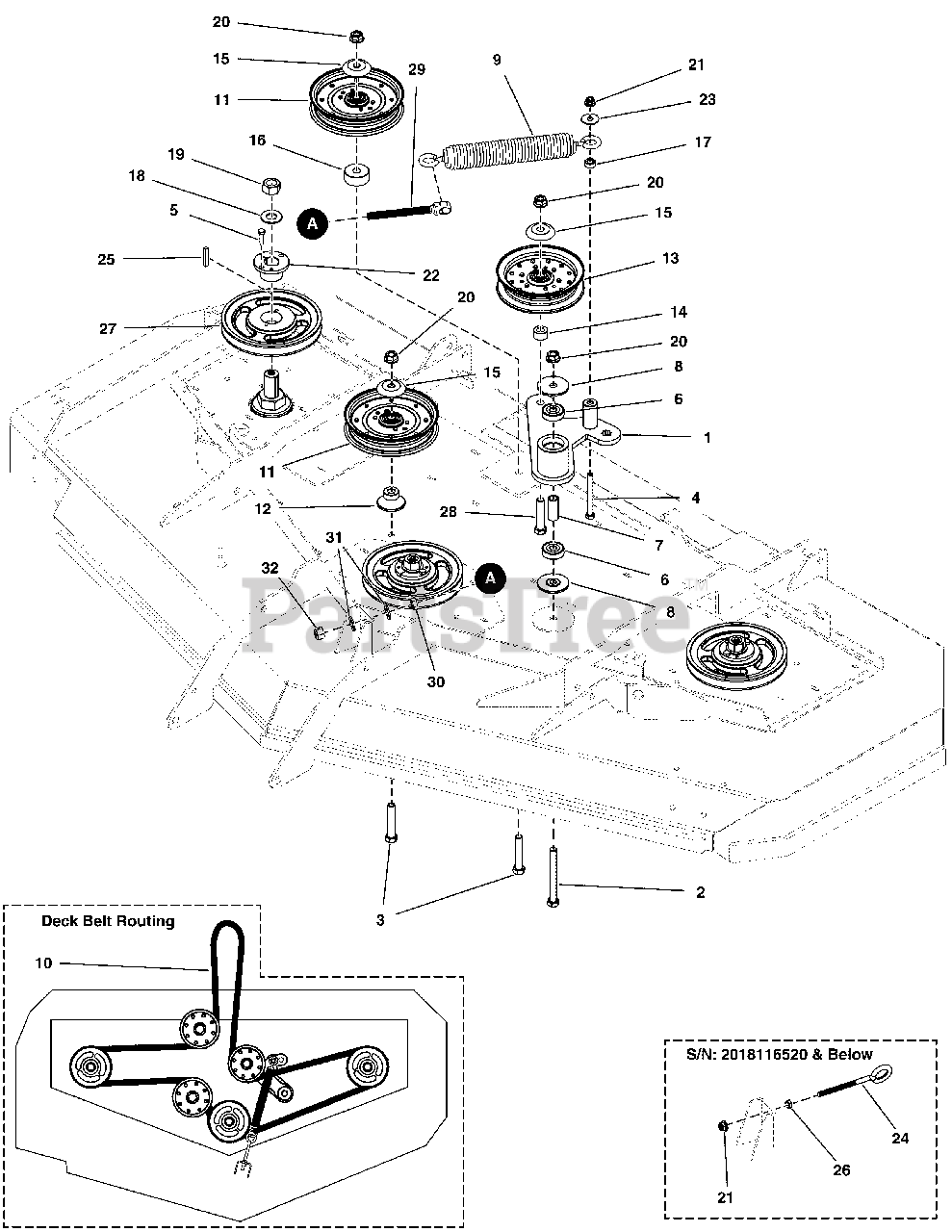

S 200XT (5901511) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton 72" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2016950123 & Above Parts Diagram

S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

72" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2016950123 & Above Parts Diagram

  • Title

1

Snapper Pro 5413128A

WELD, IDLER ARM, CUTTER DECKS - BLK

$142.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025010X18

BOLT, 1/4-20 X 2-1/4 GD5 CZ
(Superseded to 5025010X18SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

7

Snapper Pro 5104381

SPACER, .510 X .750 X 1.749, CZ
(Superseded to 5104381YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5104059

BELT, SPB/XPB 193.9" EL, LRG ARAMID, 2T
(Superseded to 5104059YP)

$154.99

$

Usually ships in 2-12 days

0

11

Replace with: Pulley #5104717YP & Debris Shield #5105145YP

$

$

Not available

12

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0

13

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

14

Snapper Pro 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5046916

SPACER, .51 x 1.75 x .75
(Superseded to 5046916FS)

$27.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, Qty 5

0

18

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

21

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 2 - S/N: 2018116520 & Below)

$4.49

$

In Stock, Qty 20+

0

22

Snapper Pro 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

Note: (S/N: 2018116520 & Below)

$5.99

$

In Stock, only 2 left!

0

25

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 1 left!

0

26

Snapper Pro 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

Note: (S/N: 2018116520 & Below)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5022794

PULLEY, SPINDLE, BH 72
(Superseded to 5022794FS)

$97.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

29

Snapper Pro 5105844

SPRING PULLER, 1/2-20, 5.00
(Superseded to 5105844YP)

Note: (S/N: 2018116521 & Above)

$16.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

Note: (S/N: 2018116521 & Above)

$3.99

$

In Stock, only 1 left!

0

31

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2018116521 & Above)

$3.99

$

In Stock, Qty 20+

0

32

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (S/N: 2018116521 & Above)

$4.49

$

In Stock, Qty 20+

0
