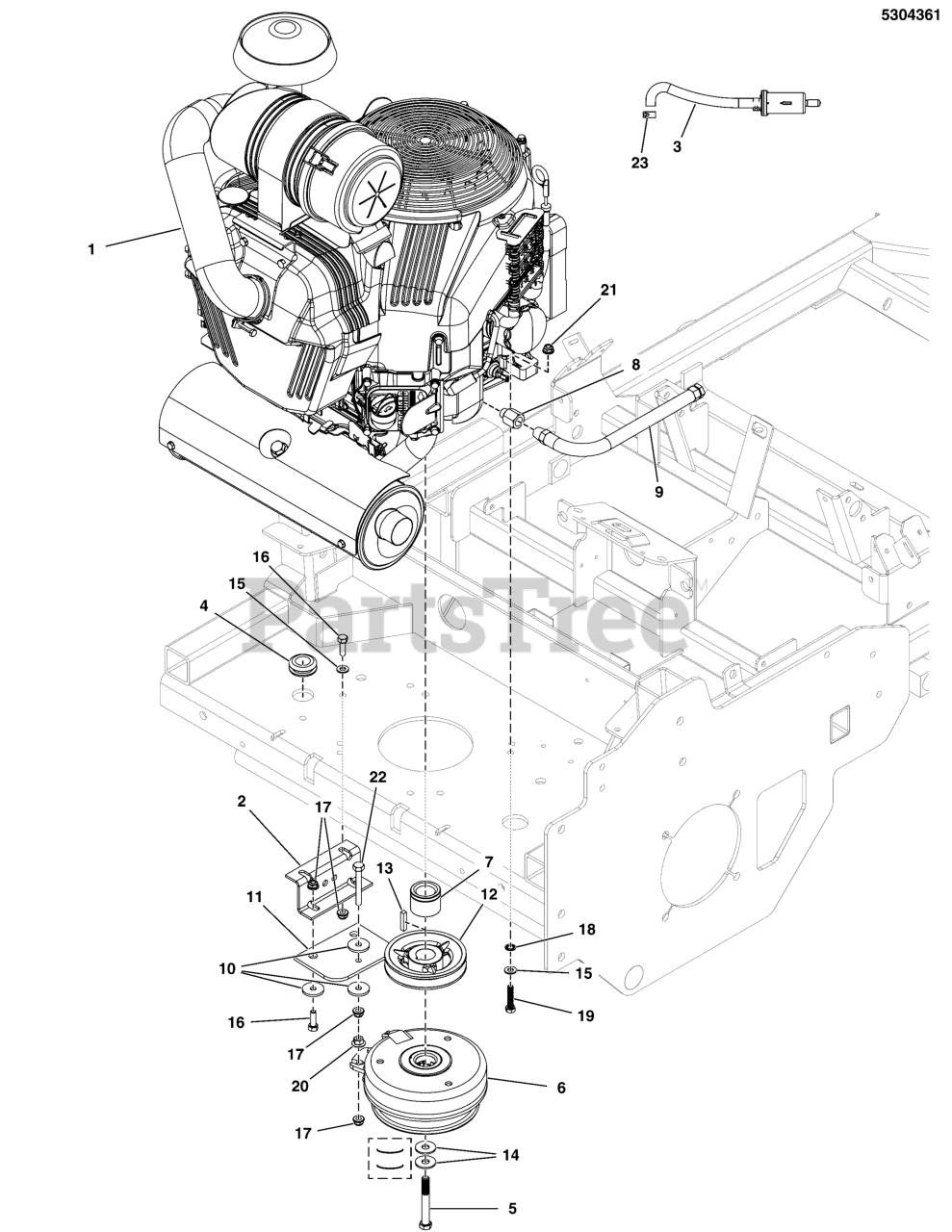

S 200XT (5901511) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton 61E877 EFI Engines Parts Diagram

S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton 61E877 EFI Engines Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton, 61E877-0008-J1 / 61E877-0005-J1

$

$

Not available

2

Snapper Pro 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

3

Snapper Pro 846732

HOSE/FILTER ASSY
(Superseded to 84003196)

Note: (SV)

$24.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD 8
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5101780

CLUTCH, WARNER, 250 ft lbs - 1.13"

$586.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

$13.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

11

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

14

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

15

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5102046

CLAMP, HOSE, EXTERNAL, 9/16
(Superseded to 84003197)

$2.49

$

Usually ships in 2-12 days

0
