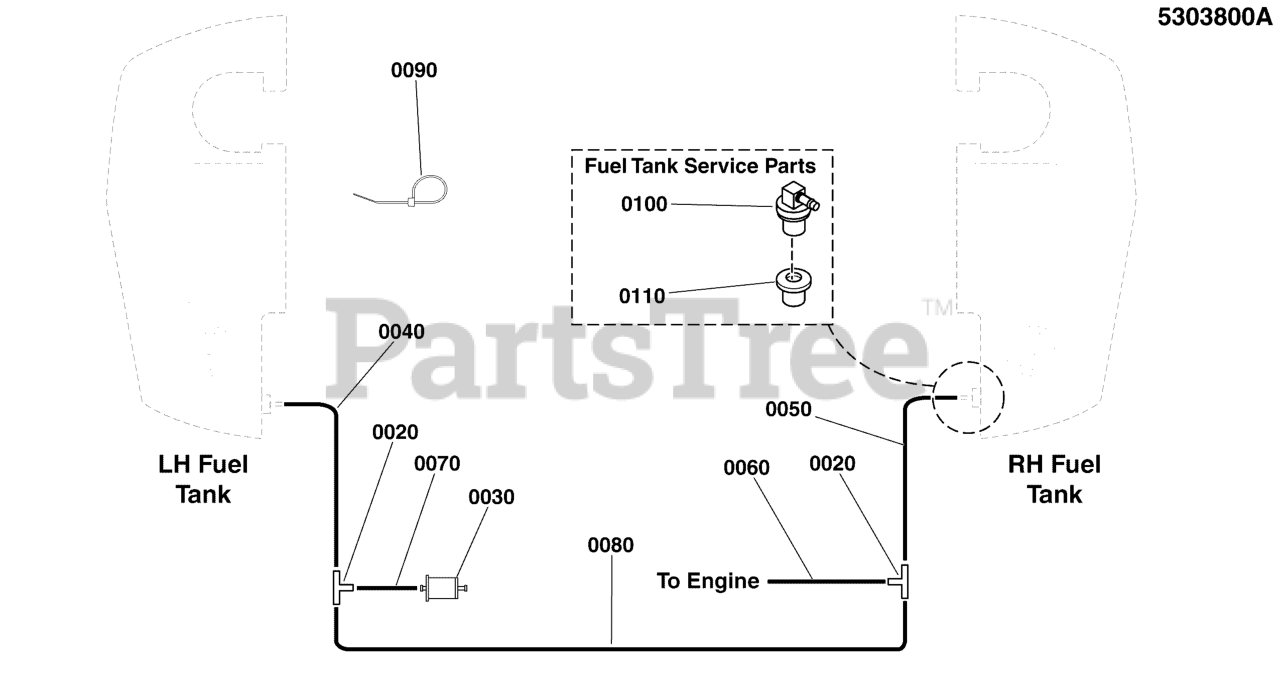

S 200XT (5901666) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 37hp Briggs & Stratton Evap Group - S/N: 2017791381 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

Evap Group - S/N: 2017791381 & Below Parts Diagram

  • Title

0020

Snapper Pro 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

0030

Snapper Pro 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

0040

Snapper Pro 7700552X21P5

HOSE, VAPOR, 5MM ID, 21.50 LG
(Superseded to 7700552X22YP)

$9.49

$

In Stock, only 2 left!

0

0050

Snapper Pro 7700552X39

HOSE, VAPOR, 5MM ID, 39.00 LG
(Superseded to 7700552X39YP)

$

$

Not available

0060

Snapper Pro 7700552X5

HOSE, VAPOR, 5MM ID, 5.00 LG
(Superseded to 7700552X5YP)

$5.99

$

In Stock, only 2 left!

0

0070

Snapper Pro 7700552X2

HOSE, VAPOR, 5MM ID, 2.00 LG
(Superseded to 7700552X2YP)

$4.99

$

In Stock, only 2 left!

0

0080

Snapper Pro 7700552X24

HOSE, VAPOR, 5MM ID, 24.00 LG
(Superseded to 7700552X24FS)

$8.49

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 2 left!

0

0100

Snapper Pro 770046

REMOTE VENT ASSEMBLY

Note: (One per fuel tank)

$17.99

$

In Stock, only 3 left!

0

0110

Snapper Pro 209043

GROMMET (SV)
(Superseded to 799624)

Note: (One per fuel tank)

$9.49

$

In Stock, only 4 left!

0
