S 200XT (5902098) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton Electrical Group Parts Diagram

S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

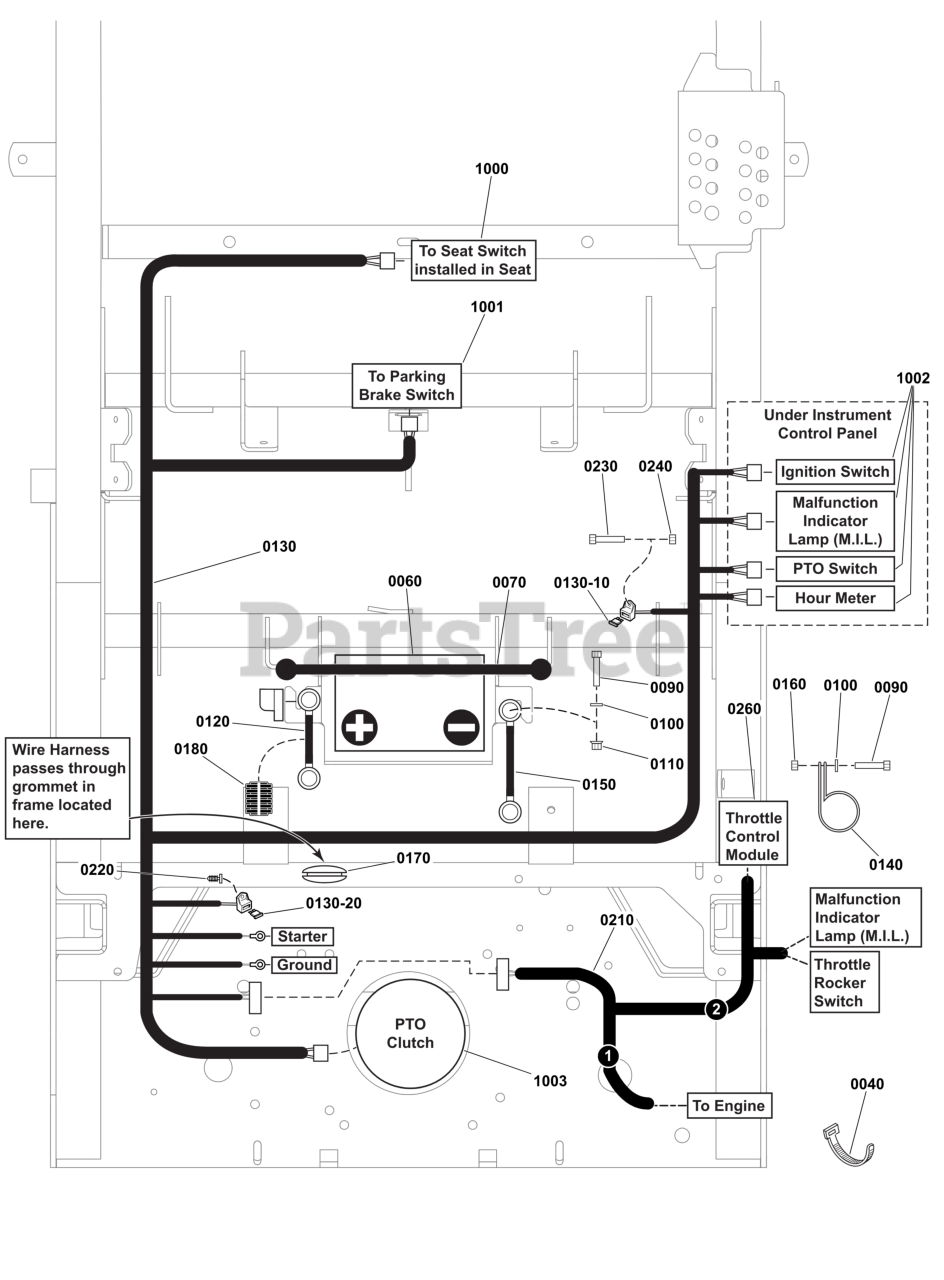

Electrical Group Parts Diagram

  • Title

0040

Snapper Pro 5021029SM

TIE WRAP, 11" Long

$

$

Not available

0060

BATTERY, 11U1L, 350 CCA

$

$

Not available

0070

Snapper Pro 1722009FS

STRAP

$9.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 13

0

0100

Snapper Pro 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5021405SM

BATTERY CABLE, POSITI

$18.99

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5105535YP

HARNESS-WIRING

$207.99

$

Usually ships in 2-12 days

0

0130-10

Snapper Pro 5102710YP

FUSE

$3.49

$

Usually ships in 2-12 days

0

0130-20

Snapper Pro 5101935YP

FUSE, ATO 15 AMP

$4.49

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5021500FS

CLAMP

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5021406SM

BATTERY CABLE, NEGATI

$16.99

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5101396YP

CABLE-BATTERY, BLACK

$35.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5025391FS

NUT

$3.99

$

In Stock, only 2 left!

0

0170

Snapper Pro 5100716YP

GROMMET, 2" ID

$5.49

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5050927X17FS

WIRE, Loom

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5050927X24

WIRE LOOM, 3/8 ID X 24 IN

$

$

Currently unavailable

0210

Snapper Pro 84006567

HARNESS, Jumper

$109.99

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5103761YP

FIR TREE MOUNT

$5.99

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

0240

Snapper Pro 5025271FS

NUT

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5104705YP

CLIP

$2.49

$

Usually ships in 2-12 days

0

0260

Snapper Pro 84006408

MODULE, Throttle Control

$222.99

$

Usually ships in 2-12 days

0

1000

Refer to: Instrument Control Panel Group

$

$

Not available

1001

Refer to: Seat Mount & Floor Group

$

$

Not available

1002

Refer to: Parking Brake Group

$

$

Not available

1003

Refer to: Engine & PTO Group

$

$

Not available
