S 200XT (5902098) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton Instrument Control Panel Group - Fuel Injected Models with Electronic Throttle Control Parts Diagram

S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

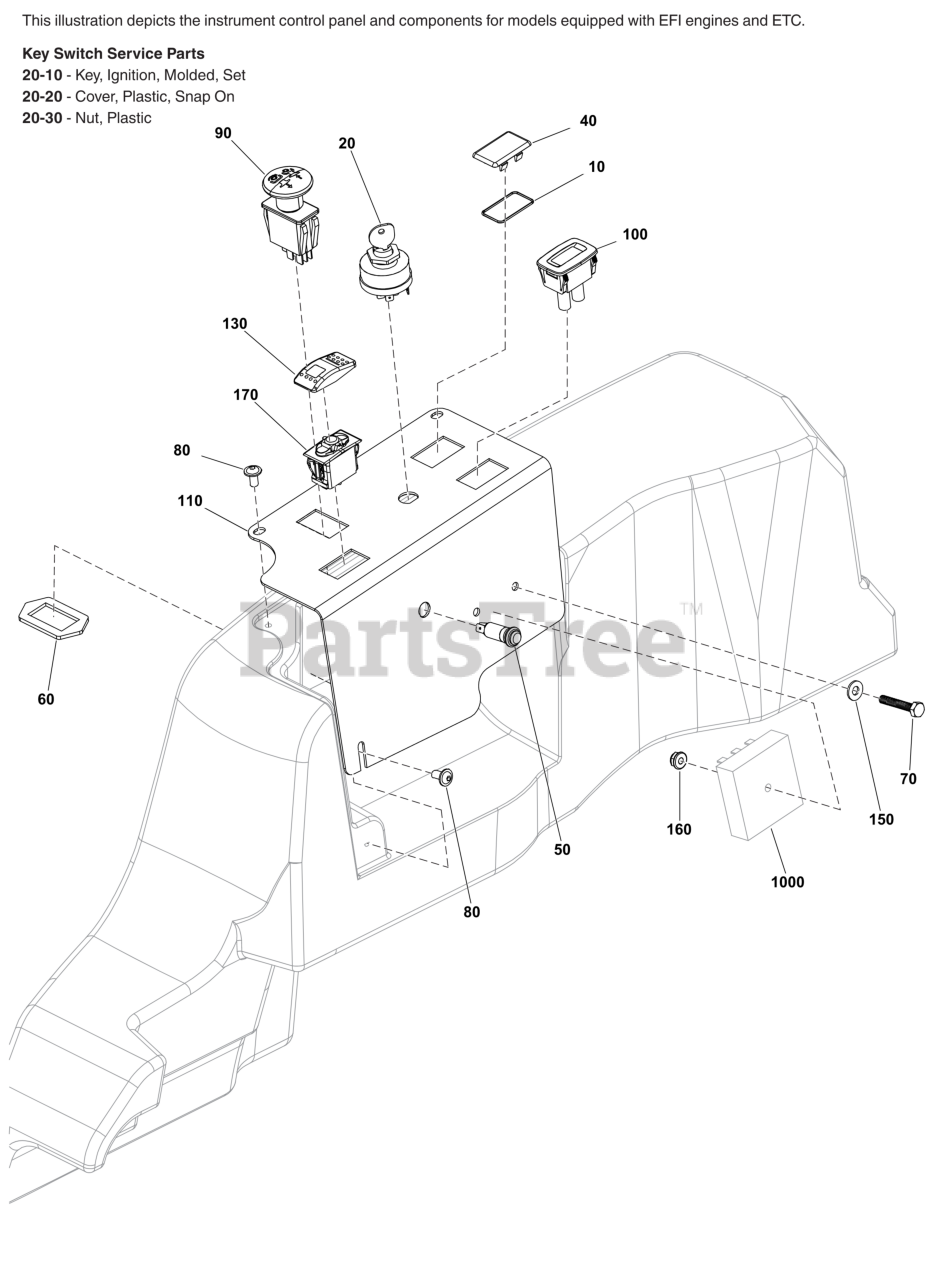

Instrument Control Panel Group - Fuel Injected Models with Electronic Throttle Control Parts Diagram

  • Title

10

Snapper Pro 5022269SM

O-RING, 7/8" ID X 1/1

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5020927FS

SWITCH, IGNITION

$34.99

$

In Stock, Qty 10

0

20-10

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

20-20

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.99

$

In Stock, Qty 6

0

20-30

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, only 2 left!

0

40

Snapper Pro 1709188SM

PLUG, BLACK PLASTIC

$5.49

$

In Stock, Qty 5

0

50

Snapper Pro 5103809YP

LIGHT, Indicator

$30.99

$

Usually ships in 2-12 days

0

60

Snapper Pro 5022222SM

RING, SWITCH RETAINER

$4.49

$

In Stock, only 2 left!

0

70

Snapper Pro 5025010X12SM

BOLT, 1/4-20

$3.49

$

In Stock, only 1 left!

0

80

Snapper Pro 84002228

SCREW, FLANGE

$2.99

$

Usually ships in 2-12 days

0

90

Snapper Pro 1722887SM

SWITCH-PTO PUSH

$35.99

$

In Stock, Qty 16

0

100

Snapper Pro 84008510

HOURMETER

$35.99

$

Usually ships in 2-12 days

0

110

Snapper Pro 5414578A

PLATE, CONTROL PANEL, S125XT,KAV EFI - BLK

$

$

Currently unavailable

130

Snapper Pro 84006404

SWITCH, ROCKER

$6.99

$

In Stock, only 1 left!

0

150

Snapper Pro 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

160

Snapper Pro 5025391FS

NUT

$4.49

$

In Stock, only 3 left!

0

170

Snapper Pro 84006405

BODY, ROCKER SWITCH

$32.99

$

In Stock, only 1 left!

0

1000

Refer to: Instrument Control Panel Group

$

$

Not available
