S 20200 - Scotts String Trimmer, 20 Volt General Assembly Parts Diagram

String Trimmer, 20 Volt

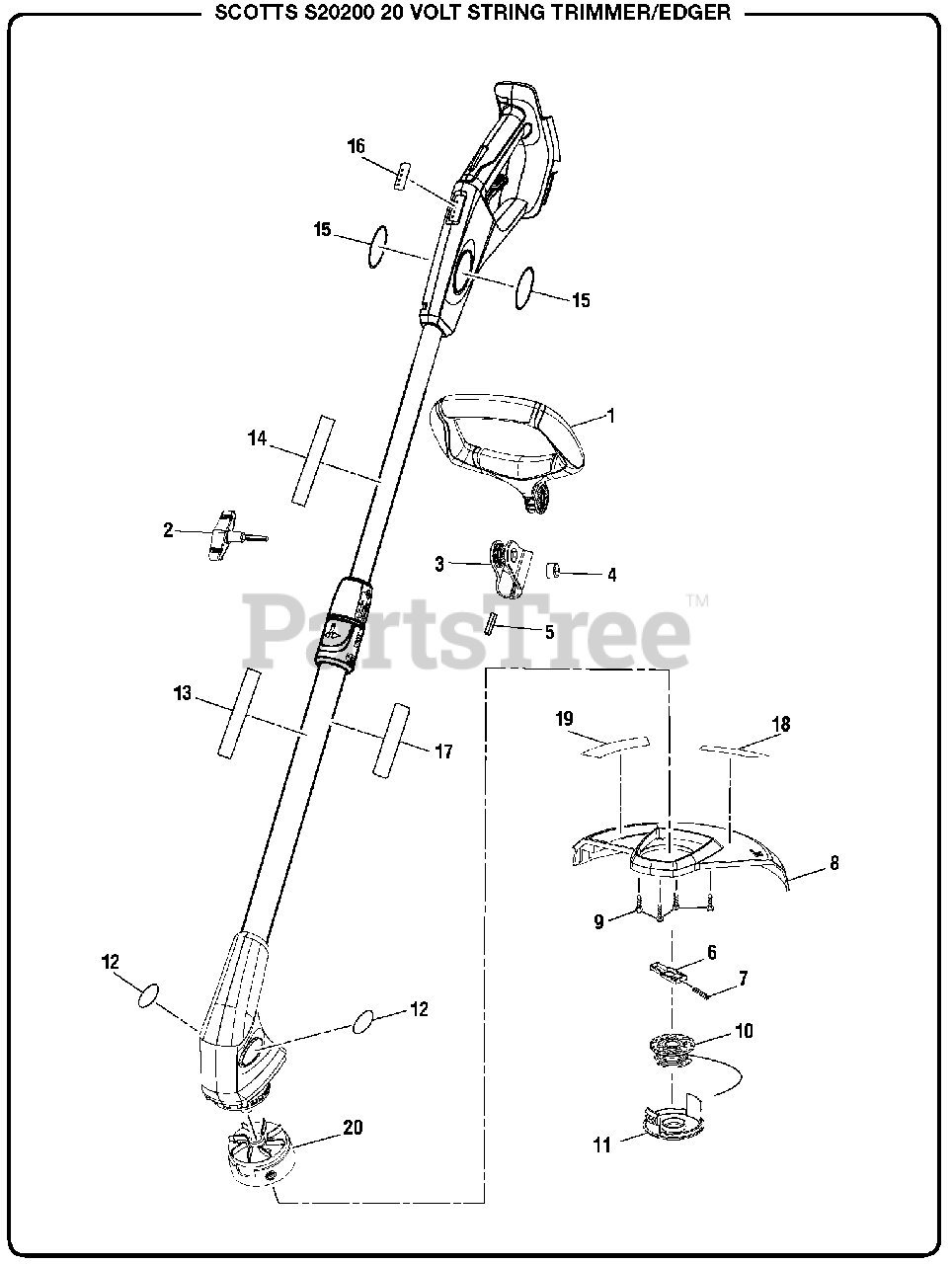

General Assembly Parts Diagram

  • Title

1

Homelite 526990001

Front Handle

$

$

Not available

2

Homelite 527539001

Knob

$

$

Not available

3

Homelite 310921002

Clamp

Note: (Inc. Key Nos. 4 and 5)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 680196006

Hex Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 570112002

Rubber Plate

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 310920002

Slider Assembly

Note: (Inc. Key No. 7)

$1.49

$

In Stock, only 4 left!

0

7

Homelite 679034001

Spring

$1.49

$

In Stock, Qty 15

0

8

Homelite 307082001

Guard Assembly

Note: (Inc. Key Nos. 18-19)

$

$

Not available

9

Homelite 660208052

Screw (M4 x 16 mm)
(Superseded to 089041033087)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 310917007

Spool Assembly

$4.49

$

In Stock, only 2 left!

0

11

Homelite 522994001

Spool Cover

$1.49

$

In Stock, Qty 9

0

12

Homelite 941112020

Motor Housing Logo Label

$

$

Not available

13

Homelite 940657135

Warning Icon Label

$

$

Not available

14

Homelite 941588042

Data Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 941112018

Handle Logo Label

$

$

Not available

16

Homelite 941836001

Fuel Gauge Label

$

$

Not available

17

Homelite 941107012

Warning Label (French/Spanish)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 941620004

No Bump Label

$

$

Not available

19

Homelite 941649002

Cutting Length Label

$

$

Not available

20

Homelite 311155003

Spool Base w/Slider Assembly

Note: (Inc. Key Nos. 6-7)

$3.99

$

Usually ships in 3-7 days

0

Homelite 990000807

Operator's Manual

Note: NOT SHOWN

$

$

Not available
