S 20600 - Scotts Hedge Trimmer, 20 Volt General Assembly Parts Diagram

Hedge Trimmer, 20 Volt

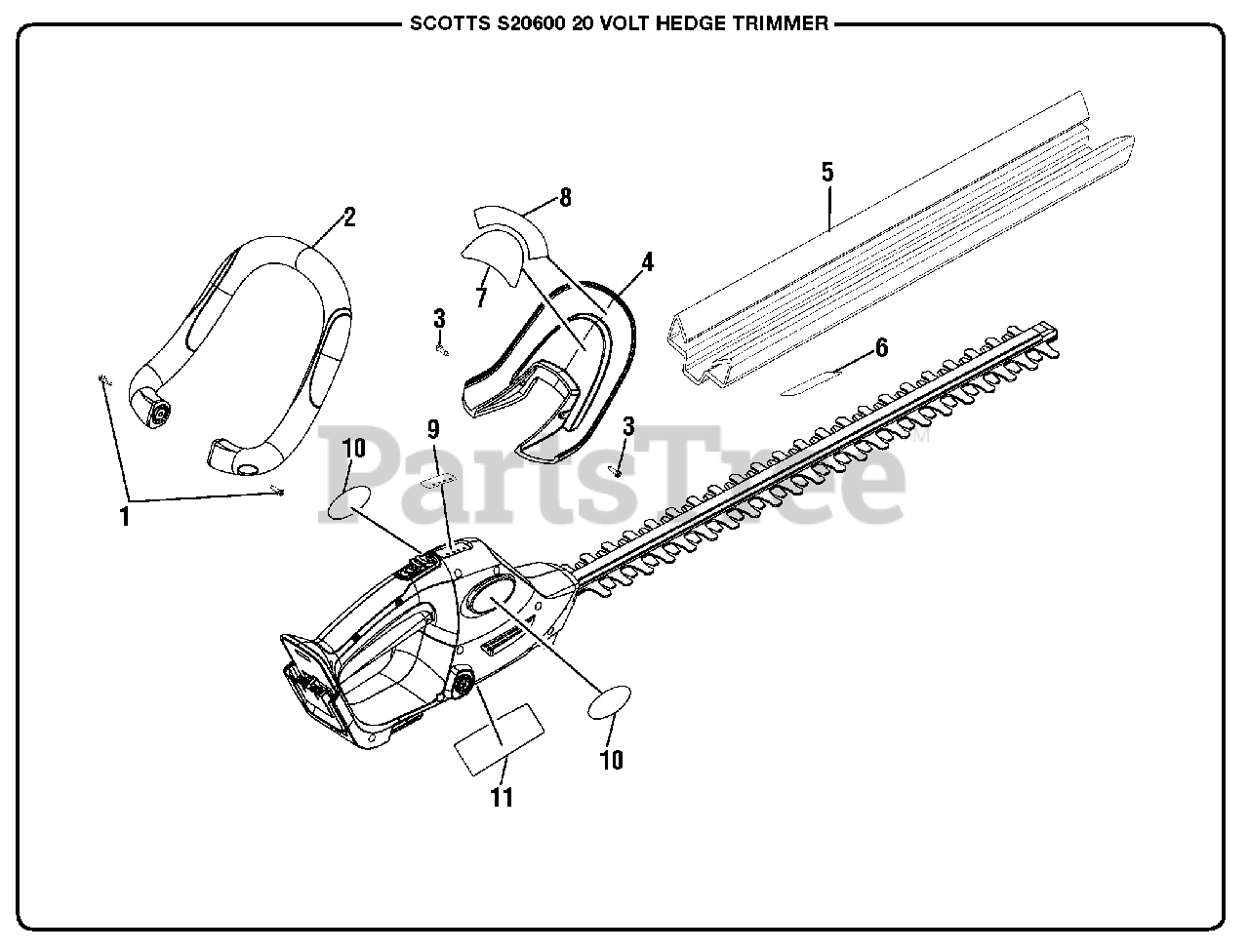

General Assembly Parts Diagram

  • Title

1

Homelite 660137010

Screw (M4 x 28 mm)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 527508001

Handle

$16.99

$

Usually ships in 3-7 days

0

3

Homelite 660203087

Screw (M3 x 12 mm)

$

$

Not available

4

Homelite 307116001

Guard Assembly

Note: (Inc. Key Nos. 7-8)

$

$

Not available

5

Homelite 525406001

Scabbard

$8.99

$

Usually ships in 3-7 days

0

6

Homelite 941133002

Blade Strap Label

$

$

Not available

7

Homelite 941132004

Warning Label

$

$

Not available

8

Homelite 941132003

Icon Label

$

$

Not available

9

Homelite 941836001

Fuel Gauge Label

$

$

Not available

10

Homelite 941112018

Logo Label

$

$

Not available

11

Homelite 941588056

Data Label

$

$

Not available

Homelite 990000776

Operator's Manual

Note: NOT SHOWN

$

$

Not available
