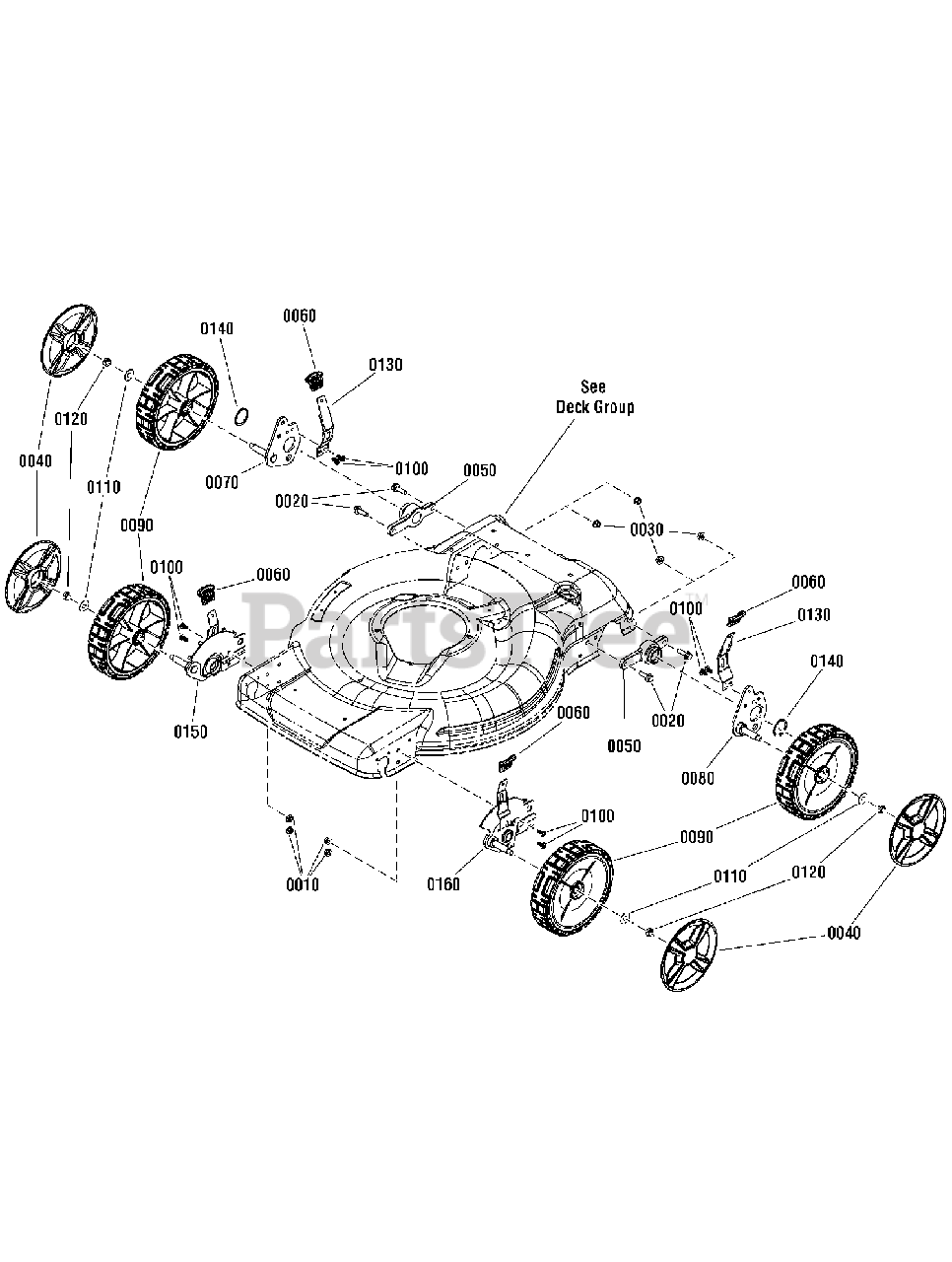

S 22675 (7800828) - Snapper 22" Walk-Behind Mower, 6.75hp Wheel & 4PT HOC, Push Parts Diagram

22" Walk-Behind Mower, 6.75hp

Wheel & 4PT HOC, Push Parts Diagram

  • Title

0010

Snapper 7091584

NUT, Hex Flange Lock, 1/4C YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0020

Snapper 7091591

BOLT, Hex Flange Lock, 5/16C X 1 GR5 YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

0030

Snapper 7091601

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0040

Snapper 7101350

HUBCAP, 8"&9" Spoked Wheel, SN Cool Gray
(Superseded to 7101350YP)

$10.99

$

In Stock, Qty 6

0

0050

Snapper 7103290

HOLDER, Bearing, RWD
(Superseded to 7103290YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 7103793

GRIP, Height Latch - Black (1.7" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 7501516

REAR AXLE ASSEMBLY, HOC, RH
(Superseded to 7501516YP)

$13.99

$

Usually ships in 2-12 days

0

0080

Snapper 7501518

REAR AXLE ASSEMBLY, HOC, LH
(Superseded to 7501518YP)

$14.99

$

Usually ships in 2-12 days

0

0090

Snapper 7502544

ASSEMBLY, Wheel, 8X2, W/Bushing
(Superseded to 7502544YP)

$38.99

$

In Stock, only 2 left!

0

0100

Snapper 7900067

SCREW, Pan Head Self Tapping, Torx, 1/4-20 X .550"
(Superseded to 703961)

$4.49

$

In Stock, Qty 15

0

0110

Snapper 722604

WASHER, Flat, .031" X .382" ID.X1.00" OD
(Superseded to 703966)

$4.49

$

In Stock, only 3 left!

0

0120

Snapper 7091585

NUT, Hex Lock, 3/8C GR5 YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

0130

Snapper 7103550

LEVER, Rear, 4P-HOC
(Superseded to 7103550YP)

$8.99

$

Usually ships in 2-12 days

0

0140

Snapper 7900010

SNAP RING, 1-3/8, HD
(Superseded to 7900010YP)

$4.49

$

In Stock, only 1 left!

0

0150

Snapper 7600189

ASSEMBLY, HOC, RF, Push
(Superseded to 7600189YP)

$

$

Not available

0160

Snapper 7600190

ASSEMBLY, HOC, LF, Push
(Superseded to 7600190YP)

$38.99

$

Usually ships in 2-12 days

0
