S 25 - Poulan Pro Chainsaw HANDLE HOUSING Parts Diagram

Chainsaw

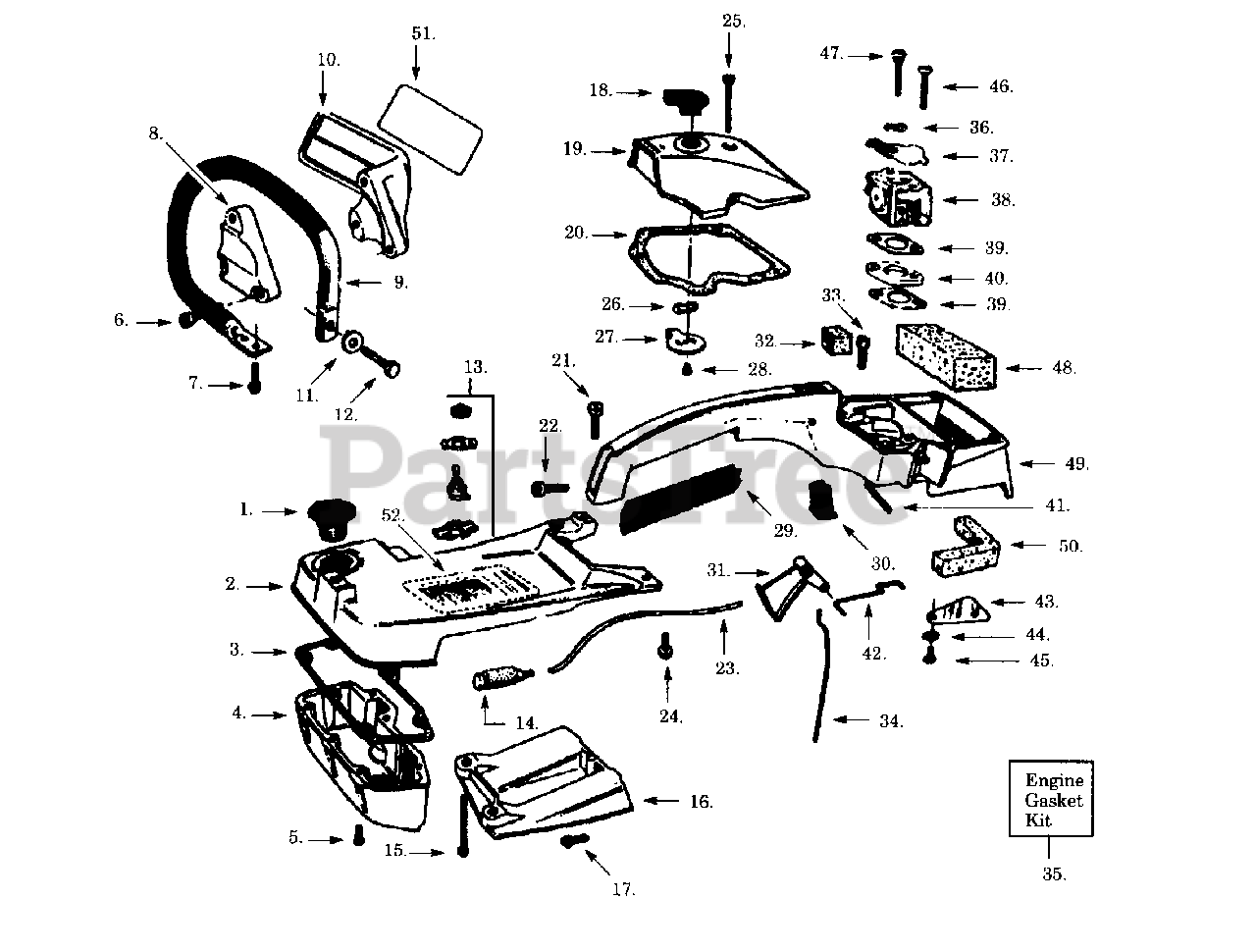

HANDLE HOUSING Parts Diagram

  • Title

1

Poulan 530010123

Fuel Cap Ass'y.

$

$

Not available

2

Poulan 530012259

Fuel Tank Top

$

$

Not available

3

Poulan 530019047

Fuel Tank Gasket

Note: Included in Gasket Set.

$

$

Not available

4

Poulan 530012260

Fuel Tank Bottom

$

$

Not available

5

Poulan 530015138

Screw

$2.49

$

In Stock, only 1 left!

0

6

Poulan 530015509

Screw

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530024049

Handguard Cap

$

$

Not available

9

Poulan 530022310

Front Handlebar

$

$

Not available

10

Poulan 530024089

Handguard

$

$

Not available

11

Poulan 530015151

Washer

$

$

Not available

12

Poulan 530001648

Screw

$

$

Not available

13

Poulan 530023573

Start/Stop Switch

$

$

Not available

14

Poulan 530014199

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

15

Poulan 530015152

Screw

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 530011147

Cylinder Shield

$18.99

$

Usually ships in 3-10 days

0

17

Poulan 530001709

Screw

$4.99

$

In Stock, Qty 7

0

18

Poulan 530023376

Choke Knob

$

$

Not available

19

Poulan 530011558

Carburetor Cover

$27.99

$

Usually ships in 3-10 days

0

20

Poulan 530019055

Carb. Cover Gasket

$

$

Not available

21

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 530015247

Screw

$

$

Not available

23

Poulan 530069216

Line Kit (Bulk 8133)

$6.49

$

In Stock, Qty 20+

0

24

Poulan 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530015144

Screw

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 530015147

Wave Washer

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530023876

Choke Lever

$

$

Not available

28

Poulan 530015407

Screw

$

$

Not available

29

Poulan 530024111

Handle Grip

$

$

Not available

30

Poulan 530023362

Oil Pump Button

$

$

Not available

31

Poulan 530024672

Trigger

$

$

Not available

32

Poulan 530023373

Throttle Wire Boot

$

$

Not available

33

Poulan 530001636

Screw

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 530023361

Oil Pump Push Rod

$

$

Not available

35

Poulan 530069023

Engine Gasket Kit

$

$

Not available

36

Poulan 530015146

Wave Washer

$

$

Not available

37

Poulan 530023841

Choke Shutter

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 530035265

Carburetor

$

$

Not available

39

Poulan 530019045

Carb. Gasket

$

$

Not available

40

Poulan 530023872

Spacer

$

$

Not available

41

Poulan 530015145

Trigger Pin

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530023372

Throttle Rod

$

$

Not available

43

Poulan 530023366

Reed

$

$

Not available

44

Poulan 530023367

Washer

$

$

Not available

45

Poulan 530015139

Screw

$

$

Not available

46

Poulan 530015257

Screw

$

$

Not available

47

Poulan 530015256

Screw

$

$

Not available

48

Poulan 530023369

Air Filter

$

$

Not available

49

Poulan 530011548

Handle & Carb. Hsg.

$

$

Not available

50

Poulan 530023388

Dust Seal

$

$

Not available

51

Poulan 530026849

Handguard Decal

$

$

Not available

52

Poulan 530027939

Instruction Decal

$

$

Not available
