S 2822 (7800960-00) - Snapper Hedge Trimmer Engine Group Parts Diagram

Hedge Trimmer

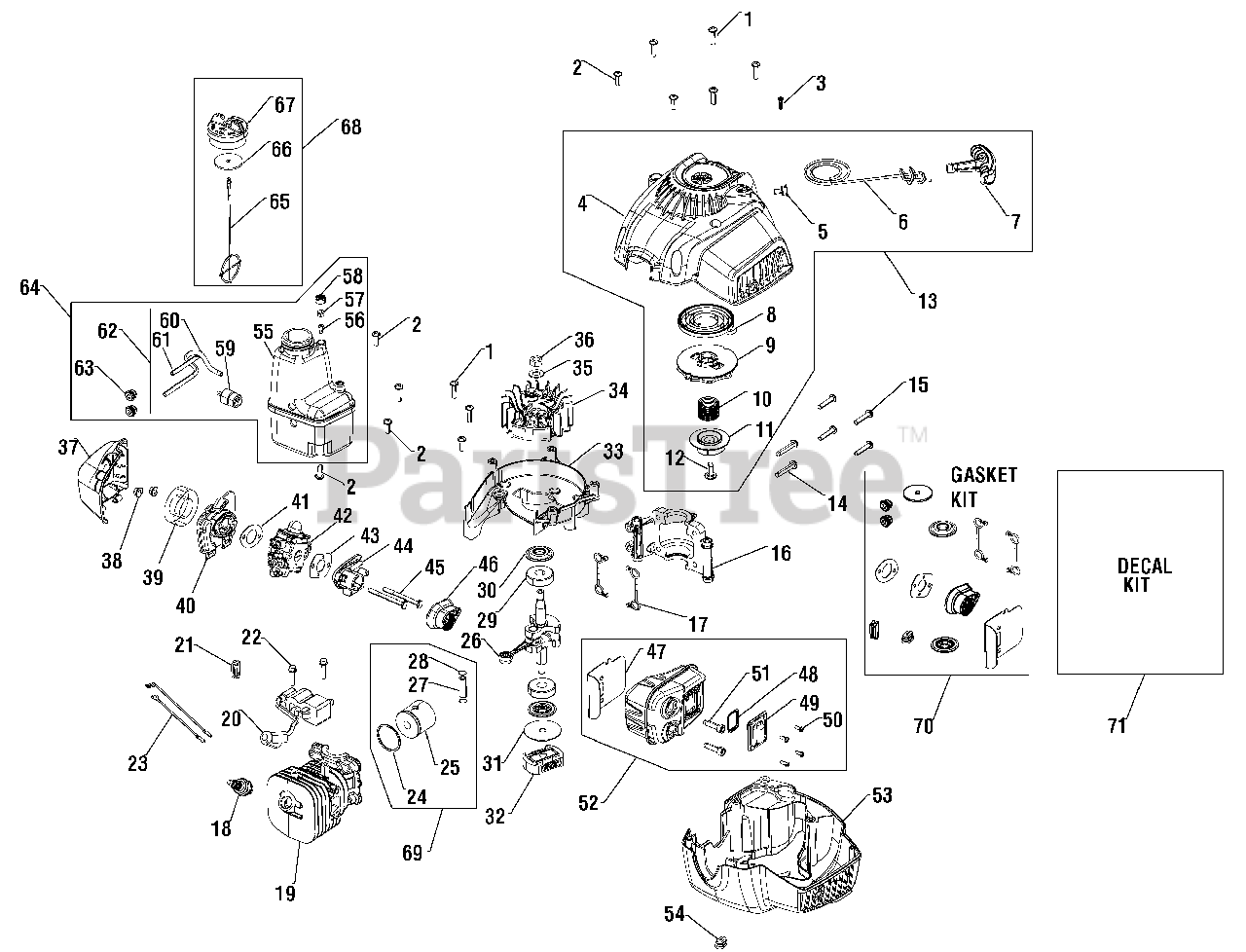

Engine Group Parts Diagram

  • Title

1

Snapper 705610

Screw

$10.99

$

Usually ships in 2-12 days

0

2

Snapper 705609

Screw

$10.99

$

In Stock, only 3 left!

0

3

Snapper 705612

Screw

$10.99

$

Usually ships in 2-12 days

0

4

Engine Housing Top

$

$

Not available

5

Eyelet, Starter Rope

$

$

Not available

6

Rope, Starter

$

$

Not available

7

Handle, Starter

$

$

Not available

8

Recoil, Spring

$

$

Not available

9

Starter Pulley

$

$

Not available

10

Spring, Starter

$

$

Not available

11

Starter Hub

$

$

Not available

12

Screw

$

$

Not available

13

Snapper 705631

Starter Housing Assy.

Note: (Incl. Ref. Nos. 4, 5, 6, 7, 8, 9, 10, 11 & 12)

$85.99

$

Usually ships in 2-12 days

0

14

Screw

$

$

Not available

15

Snapper 705451

Screw

$2.49

$

Usually ships in 2-12 days

0

16

Cap, Bearing

$

$

Not available

17

Seal, Cylinder

$

$

Not available

18

Snapper 705613

Spark Plug (RCJ-6Y)

$7.49

$

Usually ships in 2-12 days

0

19

Kit -Cyl./Flywheel Scroll

Note: (Incl. Ref. No. 33)

$

$

Not available

20

Ignition, Module

$

$

Not available

21

Snapper 705614

Grommet, Cable

$6.49

$

Usually ships in 2-12 days

0

22

Snapper 705505

Screw

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 705615

Coil Wire

$10.99

$

Usually ships in 2-12 days

0

24

Piston Ring

$

$

Not available

25

Piston

$

$

Not available

26

Kit - Crankshaft Assy.

$

$

Not available

27

Piston Pin

$

$

Not available

28

Retainer, Wrist Pin

$

$

Not available

29

Ball Bearing 6201 C4

$

$

Not available

30

Seal, Crankshaft

$

$

Not available

31

Gasket, Clutch

$

$

Not available

32

Kit - Clutch

Note: (Incl. Ref. No. 31)

$

$

Not available

33

Kit - Cyl./Flywheel Scroll

Note: (Incl. Ref. No. 19)

$

$

Not available

34

Flywheel Assembly

$

$

Not available

35

Washer

$

$

Not available

36

Nut

$

$

Not available

37

Snapper 705616

Air Filter Cover

$11.99

$

In Stock, only 2 left!

0

38

Snapper 705551

Nut

$

$

Currently unavailable

39

Snapper 705617

Foam

$9.99

$

Usually ships in 2-12 days

0

40

Snapper 705618

Air Filter Support

$12.99

$

Usually ships in 2-12 days

0

41

Snapper 705619

Gasket

$9.99

$

Usually ships in 2-12 days

0

42

Snapper 705620

Kit - Carburetor

Note: (Incl. Ref. No. 41 & 43)

$108.99

$

Usually ships in 2-12 days

0

43

Snapper 705621

Gasket

$6.49

$

Usually ships in 2-12 days

0

44

Snapper 705622

Plate Carb

$10.99

$

Usually ships in 2-12 days

0

45

Snapper 705623

Screw

$5.49

$

Usually ships in 2-12 days

0

46

Snapper 705624

Boot, Carb

$33.99

$

Usually ships in 2-12 days

0

47

Snapper 705625

Gasket

$6.99

$

Usually ships in 2-12 days

0

48

Screen, Spark Arrestor

$

$

Not available

49

Hood, Exhaust Outlet

$

$

Not available

50

Snapper 705446

Screw

$4.99

$

Usually ships in 2-12 days

0

51

Snapper 705510

Bolt

$3.99

$

Usually ships in 2-12 days

0

52

Snapper 705626

Muffler Assembly

Note: (Incl. Ref. No. 47, 48, 49, 50 & 51)

$45.99

$

Usually ships in 2-12 days

0

53

Engine Housing, Lower

$

$

Not available

54

Snapper 705627

Grommet

$10.99

$

Usually ships in 2-12 days

0

55

Fuel Tank

$

$

Not available

56

Valve

$

$

Not available

57

Foam

$

$

Not available

58

Cover, Valve

$

$

Not available

59

Fuel Filter

$

$

Not available

60

Fuel Tube, Inlet

$

$

Not available

61

Fuel Tube, Outlet

$

$

Not available

62

Kit - Fuel Line

Note: (Incl. Ref. Nos. 59, 60 & 61)

$

$

Not available

63

Grommet, Fuel Tube

$

$

Not available

64

Snapper 705628

Kit - Fuel Tank Assy.

Note: (Incl. Ref. Nos. 55, 56, 57, 58, 59, 60, 61, 62, 63 & 68)

$50.99

$

Usually ships in 2-12 days

0

65

Retainer

$

$

Not available

66

Gasket

$

$

Not available

67

Fuel Cap

$

$

Not available

68

Snapper 705629

Fuel Cap Assembly

Note: (Incl. Ref. Nos. 65, 66, 67)

$6.49

$

In Stock, only 1 left!

0

69

Piston Kit

Note: (Incl. Ref. Nos. 24, 25, 27, 28)

$

$

Not available

70

Snapper 705630

Kit - Gasket

$51.99

$

Usually ships in 2-12 days

0

71

Snapper 705632

Kit - Decal

$14.99

$

Usually ships in 2-12 days

0
