S 2822 (7800960-00) - Snapper Hedge Trimmer Trimmer & Gear Box Group Parts Diagram

Hedge Trimmer

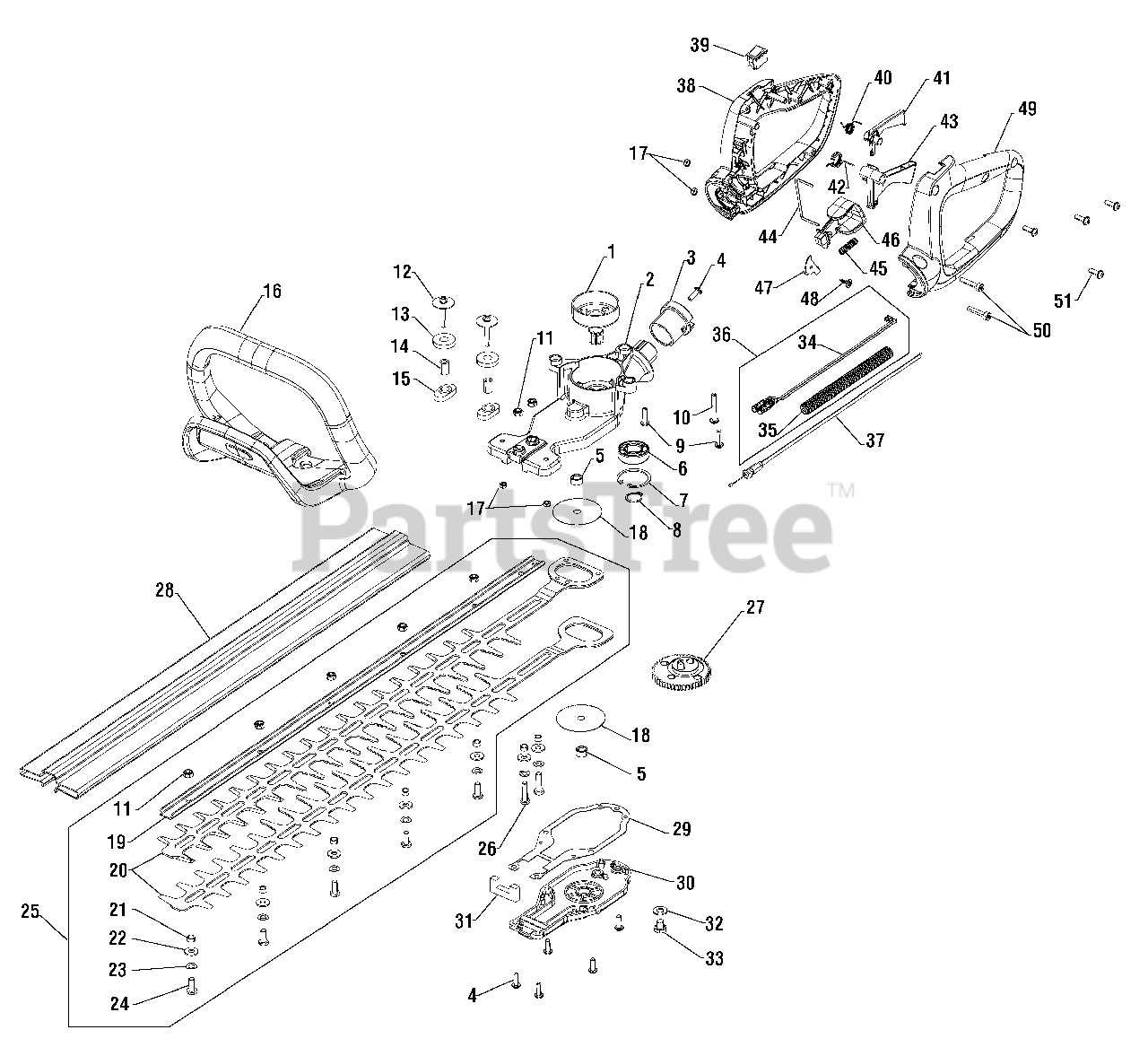

Trimmer & Gear Box Group Parts Diagram

  • Title

1

Snapper 705566

Clutch Drum

$37.99

$

Usually ships in 2-12 days

0

2

Kit - Gear Box

Note: (Incl. Ref. Nos. 1, 5, 6, 7, 8, 30, 32 & 33)

$

$

Not available

3

Snapper 705567

Handle Bush

$9.99

$

Usually ships in 2-12 days

0

4

Snapper 705568

Screw

$9.99

$

Usually ships in 2-12 days

0

5

Snapper 705569

Bush

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 705570

Ball Bearing 6003 C3

$12.99

$

Usually ships in 2-12 days

0

7

C Ring

$

$

Not available

8

C Ring

$

$

Not available

9

Snapper 705571

Screw

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 705572

Screw

$10.99

$

Usually ships in 2-12 days

0

11

Nut

$

$

Not available

12

Snapper 705573

Screw

$10.99

$

Usually ships in 2-12 days

0

13

Snapper 705574

Shock Absorption, Upper

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 705575

Bush

$10.99

$

Usually ships in 2-12 days

0

15

Snapper 705576

Shock Absorption, Lower

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 705577

Handle Front

$60.99

$

Usually ships in 2-12 days

0

17

Snapper 705578

Nut

$9.49

$

Usually ships in 2-12 days

0

18

Snapper 705579

Gasket

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 705580

Blade Support

$36.99

$

Usually ships in 2-12 days

0

20

Snapper 705581

Blade

$137.99

$

In Stock, only 1 left!

0

21

Snapper 705582

Bush

$9.49

$

Usually ships in 2-12 days

0

22

Snapper 705583

Washer

$9.49

$

Usually ships in 2-12 days

0

23

Snapper 705584

Wave Washer

$5.99

$

Usually ships in 2-12 days

0

24

Snapper 705585

Screw

Note: (Incl. Ref. Nos. 11, 19, 20, 21, 22, 23 & 24)

$10.99

$

Usually ships in 2-12 days

0

25

Snapper 705586

Blade Assembly

$295.99

$

Usually ships in 2-12 days

0

26

Snapper 705587

Screw

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 705588

Kit - Gear Assembly

$

$

Not available

28

Snapper 705589

Blade Cover

$17.99

$

Usually ships in 2-12 days

0

29

Snapper 705590

Gasket

$12.99

$

Usually ships in 2-12 days

0

30

Snapper 705591

Cover, Gear Box

$30.99

$

Usually ships in 2-12 days

0

31

Snapper 705592

Felt

$6.49

$

Usually ships in 2-12 days

0

32

Snapper 705593

Washer

$10.99

$

Usually ships in 2-12 days

0

33

Snapper 705594

Screw

$10.99

$

Usually ships in 2-12 days

0

34

Coil Wire

$

$

Not available

35

Flexible Conduit

$

$

Not available

36

Ignition Cable Assembly

Note: (Incl. Ref. Nos. 34 & 35)

$

$

Not available

37

Snapper 705595

Throttle Cable

$11.99

$

In Stock, only 3 left!

0

38

Snapper 705596

Handle, Right

$22.99

$

Usually ships in 2-12 days

0

39

Snapper 705597

Switch

$10.99

$

Usually ships in 2-12 days

0

40

Snapper 705598

Spring, Release

$8.49

$

Usually ships in 2-12 days

0

41

Snapper 705599

Trigger, Release

$10.99

$

Usually ships in 2-12 days

0

42

Snapper 705600

Spring, Throttle

$10.99

$

Usually ships in 2-12 days

0

43

Snapper 705601

Trigger, Throttle

$6.49

$

Usually ships in 2-12 days

0

44

Snapper 705602

Rotate Lock, Linkage

$9.49

$

Usually ships in 2-12 days

0

45

Snapper 705603

Spring, Rotate Release

$10.99

$

Usually ships in 2-12 days

0

46

Snapper 705604

Bar Rotate, Release

$9.49

$

Usually ships in 2-12 days

0

47

Snapper 705605

Plate, Cable

$9.49

$

Usually ships in 2-12 days

0

48

Snapper 705606

Screw

$10.99

$

Usually ships in 2-12 days

0

49

Snapper 705607

Handle, Left

$14.99

$

Usually ships in 2-12 days

0

50

Snapper 705608

Screw

$9.99

$

Usually ships in 2-12 days

0

51

Snapper 705609

Screw

$10.99

$

In Stock, only 3 left!

0

--

Manual

$

$

Not available
