S-4 (990761) - Homelite 21" Snow Thrower, 4hp Handles and Controls Group (3840I05) Parts Diagram

21" Snow Thrower, 4hp

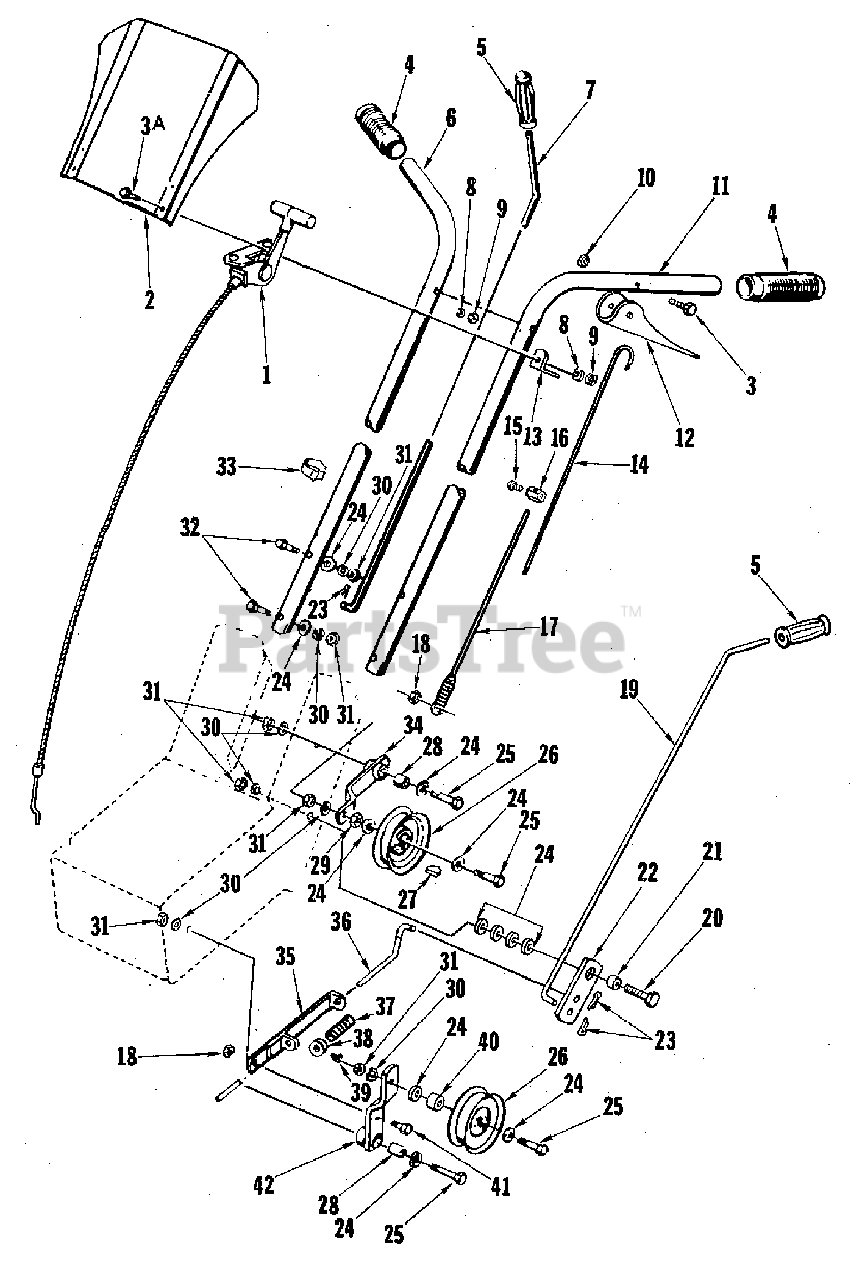

Handles and Controls Group (3840I05) Parts Diagram

  • Title

1

Simplicity LM-01611-77

THROTTLE CONTROL ASSEMBLY

$

$

Not available

2

Simplicity LM-01611-71

HOUSING ASSEMBLY

$

$

Not available

3

Simplicity LM-09182-40

SCREW, Hex Head, 1/4-20 x 1-1/2

$

$

Not available

3A

Simplicity LM-09231-88

SCREW, Hex Head, 1/4-20 x 1/2

$

$

Not available

4

Simplicity LM-01065-58

GRIP

$

$

Not available

5

Simplicity LM-01065-72

GRIP

$

$

Not available

6

Simplicity LM-01765-67

HANDLE, Right

$

$

Not available

7

Simplicity LM-01611-59

REVERSE ROD ASSEMBLY

$

$

Not available

7

Simplicity LM-09160-18

PIN, Roll, 3/32 x 5/8

$

$

Not available

8

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

9

Simplicity LM-09157-41

NUT, Hex, 1/4-20

$

$

Not available

10

Simplicity LM-09233-58

NUT, Hex, 1/4-20

$

$

Not available

11

Simplicity LM-01765-66

HANDLE, Left

$

$

Not available

12

Simplicity LM-01180-56

GRIP, Clutch

$

$

Not available

13

Simplicity LM-01541-19

SPRING, Clip

$

$

Not available

14

Simplicity LM-01610-90

EXTENSION, Spring

$

$

Not available

15

Simplicity LM-09160-79

SCREW, Round Head, 10-24 x 3/8

$

$

Not available

16

Simplicity LM-01610-92

CLAMP, Wire

$

$

Not available

17

Simplicity LM-01067-78

SPRING ASSEMBLY

$

$

Not available

18

Simplicity LM-09234-28

NUT, Hex, 3/8-16

$

$

Not available

19

Simplicity LM-01611-63

ROD

$

$

Not available

20

Simplicity LM-01084-18

SCREW

$

$

Not available

21

Simplicity LM-81612-15

BUSHING

$

$

Not available

22

Simplicity LM-01611-69

BAR, Clutch

$

$

Not available

23

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

24

Simplicity LM-09173-78

WASHER, Plain, 3/8"

$

$

Not available

25

Simplicity LM-09193-61

SCREW, Hex Head, 3/8-16 x 1-3/4

$

$

Not available

26

Simplicity LM-01545-34

PULLEY, Idler

$

$

Not available

27

Simplicity LM-09051-23

KEY

$

$

Not available

28

Simplicity LM-81710-73

RACE, Inner Bearing

$

$

Not available

29

Simplicity LM-09287-31

NUT, Hex, 3/8-16

$

$

Not available

30

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

31

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

32

Simplicity LM-09174-02

SCREW, Hex Head, 3/8-16 x 2

$

$

Not available

33

Simplicity LM-80611-08

CLIP, Cable

$

$

Not available

34

Simplicity LM-01062-04

LEVER ASSEMBLY, Idler

$

$

Not available

35

Simplicity LM-80815-03

GUIDE ASSEMBLY, Clutch Rod

$

$

Not available

36

Simplicity LM-01068-29

ROD, Clutch Rotor

$

$

Not available

37

Simplicity LM-81910-45

SPRING

$

$

Not available

38

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

39

Simplicity LM-09038-07

SCREW, Set, Square Head, 1/4-20 x 3/8

$

$

Not available

40

Simplicity LM-01541-77

BUSHING

$

$

Not available

41

Simplicity LM-09193-57

SCREW, Hex Head, 3/8-16 x 7/8

$

$

Not available

42

Simplicity LM-01062-01

LEVER ASSEMBLY, idler

$

$

Not available
