S-4 (990761) - Homelite 21" Snow Thrower, 4hp Rotor Body and Frame Group (3840I04) Parts Diagram

21" Snow Thrower, 4hp

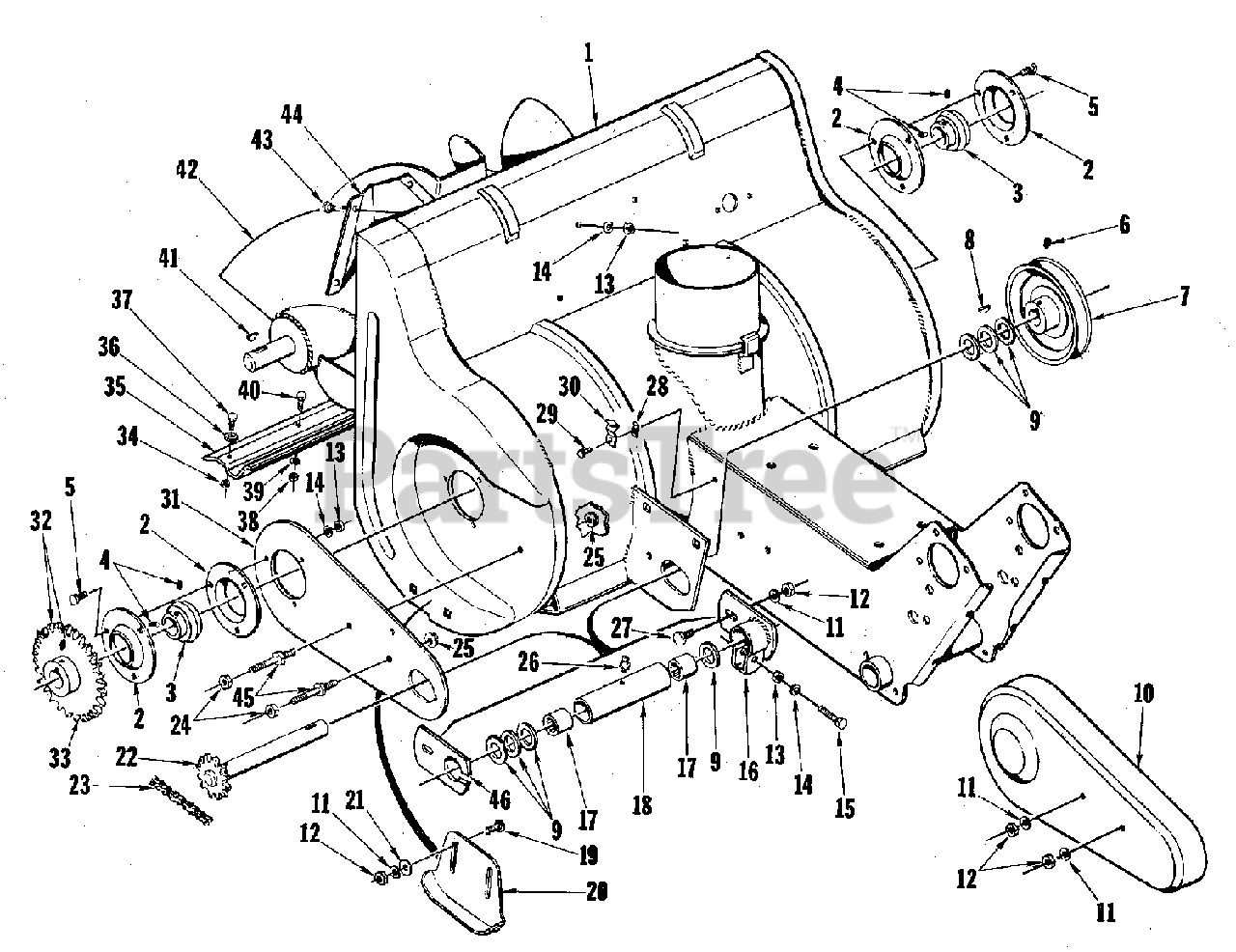

Rotor Body and Frame Group (3840I04) Parts Diagram

  • Title

1

Simplicity LM-01611-80

BODY, Frame Assembly

$

$

Not available

2

Simplicity LM-01610-69

FLANGE, Bearing

$

$

Not available

3

Simplicity LM-01067-32

CARTRIDGE, Bearing

$

$

Not available

4

Simplicity LM-09286-92

SCREW, Set, 1/4-28 x 1/4

$

$

Not available

5

Simplicity LM-09173-97

SCREW, Hex, 5/16-18 x 3/4

$

$

Not available

6

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

7

Simplicity LM-01066-63

PULLEY

$

$

Not available

8

Simplicity LM-09051-23

KEY

$

$

Not available

9

Simplicity LM-80610-12

WASHER

$

$

Not available

10

Simplicity LM-01708-65

GUARD, Chain

$

$

Not available

11

Simplicity LM-09169-65

WASHER, Lock, 3/8"

$

$

Not available

12

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

13

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

14

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

15

Simplicity LM-09199-33

SCREW, Hex Head, 5/16-18 x 1-1/2

$

$

Not available

16

Simplicity LM-01761-61

CLAMP, Housing

$

$

Not available

17

Simplicity LM-01542-58

BEARING, Needle

$

$

Not available

18

Simplicity LM-01068-26

HOUSING, Bearing

$

$

Not available

19

Simplicity LM-09160-61

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

20

Simplicity LM-01067-47

SKID

$

$

Not available

21

Simplicity LM-09173-78

WASHER, Flat

$

$

Not available

22

Simplicity LM-01068-27

SHAFT ASSEMBLY

$

$

Not available

23

Simplicity LM-01060-58

CHAIN

$

$

Not available

24

Simplicity LM-09234-28

NUT, Hex, 3/8-16

$

$

Not available

25

Simplicity LM-09283-52

NUT, Flange, Whiz Lock, 3/8-16

$

$

Not available

26

Simplicity LM-09211-33

FITTING, Grease

$

$

Not available

27

Simplicity LM-09077-31

SCREW, Hex, 3/8-16 x 1

$

$

Not available

28

Simplicity LM-09286-99

NUT, Tinnerman

$

$

Not available

29

Simplicity LM-09286-88

SCREW, Self Tapping, #10 x 1/2

$

$

Not available

30

Simplicity LM-01068-80

CLIP, Speed

$

$

Not available

31

Simplicity LM-01707-54

PLATE, Side

$

$

Not available

32

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

33

Simplicity LM-01066-53

SPROCKET, Rotor

$

$

Not available

34

Simplicity LM-09233-62

NUT, Hex, 5/16-18

$

$

Not available

35

Simplicity LM-01068-31

SCRAPER, Body

$

$

Not available

36

Simplicity LM-09173-77

WASHER, Plain, 1/4"

$

$

Not available

37

Simplicity LM-09252-05

SCREW, Hex, 5/16-18 x 5/8

$

$

Not available

38

Simplicity LM-09157-41

NUT, Hex, 1/4-20

$

$

Not available

39

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

40

Simplicity LM-09219-59

SCREW, Hex, Head, 1/4-20 x 5/8

$

$

Not available

41

Simplicity LM-01510-40

KEY

$

$

Not available

42

Simplicity LM-01068-23

ROTOR ASSEMBLY

$

$

Not available

43

Simplicity LM-09193-18

SCREW, Hex Head, 5/16-18 x 5/8

$

$

Not available

44

Simplicity LM-01067-74

DEFLECTOR

$

$

Not available

45

Simplicity LM-01067-71

STUD

$

$

Not available

46

Simplicity LM-01068-25

SUPPORT

$

$

Not available
