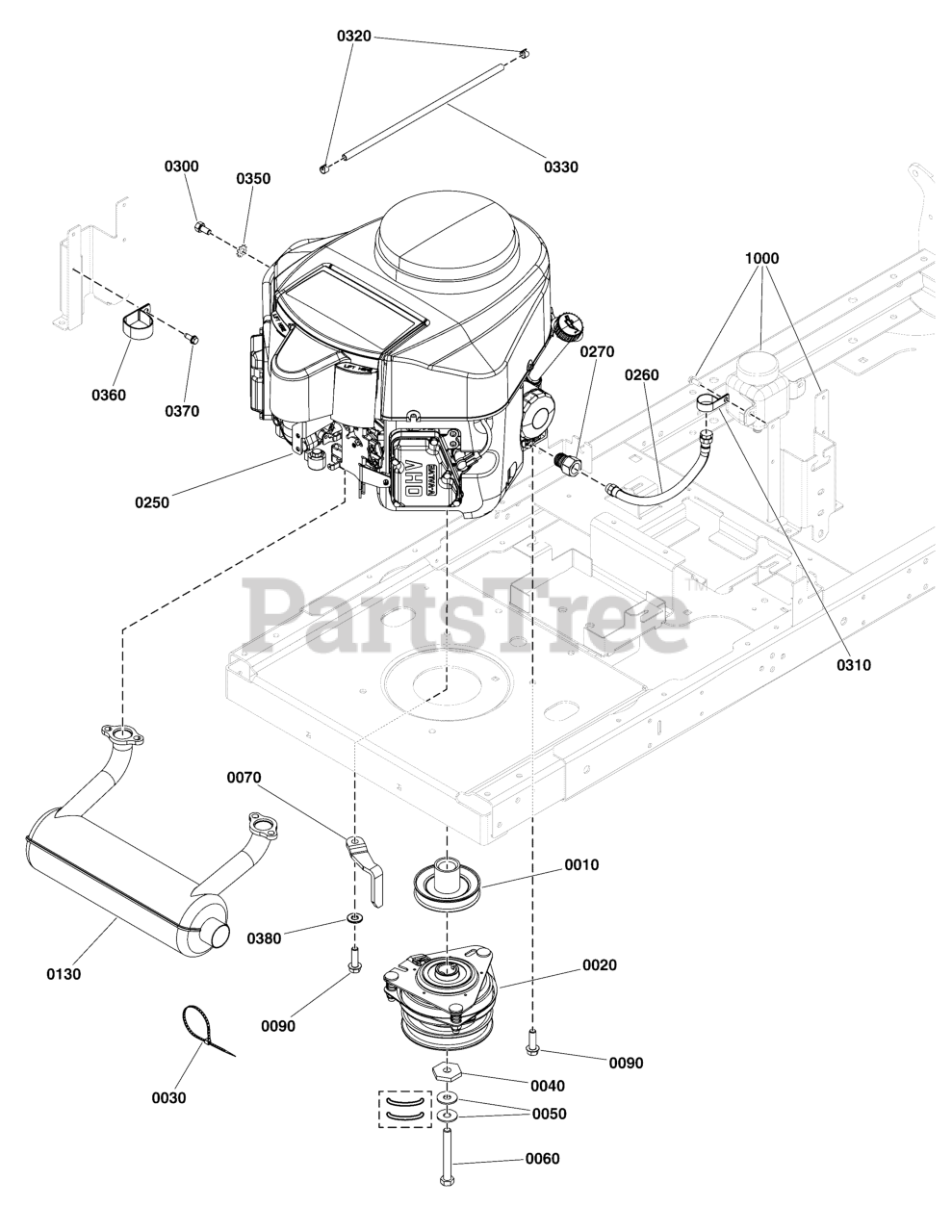

S 40 (5901738) - Snapper Pro S40 Series 48" Zero-Turn Mower, 22hp Kawasaki Engine & PTO Group - Kawasaki FR651V Parts Diagram

S40 Series 48" Zero-Turn Mower, 22hp Kawasaki

Engine & PTO Group - Kawasaki FR651V Parts Diagram

  • Title

0010

Snapper Pro 1757995

PULLEY ASSEMBLY, ENGINE - ZT
(Superseded to 1757995YP)

$39.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 1736105

CLUTCH, Electric, Mid Ogura
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

0030

TIE, 7, Self Lock

$

$

Not available

0040

Snapper Pro 1708264

WASHER, Hex, .453 I.D. x 1-1/2"
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 6

0

0050

Snapper Pro 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

Note: -

$4.49

$

In Stock, only 1 left!

0

0060

Snapper Pro 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP
(Superseded to 1960649SM)

Note: (Torque clutch mounting bolt to 45-50 ft-lbs (54-68 Nm)

$7.49

$

In Stock, only 1 left!

0

0070

Snapper Pro 1737421A

GUIDE, Belt Retainer, Clutch
(Superseded to 1737421AYP)

$12.99

$

In Stock, only 1 left!

0

0090

Snapper Pro 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 15-17 ft-lbs (20-23 Nm)

$3.49

$

Usually ships in 2-12 days

0

0130

Snapper Pro 1758352

MUFFLER, ZT (KAWI FR651/691/730)
(Superseded to 1758352YP)

$214.99

$

Usually ships in 2-12 days

0

0250

ENGINE, KAWASAKI 21.5 FR651

Note: (Refer to Note: *)

$

$

Not available

0260

Snapper Pro 1726498

HOSE-OIL DRAIN .375ID 16.5L
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

0270

Snapper Pro 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

0310

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0320

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, only 2 left!

0

0330

Snapper Pro 5050831X17

HOSE 1/4 FUEL 17.00

$

$

Not available

0350

Snapper Pro 80003618

WSHR 5/16EXT TOOTH LOCK TYPE A ZINC/CLR
(Superseded to 703138)

$3.99

$

In Stock, Qty 10

0

0360

Snapper Pro 5023263

CLAMP, VINYL INSULATED, 1.75
(Superseded to 5023263SM)

Note: (Secures engine fuel filter)

$3.49

$

Usually ships in 2-12 days

0

0370

Snapper Pro 80004190

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

0380

Snapper Pro 80003621

WSHR,.406X.875X.083FLT,TYPE A,ZINC/CLEAR
(Superseded to 703878)

Note: -

$3.99

$

In Stock, Qty 20+

0

1000

Refer to: Hydraulic Group

$

$

Not available
