S 427 (967334201) - Husqvarna Log Splitter (2015-01) CYLINDER Parts Diagram

Log Splitter

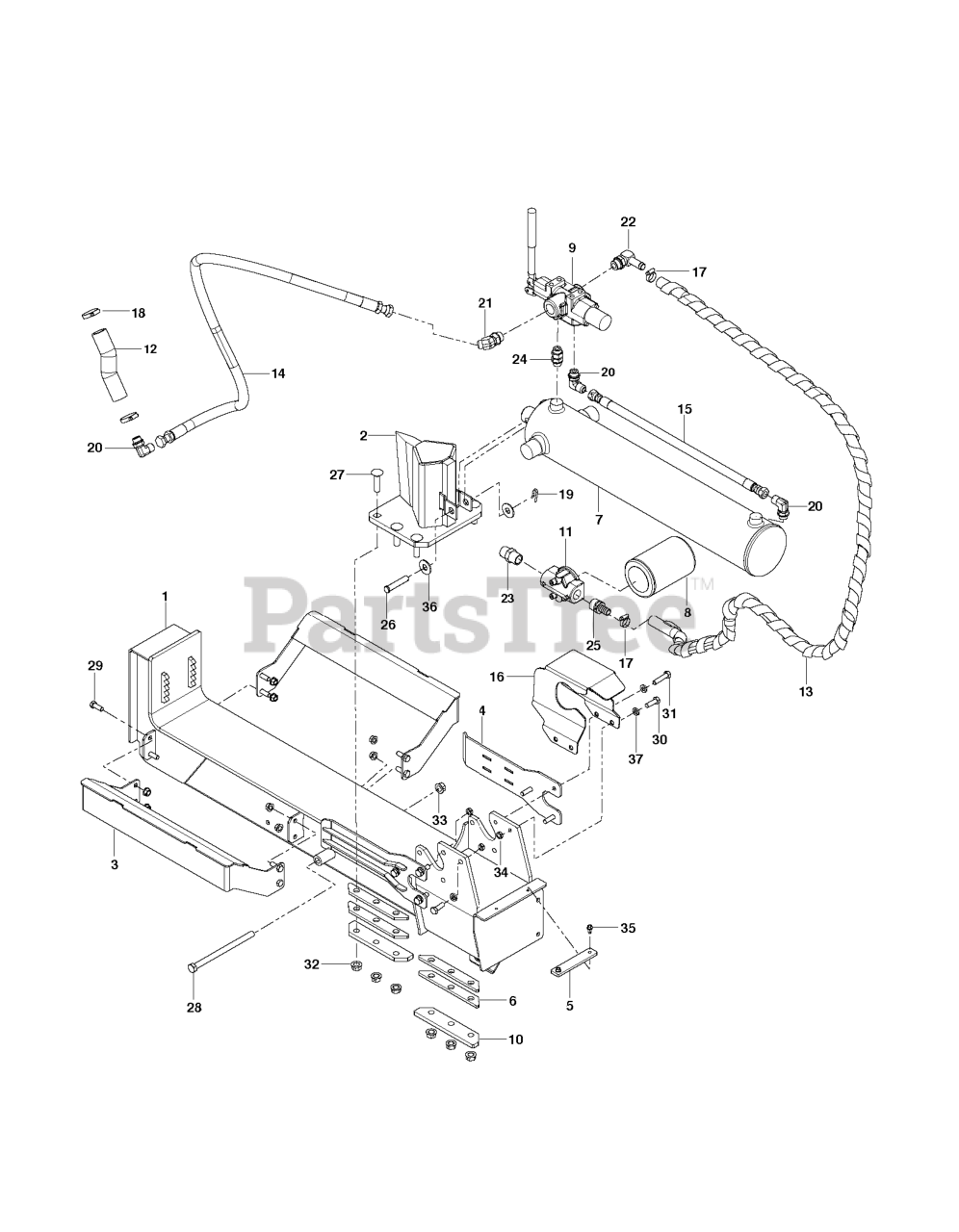

CYLINDER Parts Diagram

  • Title

7

Husqvarna 588011501

CYLINDER CYLINDER, SPLITTER -

$910.99

$

Usually ships in 3-10 days

0

37

Husqvarna 588128001

WASHER WSHR-LK .31X.097 HVY YW

$

$

Not available

12

Husqvarna 588012602

HOSE HOSE, HYD - SUCTION 6.75"

$31.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588013802

SPACER SPACER, WEDGE

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 588064705

BOLT BOLT HEX .31-18 X 1.00 GR

$

$

Not available

34

Husqvarna 588013103

NUT NUT, LK-TOP-FLG .31-18 YWZ

$

$

Not available

1

Husqvarna 588010501

BEAM BEAM-27&34T SPLITTER

$

$

Not available

29

Husqvarna 588064708

BOLT BOLT HEX .38-16 X 1.00 GR

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 588011001

CLAMP CLAMP, COUSHIONED STEEL

$

$

Not available

18

Husqvarna 588011002

CLAMP CLAMP, CUSHIONED STEEL

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 588031601

CONTROL VALVE CONTROL-SPLITTER

$397.99

$

Usually ships in 3-10 days

0

33

Husqvarna 588013104

NUT NUT, LK-TOP-FLG .38-16 YWZ

$

$

Not available

10

Husqvarna 588013501

RETAINER, WEDGE

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588013801

SPACER SPACER, CYLINDER

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588010201

HOSE ASSY, HOSE; 8M3K-8FJX-8FJ

$113.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588031301

SPLITTER WEDGE

$625.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588012203

FITTING FITTING, HYD-STR 08MAO

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 588011401

CHASSIS CRADLE-LOG CRADLE

$136.99

$

Usually ships in 3-10 days

0

27

Husqvarna 588010605

BOLT BOLT RDHDSQNK .50-13X2 G8

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 588012101

FILTER FILTER,OIL-W/BYPASS

$56.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588725901

HEAD, FILTER - 3/4 NPT

$125.99

$

Usually ships in 3-10 days

0

28

Husqvarna 588010603

BOLT BOLT HEX .50-13 X 7.50 GR

$

$

Not available

21

Husqvarna 588012202

FITTING FITTING, HYD 6802-8-10

$

$

Not available

22

Husqvarna 588012201

FITTING FITTING, HYD 4601-10-1

$

$

Not available

26

Husqvarna 588013201

PIN PIN, CLEVIS .50 X 2.50 X 2

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 588127901

FITTING FITTING

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 588013301

PLATE PLATE, STRIPPER

$113.99

$

Usually ships in 3-10 days

0

36

Husqvarna 588031701

WASHER WASHER, FL-STL.563X1.38

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 588128101

BOLT BLT-HEX .31-18X1.25 GR5 Y

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588012603

HOSE HOSE,HYD-RET 801-10 WP 74

$148.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588012204

FITTING FITTING,HYD 6801-8-8

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 588013701

SHIELD, VALVE

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 588012601

HOSE ASSY, 8M3K-8FJX-8FJX-22

$62.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588726001

FITTING FITTING, HYD 3/4 NPT X

$

$

Not available
