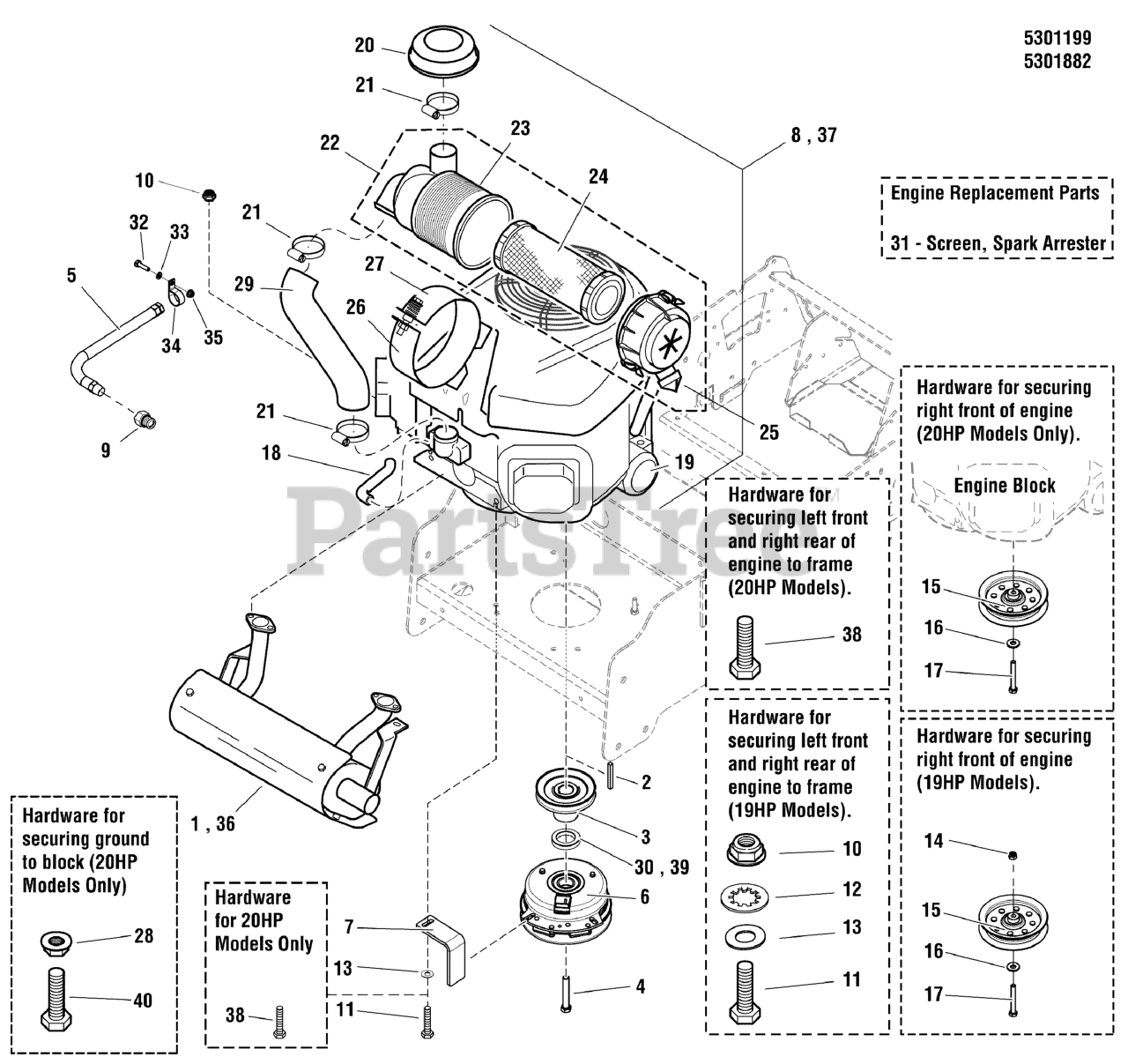

S 50X (5900769) - Snapper Pro S50X Series 36" Zero-Turn Mower, 19hp Kawasaki Engine & PTO Group - Kawasaki Parts Diagram

S50X Series 36" Zero-Turn Mower, 19hp Kawasaki

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Snapper Pro 5101125

MUFFLER, 19HP KAWASAKI

Note: (19HP MODELS)

$260.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5101338

PULLEY, PUMP DRIVE, 4.857 OB X 1-1/8
(Superseded to 5101338YP)

$49.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102864

BOLT, CRANKSHAFT, 7/16"X2-1/2
(Superseded to 5102864YP)

$5.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$20.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$483.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

In Stock, only 2 left!

0

8

ENGINE, 19HP KAWASAKI #FV580V-CS35R

Note: (19HP MODELS)

$

$

Not available

9

Snapper Pro 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

$16.99

$

In Stock, only 3 left!

0

10

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

Note: (19HP MODELS)

$3.99

$

In Stock, Qty 17

0

12

Snapper Pro 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

SEE PUMP DRIVE GROUP

$

$

Not available

15

SEE PUMP DRIVE GROUP

$

$

Not available

16

SEE PUMP DRIVE GROUP

$

$

Not available

17

SEE PUMP DRIVE GROUP

$

$

Not available

18

Snapper Pro 5102151X8

BREATHER TUBE

$

$

Not available

19a

Snapper Pro 5021334X1

OIL FILTER (49065-2078) (SV)
(Superseded to 5213341SM)

Note: (19HP MODELS)

$

$

Not available

19b

Snapper Pro 5102278X1

FILTER, OIL

Note: (20HP MODELS)

$

$

Not available

20

Snapper Pro 5100255

RAIN COVER

$

$

Currently unavailable

21

Snapper Pro 5100256

CLAMP

$

$

Currently unavailable

22

Snapper Pro 5102151X4

AIR FILTER ASSEMBLY

Note: (INCLUDES REF NOS 23 - 26)

$

$

Currently unavailable

23

Snapper Pro 5102151X5

CASE, AIR FILTER

$

$

Not available

24

Snapper Pro 5102151X3

AIR FILTER, PRIMARY

$

$

Currently unavailable

25

Snapper Pro 5102126X8

DUST VALVE

$

$

Not available

26

Snapper Pro 5102151X6

CASE, BRACKET, AIR FILTER

$9.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5102151X7

CASE, BRACKET, AIR FILTER

$

$

Currently unavailable

28

Snapper Pro 5025355

NUT, M8-1.25 SERR FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5102126X9

AIR INLET TUBE

$

$

Not available

30

Snapper Pro 5100062

SPACER, 1.13 X 1.75 X .32
(Superseded to 5100062YP)

Note: (19HP MODELS)

$17.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (NOT SHOWN)

$89.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 11

0

33

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

35

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

36

Snapper Pro 5102109

MUFFLER, (16-20HP), KAWASAKI S50X
(Superseded to 5102109FS)

Note: (20HP MODELS)

$309.99

$

Usually ships in 2-12 days

0

37

ENGINE, 20HP, KAWASAKI, FX600V

Note: (20HP MODELS)

$

$

Not available

38

Snapper Pro 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

Note: (20HP MODELS)

$3.49

$

In Stock, Qty 11

0

39

Snapper Pro 5048135

SPACER, 1.13 X 1.75 X .62
(Superseded to 5048135FS)

Note: (20HP MODELS)

$18.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

Note: (20HP MODELS)

$2.99

$

Usually ships in 2-12 days

0
