S 621 (12A-387A710) - Cub Cadet Walk-Behind Mower (2004) Transmission Assembly Parts Diagram

Walk-Behind Mower

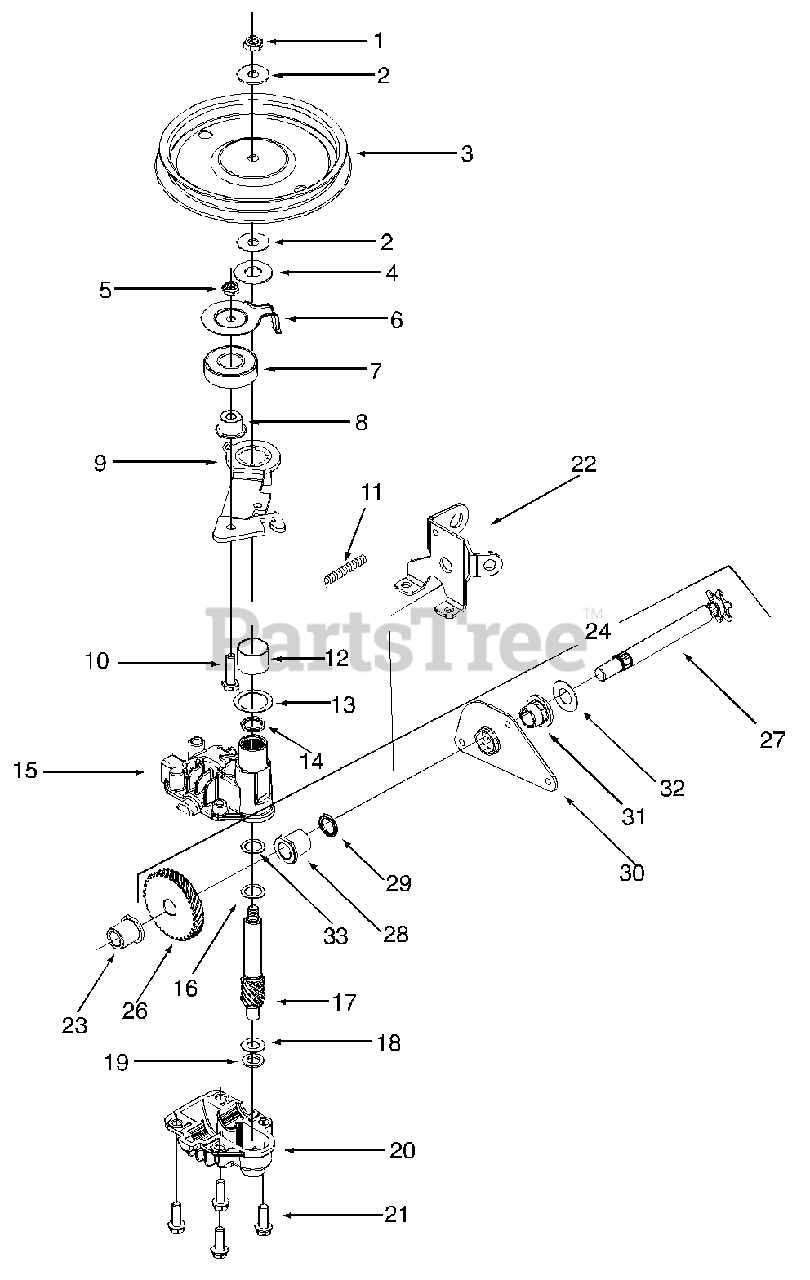

Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet 712-3025

Hx. Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0425

Bell Wash.325 x.930 x.045

$4.99

$

In Stock, Qty 14

0

3

Cub Cadet 756-0656

Pulley

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-3084

Fl. Wash.510 x 1.120 x.060

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0896

Hx. Jam Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

7

Cub Cadet 741-0124

Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

8

Cub Cadet 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 682-0027A

Idler Bracket Ass'y.
(Superseded to 982-0027A)

$17.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0299

Hx. Cap Scr. 1/4-28 x 1.00 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-0849A

Torsion Spring
(Superseded to 932-0849A)

$4.49

$

In Stock, Qty 5

0

12

Cub Cadet 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0570

Fl. Wash.885 x 1.145 x.030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 618-0253

Upper Housing Ass'y.

$

$

Not available

16

Cub Cadet 736-0616

Fl. Wash.504 x.700 x.030
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 717-1487

Pinion Shaft 10 T.
(Superseded to 917-1487)

$68.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0314

Thr. Wash. 3/8 x.70 x.030

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0569

Thr. Wash.388 x.625 x.062
(Superseded to 936-0569)

$

$

Not available

20

Cub Cadet 618-0252

Lower Housing Ass'y.
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0642

Hx. Scr. 1/2-20 x.75

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

Cub Cadet 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 741-0674

Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 611-0066

Shaft Ass'y.
(Superseded to 911-0066)

$

$

Not available

26

Cub Cadet 717-1469

Gear 34 T.

$63.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 711-1168

Output Shaft 6 T.

$31.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

29

Cub Cadet 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 782-7595

Pivot Bracket

$26.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-0324A

Flange Bearing

$7.99

$

In Stock, Qty 8

0

32

Cub Cadet 736-0369

Fl. Wash.508 I.D. x 1.00 O.D. x.020

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet 741-0690

Thrust Bearing

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-0263A

Transmission Complete
(Superseded to 918-0263A)

$271.99

$

Usually ships in 3-6 days

0
