S 65Z (2691386-02) - Ferris S65Z Series 52" Zero-Turn Mower, 25hp Briggs & Stratton 52" (132cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

S65Z Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

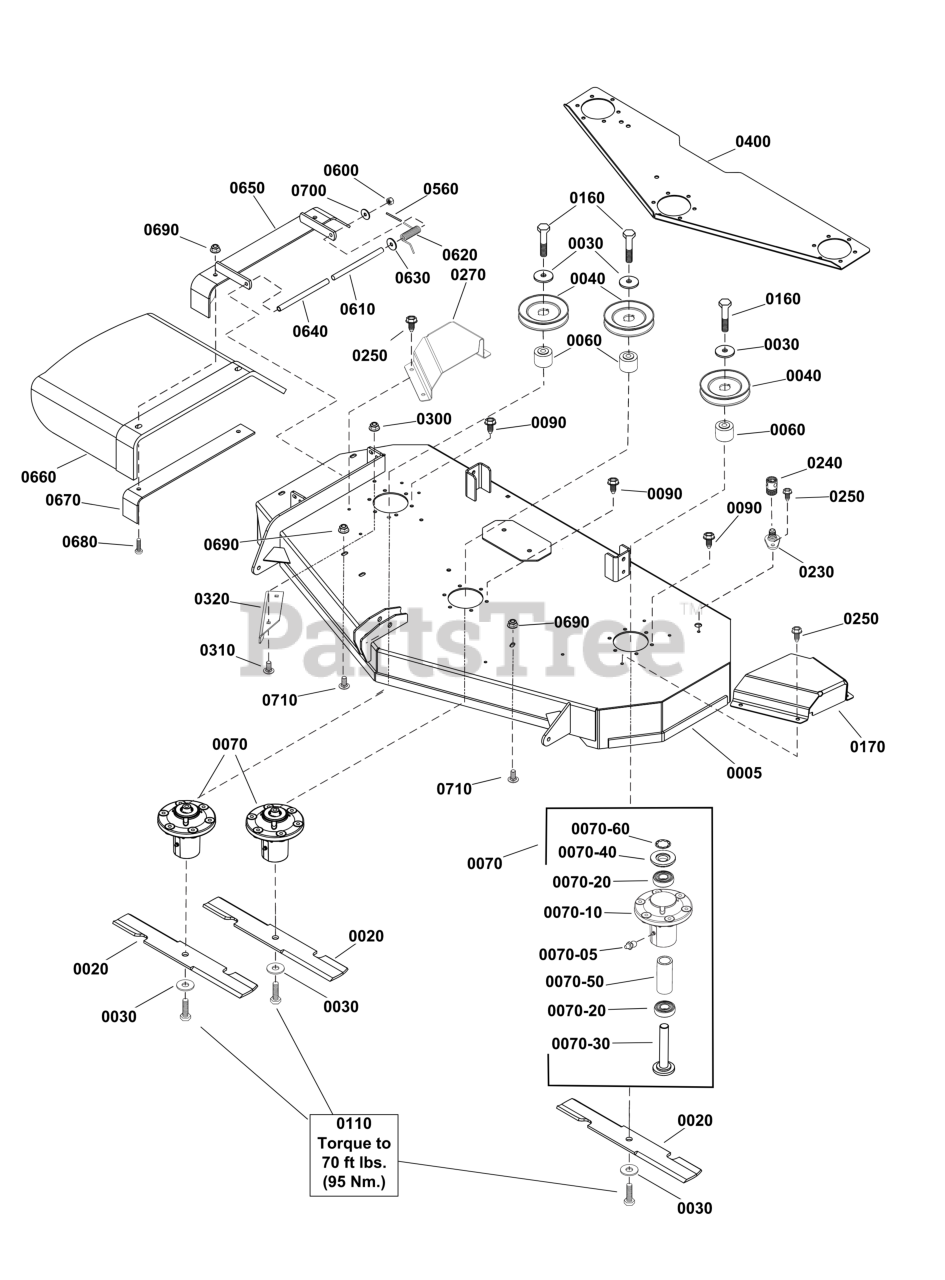

52" (132cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0005

Ferris 1687861YP

DECK, Mower w/Decals Red, 52"

$1918.99

$

Usually ships in 2-12 days

0

0020

Ferris 1756152SYP

BLADE, Mower, 18" (Set of 3)

$

$

Not available

0030

Ferris 1656916SM

WASHER, SPRING 0.475I

$7.99

$

In Stock, Qty 20+

0

0040

Ferris 1732951SM

PULLEY-04.60 OD 1.000

$20.99

$

In Stock, Qty 20+

0

0060

Ferris 706362

SPACER, HUB

$10.99

$

In Stock, only 1 left!

0

0070

Ferris 84003174

ARBOR ASSEMBLY

$117.99

$

In Stock, Qty 20+

0

0070-05

Ferris 1704314SM

LUBE FITTING, .250 DR
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

0070-10

Ferris 84003653

HOUSING ASSEMBLY

$86.99

$

Usually ships in 2-12 days

0

0070-20

Ferris 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Ferris 84003655

SHAFT, Mower Spindle

$29.99

$

In Stock, only 2 left!

0

0070-40

Ferris 84003166

COVER, ARBOR

$7.49

$

In Stock, Qty 20+

0

0070-50

Ferris 84003167

SPACER, BEARING

$6.99

$

In Stock, only 1 left!

0

0070-60

Ferris 1960766YP

RING, SELF LOCKING

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 704146

SCREW, HEX, 5/16-18X1

$3.99

$

In Stock, Qty 5

0

0110

Ferris 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 20+

0

0160

Ferris 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$4.49

$

Usually ships in 2-12 days

0

0170

Ferris 1759303AYP

COVER, Arbor, LH

$48.99

$

In Stock, only 2 left!

0

0230

Ferris 1756247YP

ADAPTER, Washout Port

$6.99

$

In Stock, Qty 7

0

0240

Ferris 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 2 left!

0

0250

Ferris 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Ferris 1759305AYP

COVER, Arbor, RH

$48.99

$

In Stock, only 2 left!

0

0300

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0310

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0320

Ferris 5405557AYP

PLATE, Deflector, 52" Deck - Blk
(Superseded to 5405557YP)

$22.99

$

Usually ships in 2-12 days

0

0400

Ferris 84011144

PLATE, Deck Top

$

$

Currently unavailable

0560

Ferris 5023489SM

CAP, PROTECTOR, .120

$3.99

$

In Stock, only 1 left!

0

0600

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 17

0

0610

Ferris 5042555SM

ROD, BRAKE LINKAGE

$11.99

$

In Stock, only 3 left!

0

0620

Ferris 5023385SM

SPRING, TORSION

$8.99

$

In Stock, only 2 left!

0

0630

Ferris 5025164SM

WASHER, 5/16" FENDER

$4.49

$

In Stock, only 2 left!

0

0640

Ferris 5050086X8SM

TORSION SPRING SPACER

$9.49

$

Usually ships in 2-12 days

0

0650

Ferris 5413404AYP

MOUNT, Discharge

$70.99

$

Usually ships in 2-12 days

0

0660

Ferris 5413498YP

CHUTE, Discharge

$176.99

$

Usually ships in 2-12 days

0

0670

Ferris 5413401AYP

SUPPORT

$33.99

$

Usually ships in 2-12 days

0

0680

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$4.49

$

Usually ships in 2-12 days

0

0690

Ferris 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0700

Ferris 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

0710

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0
