S 75X (5900859) - Snapper Pro S75X Series 52" Stand-On Mower, 26hp Kawasaki 52" Mower Deck - Pulleys, Belts & Idler Arms Parts Diagram

S75X Series 52" Stand-On Mower, 26hp Kawasaki

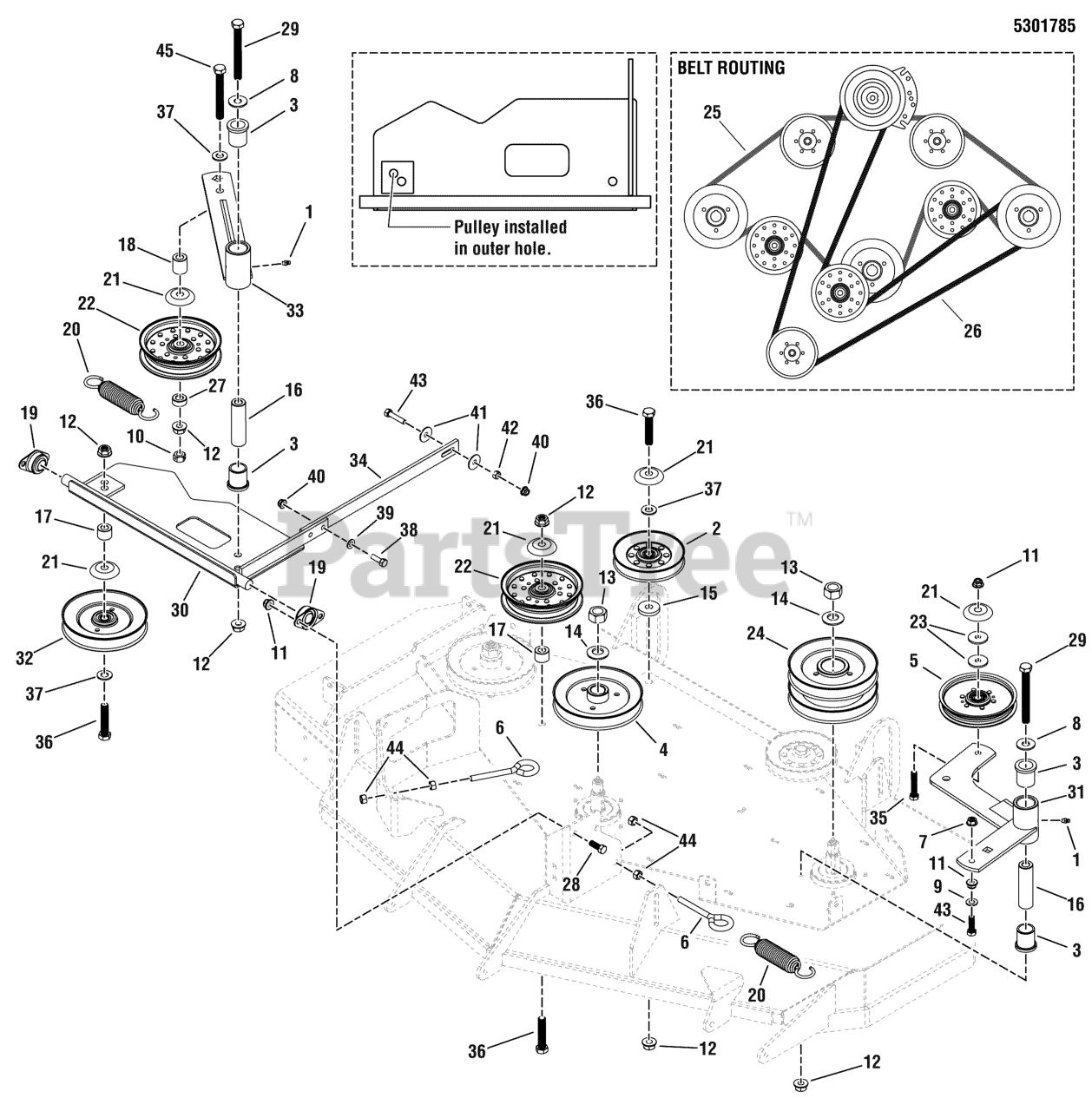

52" Mower Deck - Pulleys, Belts & Idler Arms Parts Diagram

  • Title

1

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$4.49

$

In Stock, only 2 left!

0

2

Snapper Pro 5021097

PULLEY-IDLER-V, 4.85OB, .506ID, .94W,STL
(Superseded to 5021097SM)

$41.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

$74.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5101193

PULLEY-IDLER, 5.00OD, .385ID, .75W, STL
(Superseded to 5101193YP)

$67.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$4.49

$

In Stock, only 2 left!

0

9

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, only 4 left!

0

11

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 15

0

13

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 8

0

14

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 9

0

16

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$25.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5061781

SPACER, .52 X 1.00 X 1.15
(Superseded to 5061781FS)

$12.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, Qty 6

0

20

Snapper Pro 5100633

SPRING, EXTENSION, SWIVEL, SHORT HOOK
(Superseded to 5100633YP)

$37.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 18

0

22

Snapper Pro 5101794

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL
(Superseded to 5101794YP)

$60.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5101964

WASHER, .390 X 1.38 X .109, YZ

$2.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5102180

PULLEY, DOUBLE, 5.926 OVER BALL
(Superseded to 5102180FS)

$111.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5102035

BELT, B-SECTION, 105 EL, WRAP, ARAMID

$88.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102040

BELT, B-SECTION, 112 EL, WRAP, ARAMID

$92.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 3 left!

0

28

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

29

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

30

Snapper Pro 5404767D

WELD, IDLER MOUNT PLATE - RED

$157.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5404925D

WELD, IDLER, EVOLUTION 48 - RED

$

$

Currently unavailable

32

Snapper Pro 5101996

PULLEY, 6" DEEP GROOVE, COMPENSATOR
(Superseded to 5101996FS)

$85.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5405003D

WELD, IDLER ARM, EVO 36 DECK

$64.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5404939D

BAR, 1/4 X 1.00 X 15.50

$13.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 20+

0

36

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 1 left!

0

37

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

38

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

39

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

40

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$4.49

$

In Stock, only 2 left!

0

42

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 5

0

43

Snapper Pro 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$4.49

$

In Stock, only 1 left!

0

44

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0
