S-8 (990853) - Homelite 28" Snow Thrower, 8hp Handles and Controls Group (3841I01) Parts Diagram

28" Snow Thrower, 8hp

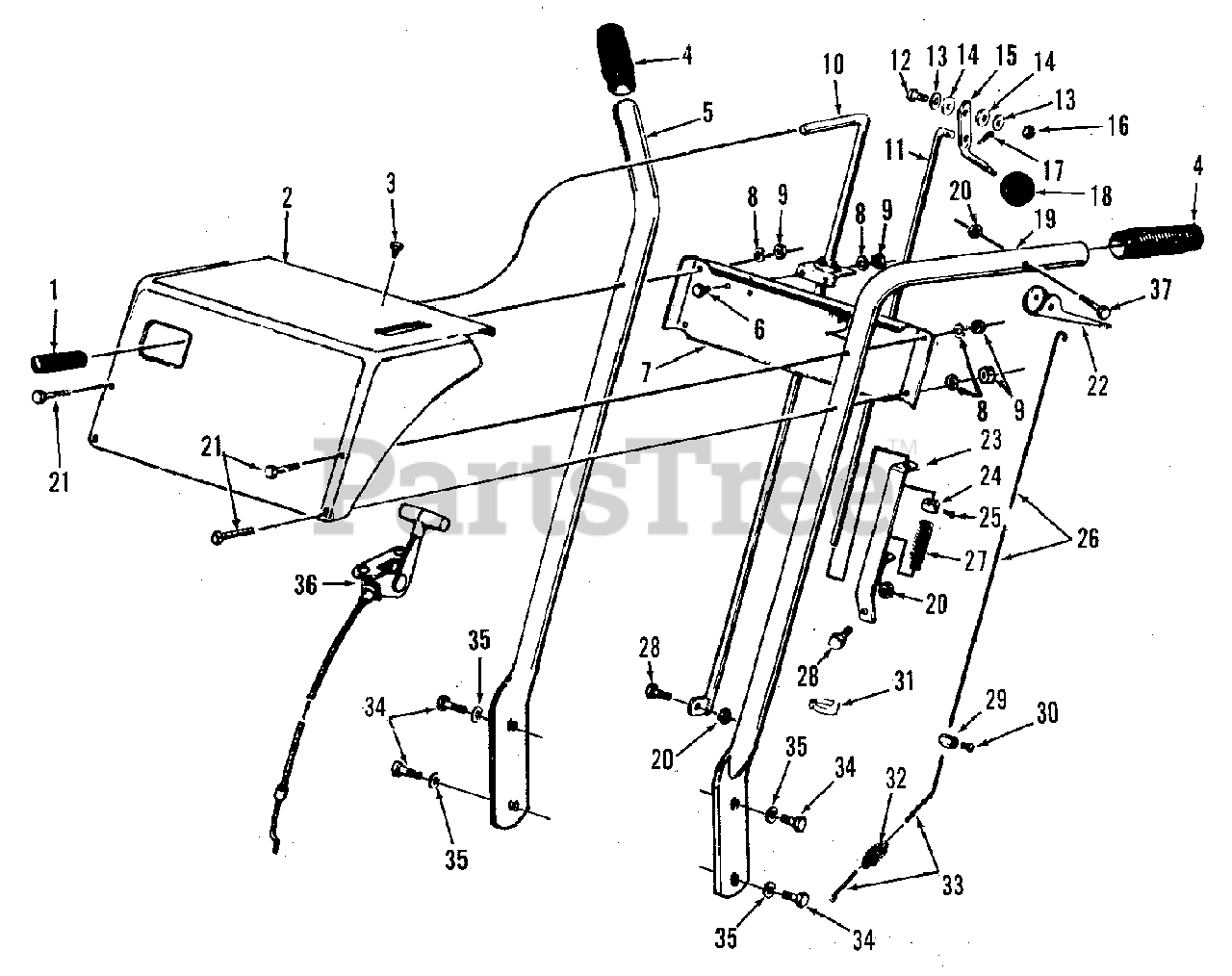

Handles and Controls Group (3841I01) Parts Diagram

  • Title

1

Simplicity LM-01611-05

GRIP, Handle

$

$

Not available

2

Simplicity LM-01611-73

CONTROL HOUSING ASSEMBLY

$

$

Not available

3

Simplicity LM-09231-88

SCREW, Hex, Self-Tapping, 1/4-20 x 1/2

$

$

Not available

4

Simplicity LM-01065-58

GRIP

$

$

Not available

5

Simplicity LM-01765-68

HANDLE, Rear, R.H.

$

$

Not available

6

Simplicity LM-09082-95

SCREW, Hex Cap, 1/4-20 x 1/2

$

$

Not available

7

Simplicity LM-01761-05

COVER, Handle

$

$

Not available

8

Simplicity LM-09169-64

WASHER, Lock, 1/4"

$

$

Not available

9

Simplicity LM-09166-22

NUT, Full Hex, 1/4-20

$

$

Not available

10

Simplicity LM-01760-25

SHIFT ROD ASSEMBLY

$

$

Not available

11

Simplicity LM-01610-52

ROD, Clutch

$

$

Not available

12

Simplicity LM-09193-19

SCREW, Hex Cap, 5/16-18 x 7/8

$

$

Not available

13

Simplicity LM-09173-77

WASHER, Flat, 1/4"

$

$

Not available

14

Simplicity LM-01591-34

WASHER, Special

$

$

Not available

15

Simplicity LM-01610-85

HANDLE, Auger Clutch

$

$

Not available

16

Simplicity LM-09244-33

NUT, Elastic Stop, 5/16-18

$

$

Not available

17

Simplicity LM-09184-47

PIN, cotter, 3/32 x 3/4

$

$

Not available

18

Simplicity LM-01220-05

KNOB

$

$

Not available

19

Simplicity LM-01765-69

HANDLE, Rear, L.H.

$

$

Not available

20

Simplicity LM-09233-58

NUT, Full, Hex Lock, 1/4-20

$

$

Not available

21

Simplicity LM-09182-40

SCREW, Hex Cap, 1/4-20 x 1-1/2

$

$

Not available

22

Simplicity LM-01180-56

GRIP, Clutch

$

$

Not available

23

Simplicity LM-01610-41

GUIDE ASSEMBLY

$

$

Not available

24

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

25

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8"

$

$

Not available

26

Simplicity LM-01610-90

EXTENSION, Spring

$

$

Not available

27

Simplicity LM-81910-45

SPRING

$

$

Not available

28

Simplicity LM-09219-60

SCREW, Hex Cap, 1/4-20 x 1

$

$

Not available

29

Simplicity LM-01610-92

CLAMP, Wire

$

$

Not available

30

Simplicity LM-09160-79

SCREW, Round Head, 10-24 x 3/8

$

$

Not available

31

Simplicity LM-80611-08

CABLE CLIP

$

$

Not available

32

Simplicity LM-01610-93

SPRING

$

$

Not available

33

Simplicity LM-01610-91

WIRE, Extension

$

$

Not available

34

Simplicity LM-09233-25

SCREW, Hex Cap, 5/16-18 x 7/8

$

$

Not available

35

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

36

Simplicity LM-01611-78

THROTTLE CONTROL ASSEMBLY

$

$

Not available

37

Simplicity LM-09193-16

SCREW, Cap, 1/4-20 x 3/4

$

$

Not available
