S-8 (990853) - Homelite 28" Snow Thrower, 8hp Rotor and Body Group (3841I03) Parts Diagram

28" Snow Thrower, 8hp

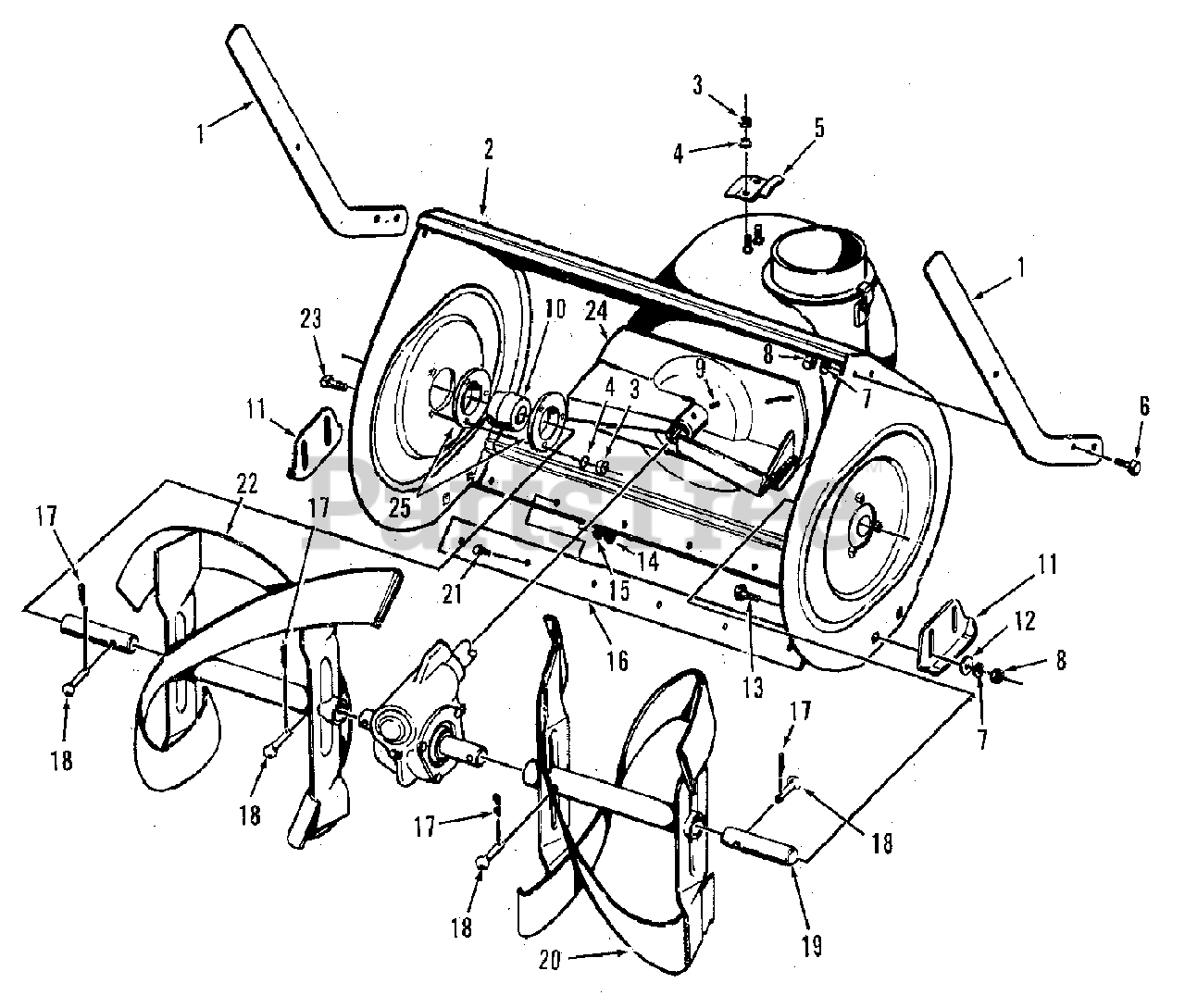

Rotor and Body Group (3841I03) Parts Diagram

  • Title

1

Simplicity LM-01610-42

CUTTER, Drift, 3/16 x 1-1/2 x 18 3/8

$

$

Not available

2

Simplicity LM-01733-75

BODY ASSEMBLY

$

$

Not available

2

Simplicity LM-01610-26

SLEEVE (Not Shown)

$

$

Not available

3

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

4

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

5

Simplicity LM-01611-16

CLIP, Hold Down

$

$

Not available

6

Simplicity LM-09081-27

SCREW, Hex Cap, 3/8-16 x 3/4

$

$

Not available

7

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

8

Simplicity LM-09169-50

NUT, Full Hex, 3/8-16

$

$

Not available

9

Simplicity LM-09287-09

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

10

Simplicity LM-01761-00

BEARING ASSEMBLY

$

$

Not available

11

Simplicity LM-01610-06

SKID

$

$

Not available

12

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

13

Simplicity LM-09221-10

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

14

Simplicity LM-09166-22

NUT, Full Hex, 1/4-20

$

$

Not available

15

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

16

Simplicity LM-01733-80

BLADE, Scraper

$

$

Not available

17

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

18

Simplicity LM-01180-53

PIN

$

$

Not available

19

Simplicity LM-01610-60

AUGER, Shaft

$

$

Not available

20

Simplicity LM-01733-83

BLADE, Rotor, L.H.

$

$

Not available

21

Simplicity LM-09219-59

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

22

Simplicity LM-01733-84

BLADE, Rotor R.H.

$

$

Not available

23

Simplicity LM-09173-97

SCREW, Hex Cap, 5/16-18 x 3/4

$

$

Not available

24

Simplicity LM-01610-11

IMPELLER ASSEMBLY

$

$

Not available

25

Simplicity LM-01761-01

FLANGE, Bearing

$

$

Not available
