S-8 (990853) - Homelite 28" Snow Thrower, 8hp Spout and Controls Group (3841I02) Parts Diagram

28" Snow Thrower, 8hp

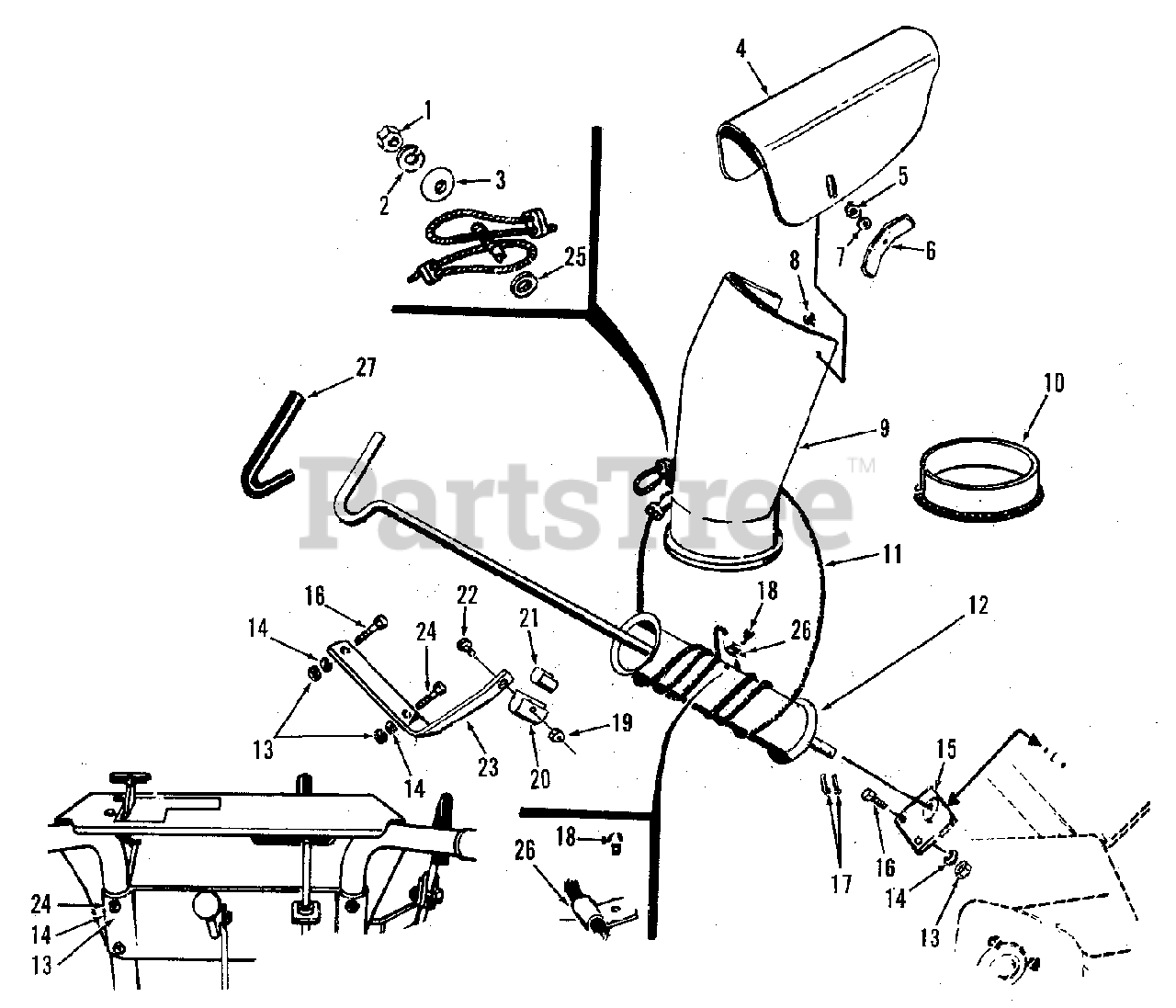

Spout and Controls Group (3841I02) Parts Diagram

  • Title

1

Simplicity LM-09173-72

NUT, Full Hex, 5/16-18

$

$

Not available

2

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

3

Simplicity LM-01713-79

WASHER, Cup

$

$

Not available

4

Simplicity LM-01064-89

EXTENSION, Spout

$

$

Not available

5

Simplicity LM-09287-10

WASHER, Lock, 3/8" Shakeproof

$

$

Not available

6

Simplicity LM-01062-29

NUT, Wing

$

$

Not available

7

Simplicity LM-09176-42

WASHER, Flat, 3/8

$

$

Not available

8

Simplicity LM-09205-62

BOLT, Carriage

$

$

Not available

9

Simplicity LM-01610-99

SPOUT, Assembly

$

$

Not available

10

Simplicity LM-01612-81

LINER

$

$

Not available

11

Simplicity LM-01713-62

CABLE ASSEMBLY

$

$

Not available

12

Simplicity LM-01760-73

ROD, Spout Control

$

$

Not available

13

Simplicity LM-09166-22

NUT, Full Hex, 1/4-20

$

$

Not available

14

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

15

Simplicity LM-01065-51

BEARING

$

$

Not available

16

Simplicity LM-09077-27

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

17

Simplicity LM-09184-51

PIN, Cotter, 1/8 x 3/4

$

$

Not available

18

Simplicity LM-09274-28

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

19

Simplicity LM-09233-62

NUT, Full Hex Lock, 5/16-18

$

$

Not available

20

Simplicity LM-01520-50

GUIDE, Rod

$

$

Not available

21

Simplicity LM-01211-75

LINER, Guide

$

$

Not available

22

Simplicity LM-09077-29

SCREW, Hex Cap, 5/16-18 x 1-1/4

$

$

Not available

23

Simplicity LM-01760-26

SUPPORT, Bracket

$

$

Not available

24

Simplicity LM-09193-16

SCREW, Hex Cap, 1/4-20 x 1-3/4

$

$

Not available

25

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

26

Simplicity LM-01713-82

CLAMP

$

$

Not available

27

Simplicity LM-01769-34

HANDLE, Grip

$

$

Not available
