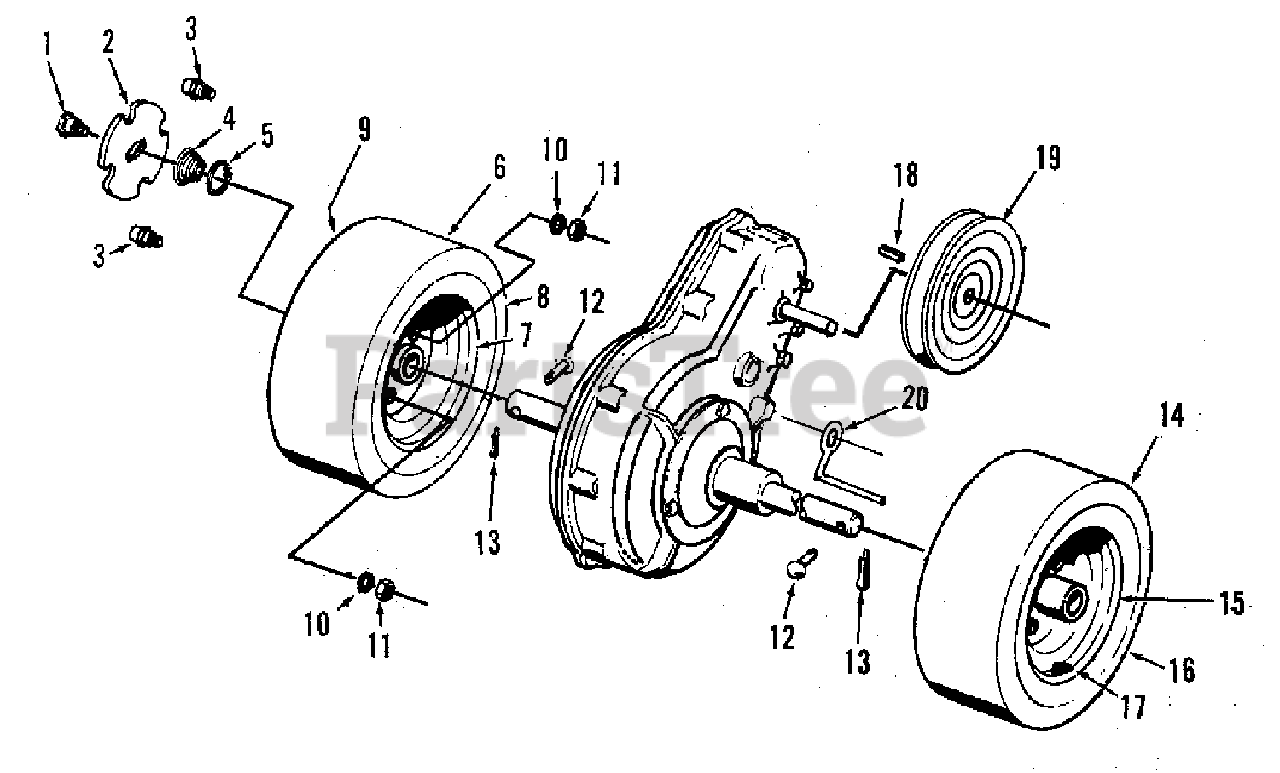

S-8 (990853) - Homelite 28" Snow Thrower, 8hp Wheel Group (3841I07) Parts Diagram

28" Snow Thrower, 8hp

Wheel Group (3841I07) Parts Diagram

  • Title

1

Simplicity LM-01611-66

BOLT, Shoulder

$

$

Not available

2

Simplicity LM-01612-59

PLATE

$

$

Not available

3

Simplicity LM-01612-04

STUD

$

$

Not available

4

Simplicity LM-01611-76

SPRING

$

$

Not available

5

Simplicity LM-01612-07

RING, Retaining

$

$

Not available

6

Simplicity LM-01612-26

WHEEL & TIRE ASSEMBLY, L.H.

$

$

Not available

7

Simplicity LM-01612-25

WHEEL, L.H.

$

$

Not available

8

Simplicity LM-01562-13

TIRE, 5.30/4.50 X 8

$

$

Not available

9

Simplicity LM-01563-05

STEM & CAP, Valve

$

$

Not available

10

Simplicity LM-09176-42

WASHER, Flat

$

$

Not available

11

Simplicity LM-09234-28

NUT, Full Hex Lock, 3/8-16

$

$

Not available

12

Simplicity LM-01180-53

PIN

$

$

Not available

13

Simplicity LM-09184-51

PIN, Cotter, Extension Prong

$

$

Not available

14

Simplicity LM-01612-35

WHEEL & TIRE ASSEMBLY, R.H.

$

$

Not available

15

Simplicity LM-01612-34

WHEEL, R.H.

$

$

Not available

16

Simplicity LM-01562-13

TIRE, 5.30/4.50 X 6

$

$

Not available

17

Simplicity LM-01563-05

STEM & CAP, Valve

$

$

Not available

18

Simplicity LM-01182-78

KEY

$

$

Not available

19

Simplicity LM-01742-40

PULLEY

$

$

Not available

20

Simplicity LM-16060-14

STOP, Belt

$

$

Not available
