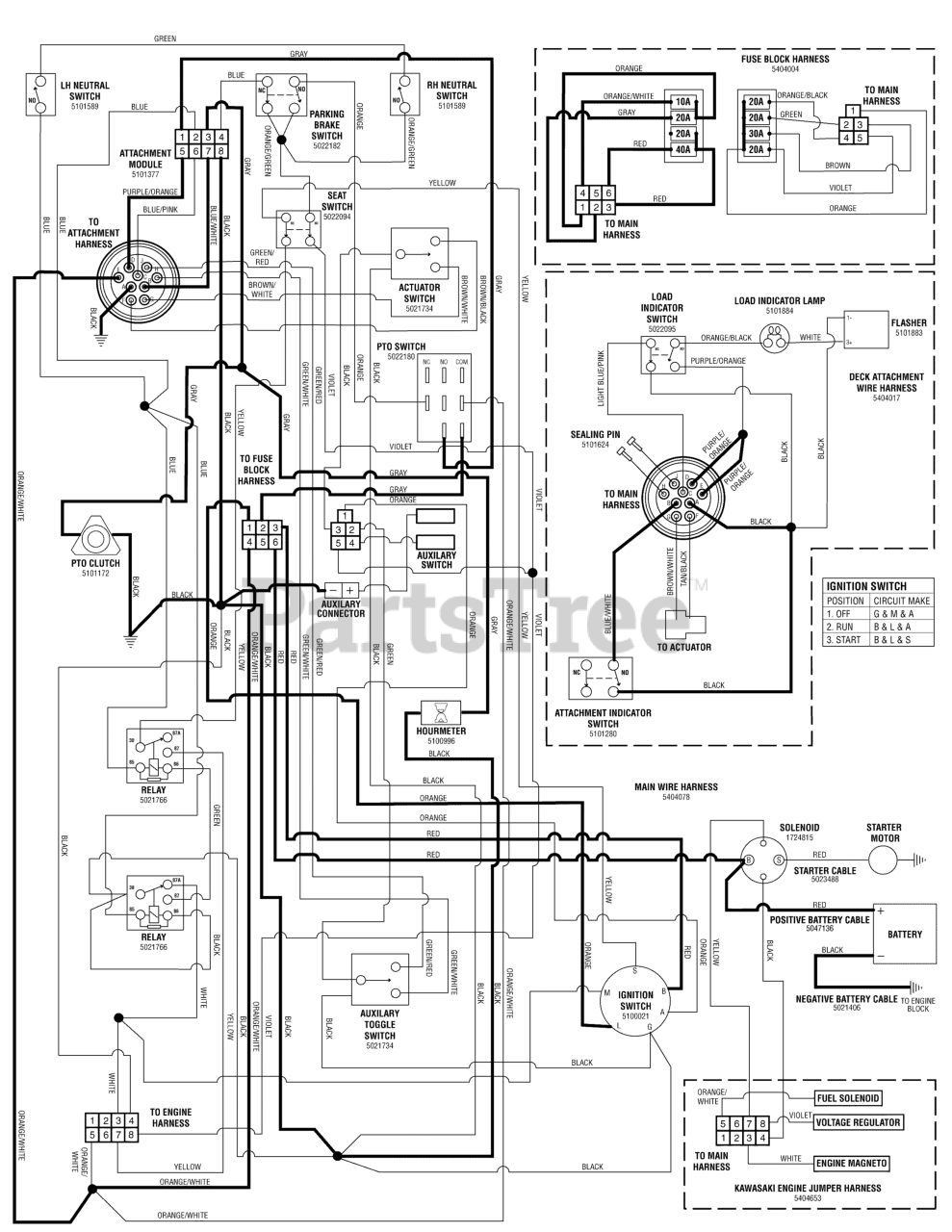

S 800X (5900654) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton Electrical Schematic - PTO Circuit - S/N: 2013999398 & Below Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton
