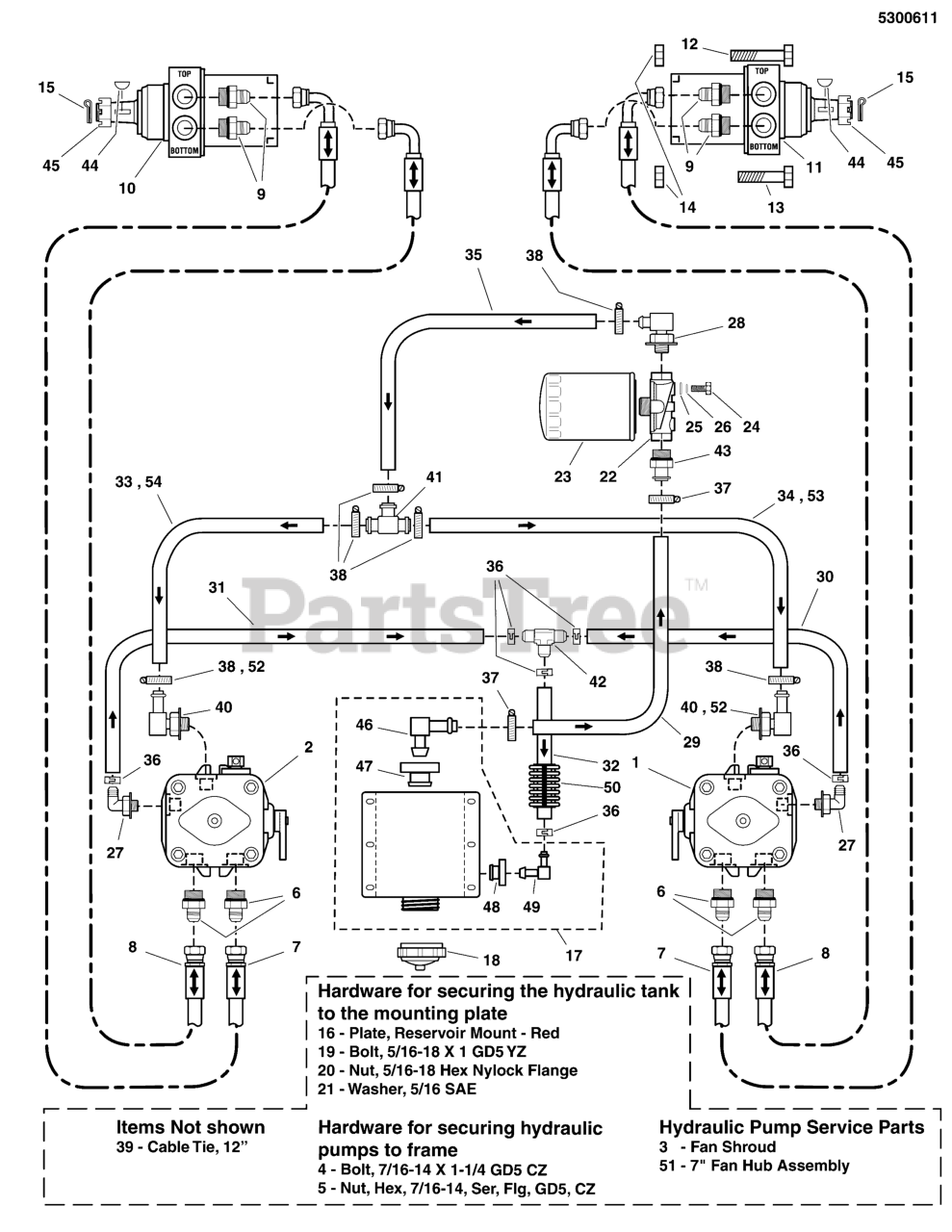

S 800X (5900654) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton Hydraulic Group (Gas Models) Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton

Hydraulic Group (Gas Models) Parts Diagram

  • Title

1

Snapper Pro 5101688

PUMP, 16CC, PR-2KBQ-GV1F-XXXX
(Superseded to 5101688YP)

$1161.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5101687

PUMP, 16CC, PR-2HBQ-GV1F-XXXX
(Superseded to 5101687YP)

$1161.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5100162

FAN SHROUD (SV)
(Superseded to 5100162SM)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025015X10

BOLT, 7/16-14 X 1-1/4 GD5 YZ

$

$

Currently unavailable

5

Snapper Pro 5025533

NUT, HEX, 7/16-14, SER, FLG, GD5, YZ
(Superseded to 5025533FS)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5022633

FITTING, #8 O-RING X #8 JIC, STR
(Superseded to 5022633SM)

$12.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5022887

HOSE ASSEMBLY (33)
(Superseded to 5102096YP)

$160.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5102110

HOSE ASSEMBLY, (29)
(Superseded to 5102110YP)

$142.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5022634

FITTING, #10 O-RING X #8 JIC, STR
(Superseded to 5022634SM)

$15.99

$

In Stock, only 2 left!

0

10

Snapper Pro 5102637

WHEEL MOTOR, LH, 17.1 CI
(Superseded to 5102637YP)

Note: (S/N: 2014013369 & Above)

$1067.99

$

Usually ships in 2-12 days

0

10

Use next serial number range wheel motors, fittings & kit #5600578.

Note: (S/N: 2014013368 & Below) Was 5100407

$

$

Not available

11

Snapper Pro 5102636

WHEEL MOTOR, RH, 17.1 CI
(Superseded to 5102636YP)

Note: (S/N: 2014013369 & Above)

$995.99

$

Usually ships in 2-12 days

0

11

Use next serial number range wheel motors, fittings & kit #5600578.

Note: (S/N: 2014013368 & Below) Was 5100410

$

$

Not available

12

Snapper Pro 5025475

BOLT, 1/2-13 X 2-1/2, NYLON PATCH
(Superseded to 5025475YP)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023481

BOLT, 1/2-13 X 2-1/4" w/ Loctite Patch
(Superseded to 5023481SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025330

NUT, 1/2-13 Square
(Superseded to 5025330SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5403636D

PLATE, RESERVOIR MOUNT - RED

$

$

Currently unavailable

17

Snapper Pro 5061712

TANK, HYDRAULIC, ASSEMBLY
(Superseded to 5061712SM)

$154.99

$

In Stock, only 3 left!

0

18

Snapper Pro 5100017

CAP, HYDRAULIC, SHIELDED VENT
(Superseded to 5100017SM)

$23.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Snapper Pro 5023096

FILTER HEAD, HYDRAULIC
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 16

0

24

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

25

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5023267

ADAPTER, 90 DEG. 9/16 - 3/8 BARB
(Superseded to 5023267SM)

$30.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5100370

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG
(Superseded to 5100370YP)

$18.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5050933X18

HOSE, 5/8" PUSH-ON, 18.00"
(Superseded to 5050933X18FS)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5050860X11

HOSE, 3/8" PUSH-LOCK, 11.00"
(Superseded to 5050860X11FS)

$12.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5050860X30

HOSE, 3/8" PUSH-LOCK, 30"

$

$

Currently unavailable

32

Snapper Pro 5050860X28

HOSE, 3/8" PUSH-LOCK, 28.00"
(Superseded to 5050860X28FS)

$32.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5050857X28

HOSE, 1/2" PUSH-ON, 28.00"

Note: (S/N: 2013920028 & Below)

$

$

Currently unavailable

34

Snapper Pro 5050857X13

HYDRAULIC HOSE, Pump To Cooler
(Superseded to 5050857X13SM)

Note: (S/N: 2013920028 & Below)

$8.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 5050857X5P5

HOSE, 1/2" X 5.5" PUSH LOCK
(Superseded to 5050857X5P5FS)

$8.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5023268

CLAMP, Hose
(Superseded to 5023268SM)

$3.49

$

In Stock, only 2 left!

0

37

Snapper Pro 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 2 left!

0

38

Snapper Pro 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

39

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

40

Snapper Pro 5101705

FITTING, 1/2 HOSE TO 3/4 - 16 O-RING, 90

Note: (S/N: 2013920028 & Below)

$

$

Currently unavailable

41

Snapper Pro 5101693

FITTING, BEADED TEE, 1/2 X 1/2 X 1/2, YZ
(Superseded to 5101693YP)

$21.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5022920

FITTING, TEE, 3/8" Hose
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5100678

FITTING, STRAIGHT, HYD #12618
(Superseded to 5100678YP)

$17.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5022042X2

KEY, WOODRUFF, #1008, 5/16 X 1
(Superseded to 5022042X2SM)

$10.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

$34.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 5023119

FITTING, ELBOW, 5/8" (SV)

$

$

Currently unavailable

47

Snapper Pro 5023121

GROMMET (SV)
(Superseded to 5023121SM)

$15.99

$

In Stock, only 2 left!

0

48

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 5

0

49

Snapper Pro 5023118

FITTING, ELBOW, 3/8" (SV)
(Superseded to 5023118SM)

$7.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5050861X6

WIRE LOOM, 5/8 ID, 6" LONG

$

$

Currently unavailable

51

Snapper Pro 5022571X1

7" FAN HUB ASSEMBLY, HYDROGEAR #70811
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5102498

FITTING, EXTRA LG, 90, 1/2 TUBE - 3/4-16
(Superseded to 5102498YP)

Note: (S/N: 2013920029 & Above)

$47.99

$

Usually ships in 2-12 days

0

53

Snapper Pro 5050857X12

HYDRAULIC HOSE, Cooler To Reservoir
(Superseded to 5050857X12FS)

Note: (S/N: 2013920029 & Above)

$15.99

$

Usually ships in 2-12 days

0

54

Snapper Pro 5050857X27

HOSE, 1/2" PUSH-ON, 27.00"
(Superseded to 5050857X27FS)

Note: (S/N: 2013920029 & Above)

$31.99

$

Usually ships in 2-12 days

0
