S 800X (5900656) - Snapper Pro 61" Mower Deck 61" Mower Deck - Deck Lift Parts Diagram

61" Mower Deck

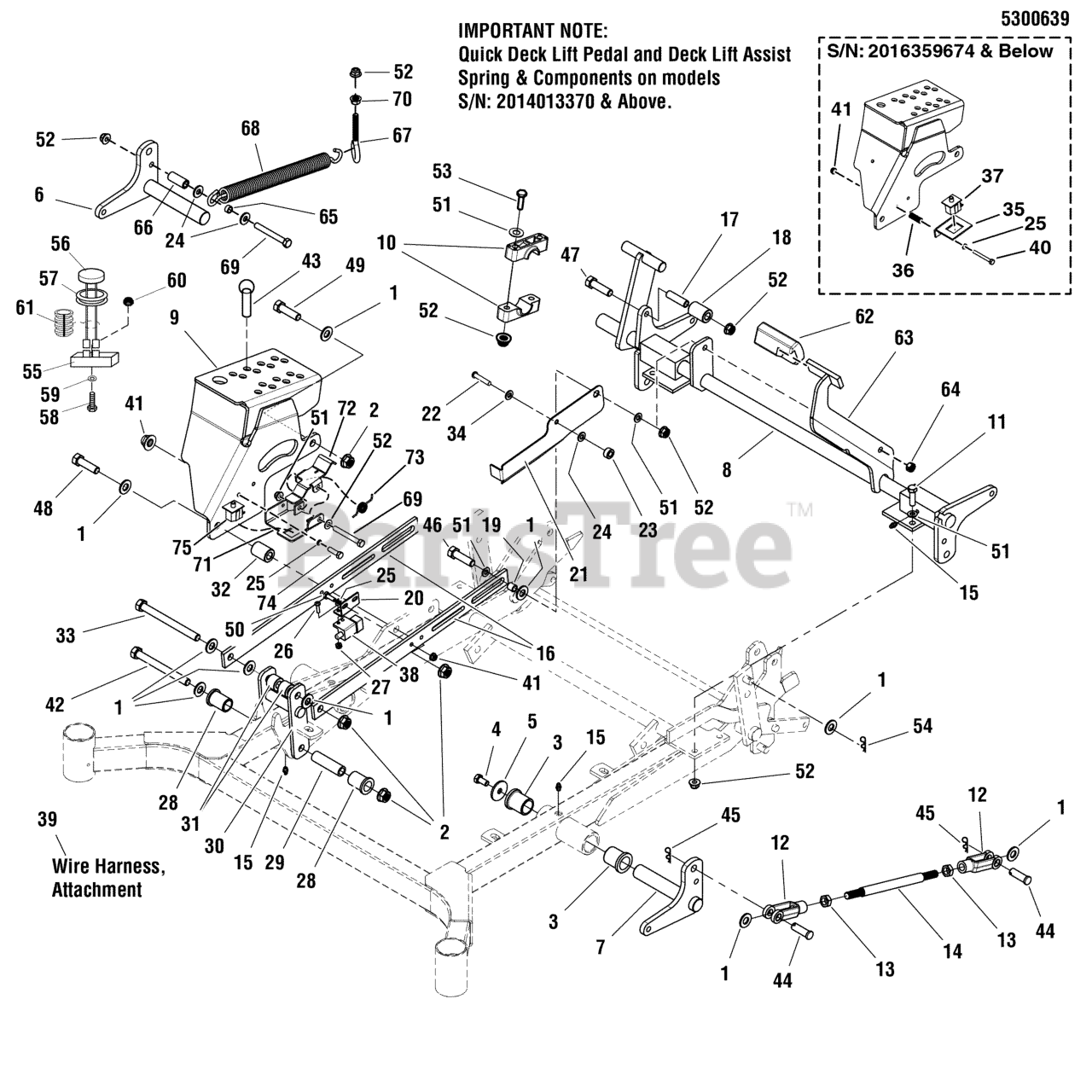

61" Mower Deck - Deck Lift Parts Diagram

  • Title

1

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 18

0

3

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

6

Snapper Pro 5403086D

WELD., DECK LIFT LEVER - RH - RED

$

$

Not available

7

Snapper Pro 5403085D

WELD., DECK LIFT LEVER - LH - RED

$

$

Not available

8

Snapper Pro 5403087D

WELD, DECK LIFT SHAFT - OUTFRONT - RED

$

$

Not available

9

Snapper Pro 5404358D

WELD, CUT HEIGHT BOX - RED

$

$

Currently unavailable

10

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.99

$

In Stock, only 3 left!

0

11

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

12

Snapper Pro 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$17.99

$

In Stock, only 4 left!

0

13

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$4.49

$

In Stock, only 2 left!

0

14

Snapper Pro 5101156

ROD, DECK LIFT, OUTFRONT

$26.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5403123D

BAR, ACTUATOR LINK - RED

$

$

Currently unavailable

17

Snapper Pro 5101638

SPACER, .38 X .50 X 1.78 YZ
(Superseded to 5101638YP)

$8.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5101206

SPACER, .51 X 1.00 X 1.47 YZ

$10.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5101640

SPACER, .38 X .50 X .50, YZ
(Superseded to 5101640YP)

$7.99

$

In Stock, only 2 left!

0

20

Snapper Pro 5403789D

PLATE, SWITCH MOUNT - RED

$

$

Currently unavailable

21

Snapper Pro 5403790D

PLATE, SWITCH COVER - RED

$

$

Not available

22

Snapper Pro 5025213X8

PIN-CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.99

$

In Stock, only 3 left!

0

24

Snapper Pro 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$4.49

$

In Stock, only 2 left!

0

25

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5101642

BUSHING, FLANGED, 3/4 X 1 X 1
(Superseded to 5101642YP)

$8.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5101186

SPACER, .51 X .75 X 2.66

$8.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5403243D

WELD, PIVOT LINK - ACTUATOR - RED

$

$

Not available

31

Snapper Pro 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.99

$

In Stock, only 2 left!

0

32

Snapper Pro 5101207

SPACER, .52 X 1.00 X 1.38 YZ

$

$

Currently unavailable

33

Snapper Pro 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 20+

0

34

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

35

Snapper Pro 5403779D

MOUNT, LOW PROFILE SWITCH - RED

Note: (S/N: 2016359674 & Below)

$13.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5101637

SPRING, .325 X .475 X 1.25, BLK E-COAT

Note: (S/N: 2016359674 & Below)

$

$

Currently unavailable

37

Snapper Pro 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

Note: (S/N: 2016359674 & Below)

$32.99

$

In Stock, only 1 left!

0

38

Snapper Pro 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$18.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5404017

WIRE HARNESS, ATTACHMENT, DECK

$236.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5025010X18

BOLT, 1/4-20 X 2-1/4, GD5
(Superseded to 5025010X18SM)

Note: (S/N: 2016359674 & Below)

$3.49

$

In Stock, only 3 left!

0

41

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

42

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

43

Snapper Pro 5022045

PIN-COTTERLESS
(Superseded to 5022045SM)

$15.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025479

CLEVIS PIN, 1/2 X 1.36 SAE STANDARD
(Superseded to 5025479YP)

$3.99

$

In Stock, Qty 14

0

45

Snapper Pro 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 2 left!

0

46

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 20+

0

48

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 4 left!

0

49

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

51

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

52

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

53

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

54

Snapper Pro 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

55

Snapper Pro 5101883

FLASHER, 90 FPM, OUT FRONT MOWER

$69.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 5101884

INDICATOR LAMP, RED, LED

$64.99

$

Usually ships in 2-12 days

0

57

Snapper Pro 5022816

GROMMET, 1/2
(Superseded to 5022816YP)

$4.49

$

Usually ships in 2-12 days

0

58

Snapper Pro 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

$3.49

$

In Stock, only 1 left!

0

59

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

60

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

61

Snapper Pro 5050927X7

WIRE LOOM, 3/8 ID X 7" LONG

$

$

Currently unavailable

62

Snapper Pro 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

Note: (S/N: 2014013370 & Above)

$11.99

$

Usually ships in 2-12 days

0

63

Snapper Pro 5406109D

WELD, QUICK DECK LIFT PEDAL - RED
(Superseded to 5406109DYP)

Note: (S/N: 2014013370 & Above)

$43.99

$

Usually ships in 2-12 days

0

64

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

Note: (S/N: 2014013370 & Above)

$3.49

$

In Stock, Qty 6

0

65

Snapper Pro 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

Note: (S/N: 2014013370 & Above)

$4.99

$

In Stock, only 1 left!

0

66

Snapper Pro 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

Note: (S/N: 2014013370 & Above)

$6.49

$

Usually ships in 2-12 days

0

67

Snapper Pro 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

Note: (S/N: 2014013370 & Above)

$6.99

$

Usually ships in 2-12 days

0

68

Snapper Pro 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

Note: (S/N: 2014013370 & Above)

$52.99

$

Usually ships in 2-12 days

0

69

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

Note: (S/N: 2014013370 & Above)

$4.49

$

In Stock, Qty 5

0

70

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

Note: (S/N: 2014013370 & Above)

$3.49

$

In Stock, Qty 20+

0

71

Snapper Pro 5410814A

WELD, SWITCH MOUNT - BLK

Note: (S/N: 2016359675 & Above)

$

$

Currently unavailable

72

Snapper Pro 5410817A

INDICATOR, DECK POSITION - BLK

Note: (S/N: 2016359675 & Above)

$

$

Currently unavailable

73

Snapper Pro 5103841

SPRING, TORSION, .591ID X .40LG X .095WR
(Superseded to 5103841YP)

Note: (S/N: 2016359675 & Above)

$13.99

$

Usually ships in 2-12 days

0

74

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

Note: (S/N: 2016359675 & Above)

$3.99

$

In Stock, Qty 11

0

75

Snapper Pro 5103842

SWITCH, LOWER PRO, NC/NC
(Superseded to 5103842YP)

Note: (S/N: 2016359675 & Above)

$15.99

$

Usually ships in 2-12 days

0
