S 800X (5900658) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 28hp Kawasaki Parking Brake Group Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 28hp Kawasaki

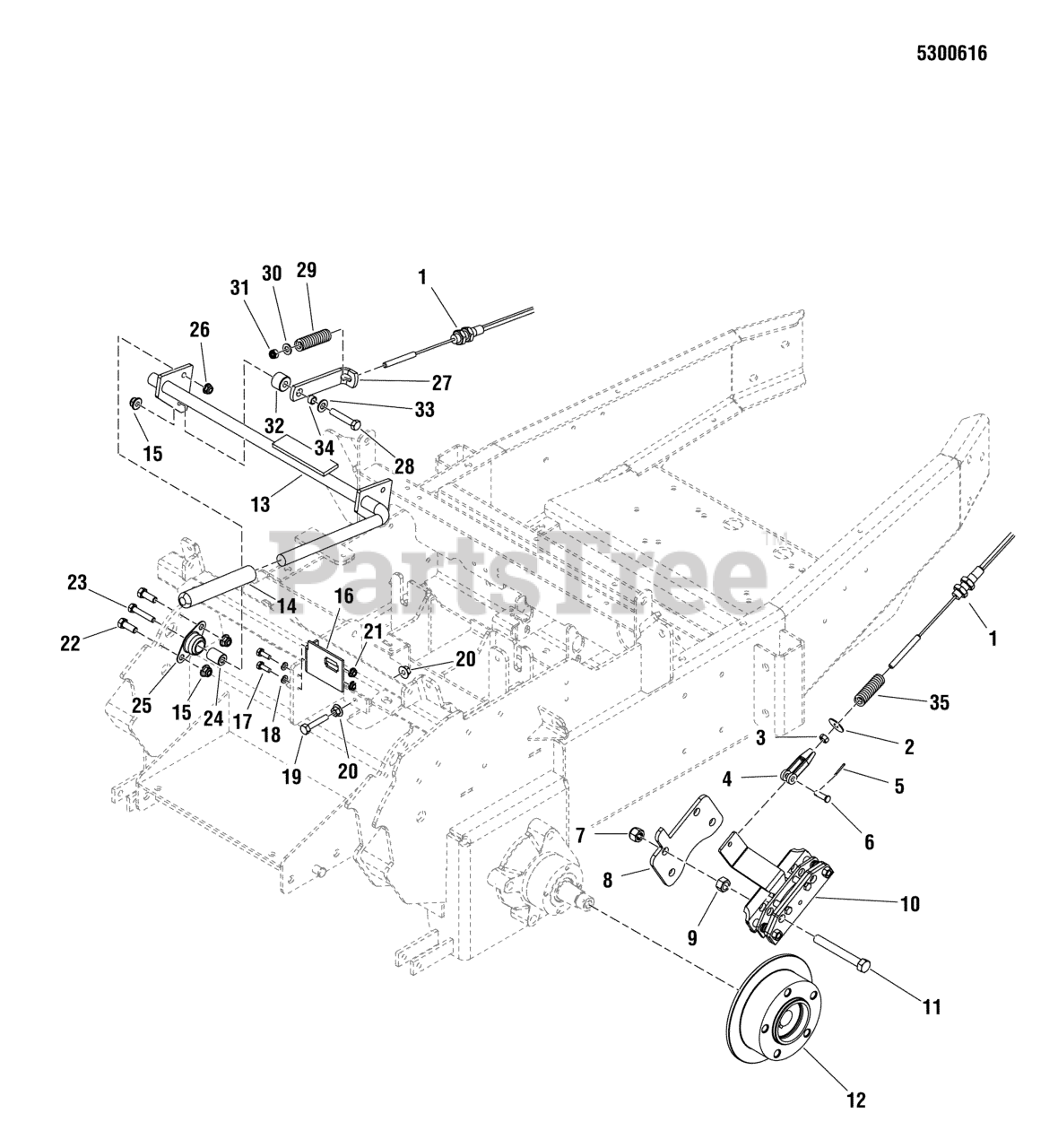

Parking Brake Group Parts Diagram

  • Title

1

Snapper Pro 5100115

CABLE, PARKING BRAKE IS2000
(Superseded to 5100115SM)

$101.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$4.49

$

In Stock, only 2 left!

0

3

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

6

Snapper Pro 5025213X8

PIN-CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5402775D

MOUNT, BRAKE CALIPER - RED
(Superseded to 5402775DYP)

$18.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$8.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5100774

COMPACT CALIPER, AUSCO (86978)
(Superseded to 5100774YP)

$197.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5100775

WHEEL HUB, COMPACT CALIPER (86720)
(Superseded to 5100775YP)

$308.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5403154D

WELD, BRAKE SHAFT - RED
(Superseded to 5403154DYP)

$270.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

$7.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Snapper Pro 5404327D

BRACKET, SWITCH MOUNT - RED
(Superseded to 5404327DYP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025055X14

BOLT- 5/16-18 X 1-3/4 GD5 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 7

0

21

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

23

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

24

Snapper Pro 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.99

$

In Stock, only 3 left!

0

25

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$14.99

$

In Stock, only 3 left!

0

26

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

28

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 20+

0

29

Snapper Pro 5048719

SPRING-COMP, .75 X .162 X 2.5
(Superseded to 5048719SM)

$10.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

31

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

32

Snapper Pro 5043815

SPACER, .39 X 1.00 X .75
(Superseded to 5043815YP)

$11.99

$

In Stock, only 1 left!

0

33

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper Pro 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

In Stock, only 2 left!

0

35

Snapper Pro 5021494

SPRING, COMPRESSION, 5-1/2
(Superseded to 5021494SM)

$14.99

$

Usually ships in 2-12 days

0
