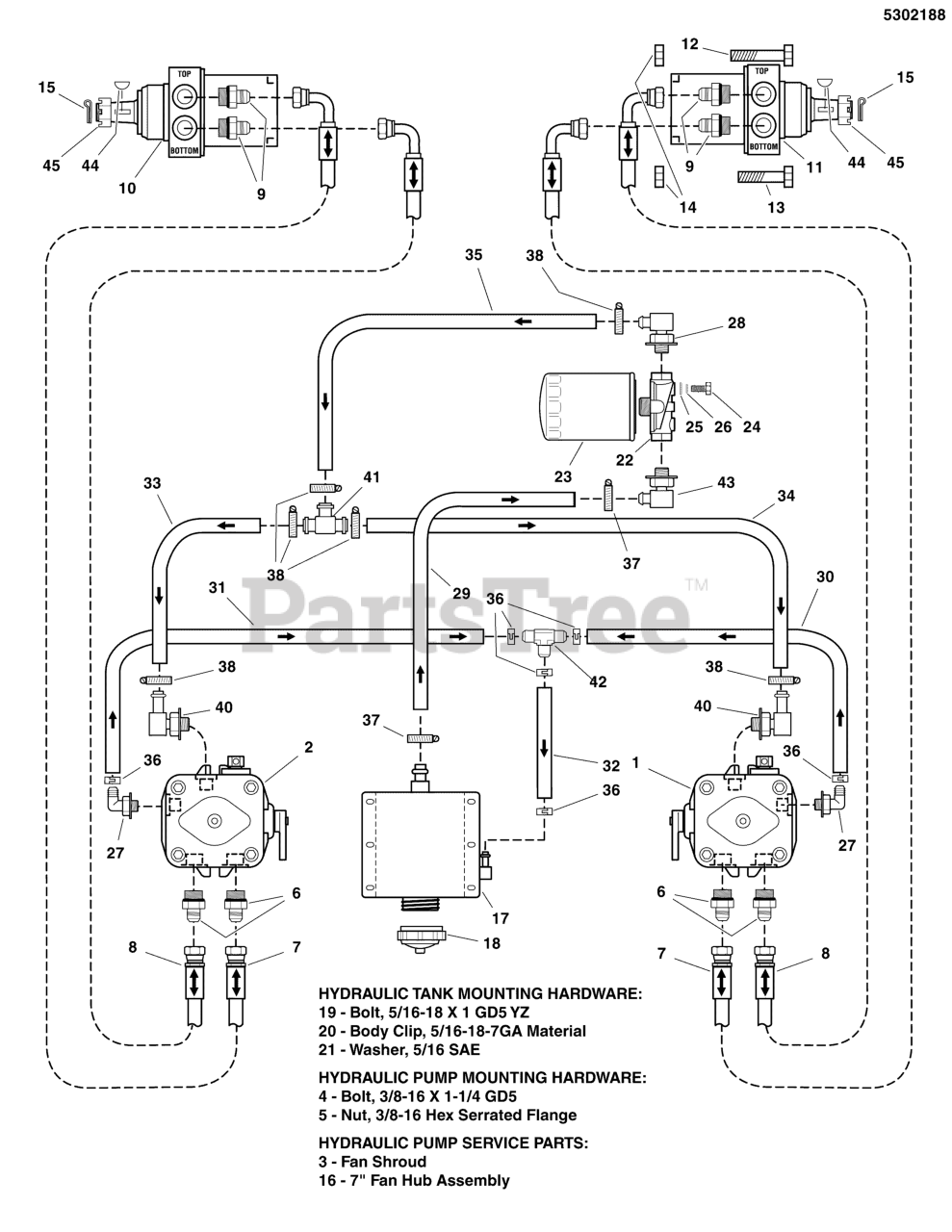

S 800X (5900924) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Hydraulic Group (Diesel Models) Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

Hydraulic Group (Diesel Models) Parts Diagram

  • Title

1

Snapper Pro 5101688

PUMP, 16CC, PR-2KBQ-GV1F-XXXX
(Superseded to 5101688YP)

$1231.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5101687

PUMP, 16CC, PR-2HBQ-GV1F-XXXX
(Superseded to 5101687YP)

$1231.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5100162

FAN SHROUD
(Superseded to 5100162SM)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025015X10

BOLT, 7/16-14 X 1-1/4 GD5 YZ

$

$

Currently unavailable

5

Snapper Pro 5025533

NUT, HEX, 7/16-14, SER, FLG, GD5, YZ
(Superseded to 5025533FS)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5022633

ADAPTER, HYD.
(Superseded to 5022633SM)

$13.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5022887

HOSE ASSEMBLY (33)
(Superseded to 5102096YP)

$169.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5102110

HOSE ASSEMBLY, (29)
(Superseded to 5102110YP)

$151.99

$

In Stock, Qty 11

0

9

Snapper Pro 5022634

ADAPTER, HYD.
(Superseded to 5022634SM)

$16.99

$

In Stock, only 3 left!

0

10

Snapper Pro 5102637

WHEEL MOTOR, LH, 17.1 CI
(Superseded to 5102637YP)

$1131.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5102636

WHEEL MOTOR, RH, 17.1 CI
(Superseded to 5102636YP)

$1055.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025475

BOLT, 1/2-13 X 2-1/2, NYLON PATCH
(Superseded to 5025475YP)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023481

BOLT, 1/2-13 X 2-1/4 PATCH
(Superseded to 5023481SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025330

NUT, 1/2-13 SQUARE
(Superseded to 5025330SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5022571X1

7" FAN HUB ASSEMBLY, HYDROGEAR #70811
(Superseded to 5100161X1SM)

$71.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5102178

RESERVOIR, HYDR, 3 QT
(Superseded to 5102178FS)

$153.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5100017

CAP, HYDRAULIC, SHIELDED VENT
(Superseded to 5100017SM)

$25.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

20

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

21

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Snapper Pro 5023096

FILTER HEAD, HYDRAULIC
(Superseded to 5023096SM)

$54.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0

24

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

25

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 18

0

27

Snapper Pro 5023267

ADAPTER, 90 DEG, 9/16-3/8 BARB
(Superseded to 5023267SM)

$32.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5100370

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG
(Superseded to 5100370YP)

$19.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5050933X4P25

HOSE, 5/8 PUSH-LOCK, 4.25"
(Superseded to 5050933X4P25FS)

$9.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5050860X11P5

HOSE, 3/8" PUSH-LOCK, 11.50"
(Superseded to 5050860X11P5FS)

$13.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5050860X29P25

HOSE, 3/8" PUSH-LOCK, 29.25"
(Superseded to 5050860X29P25FS)

$30.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5050860X19P5

HOSE, 3/8" PUSH-LOCK, 19.50"
(Superseded to 5050860X19P5FS)

$23.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5050857X21

HOSE, 1/2" PUSH-ON, 21.00"
(Superseded to 5050857X21FS)

$30.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5050857X12

HOSE, 1/2" PUSH-ON, 12.00"
(Superseded to 5050857X12FS)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5050857X3

HOSE, 1/2" PUSH-ON, 3.00"
(Superseded to 5050857X3FS)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper Pro 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$4.49

$

In Stock, only 2 left!

0

38

Snapper Pro 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

39

Snapper Pro 5021029

CABLE TIE, 12
(Superseded to 5021029SM)

$

$

Not available

40

Snapper Pro 5102498

FITTING, EXTRA LG, 90, 1/2 TUBE - 3/4-16
(Superseded to 5102498YP)

$50.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5101693

FITTING, BEADED TEE, 1/2 X 1/2 X 1/2, YZ
(Superseded to 5101693YP)

$23.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5022920

FITTING, TEE, 1/2 HOSE
(Superseded to 5022920SM)

$20.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5023267

ADAPTER, 90 DEG, 9/16-3/8 BARB
(Superseded to 5023267SM)

$32.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5022042X2

KEY (SV)
(Superseded to 5022042X2SM)

$11.99

$

In Stock, Qty 7

0

45

Snapper Pro 5022042X3

NUT, CASTLE (SV)
(Superseded to 5022042X3SM)

$35.99

$

In Stock, only 3 left!

0
