S 800X (5900925) - Snapper Pro 61" Mower Deck 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

61" Mower Deck

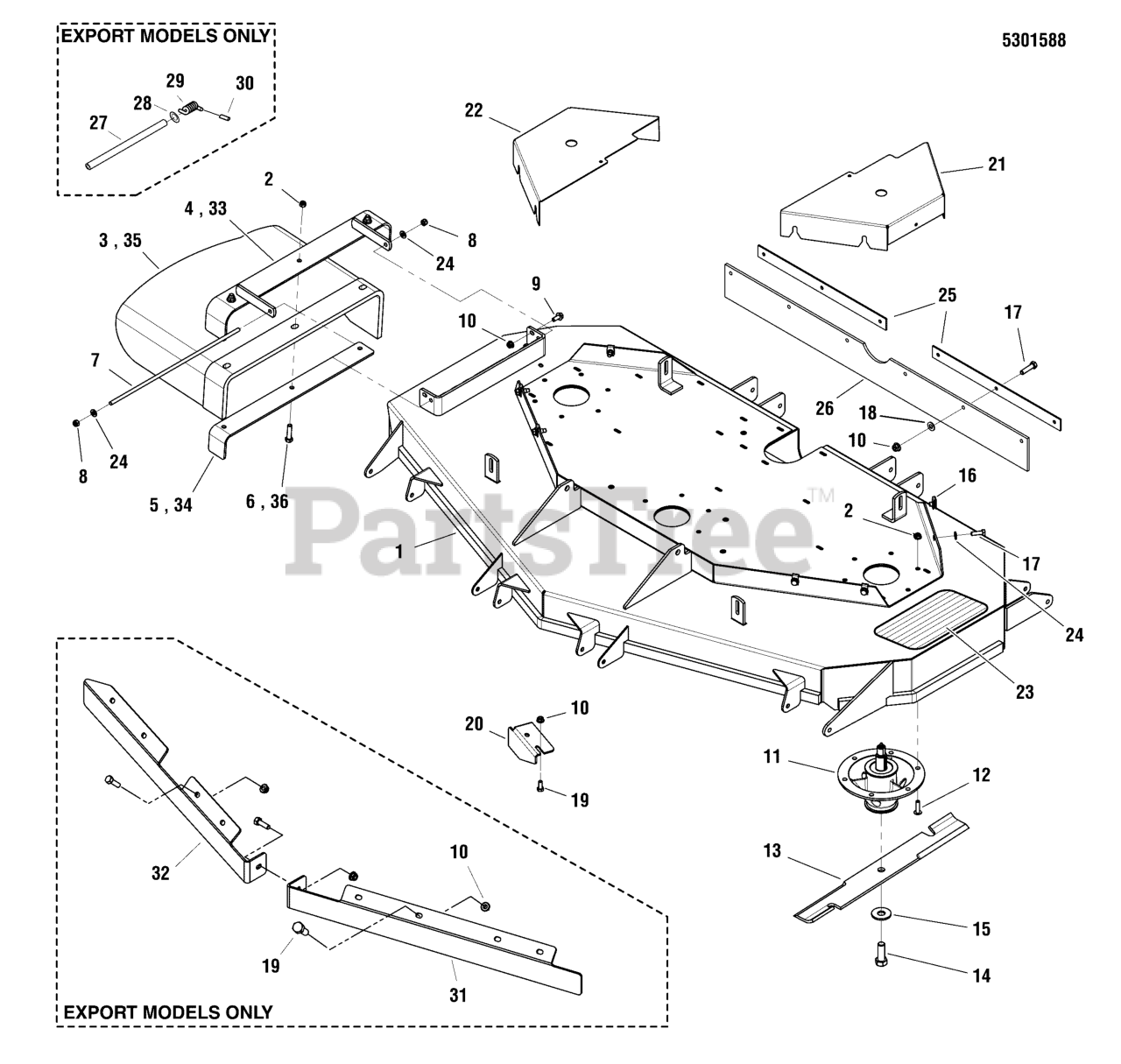

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5600433

DECK SHELL W/ DECALS, 61, S800X

Note: (Export Models)

$

$

Currently unavailable

1

Snapper Pro 5600439

DECK SHELL W/ DECALS, 61, S800X

Note: (Deck S/N: 2014033405 & Above)

$

$

Currently unavailable

1

Snapper Pro 5600294

DECK SHELL W/ DECALS, 61, S800X

Note: (Deck S/N: 2014033404 & Below)

$

$

Currently unavailable

2

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

3

Snapper Pro 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

Note: (S/N: 2017094785 & Below)

$

$

Currently unavailable

4

Snapper Pro 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

Note: (S/N: 2017094785 & Below)

$100.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

Note: (S/N: 2017094785 & Below)

$22.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017094785 & Below)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

7

Snapper Pro 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (Export Models Use Qty. 19)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5101755S

BLADE, 21" (SET OF 3)

Note: (Includes 3 blades)

$

$

Not available

14

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

16

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

17

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

Note: (Export Models Use Qty. 12)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5403163D

GUARD, 61, LH - OUTFRONT - RED

$

$

Not available

22

Snapper Pro 5403164D

GUARD, 61, RH - OUTFRONT - RED

$

$

Not available

23

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

25

Snapper Pro 5405321D

PLATE, SUPPORT, S800X - RED

$

$

Not available

26

Snapper Pro 5102036

FLAP, STRIPER, 61 DECK
(Superseded to 5102036YP)

$90.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5050086X10P75

TUBE, 1/2 X 3/8 X 10.75 BLACK POLY
(Superseded to 5050086X10P75YP)

Note: (Export Models)

$14.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

Note: (Export Models)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (Export Models)

$8.49

$

In Stock, only 1 left!

0

30

Snapper Pro 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (Export Models)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5406717A

BAFFLE, BLOWOUT, 61 ICD, LH - BLK

Note: (Export Models)

$44.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5406818A

BAFFLE, BLOWOUT, 61 ICD, RH - BLK

Note: (Export Models)

$36.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 84008171

MOUNT

Note: (S/N: 2017094786 & Above)

$136.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017094786 & Above)

$28.99

$

In Stock, Qty 6

0

35

Snapper Pro 5413499

CHUTE, RUBBER DISCHARGE (5413499)

Note: (S/N: 2017094786 & Above)

$160.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017094786 & Above)

$3.99

$

In Stock, only 1 left!

0
