S 800X (5900925) - Snapper Pro 61" Mower Deck 61" Mower Deck - Pusher Bars Parts Diagram

61" Mower Deck

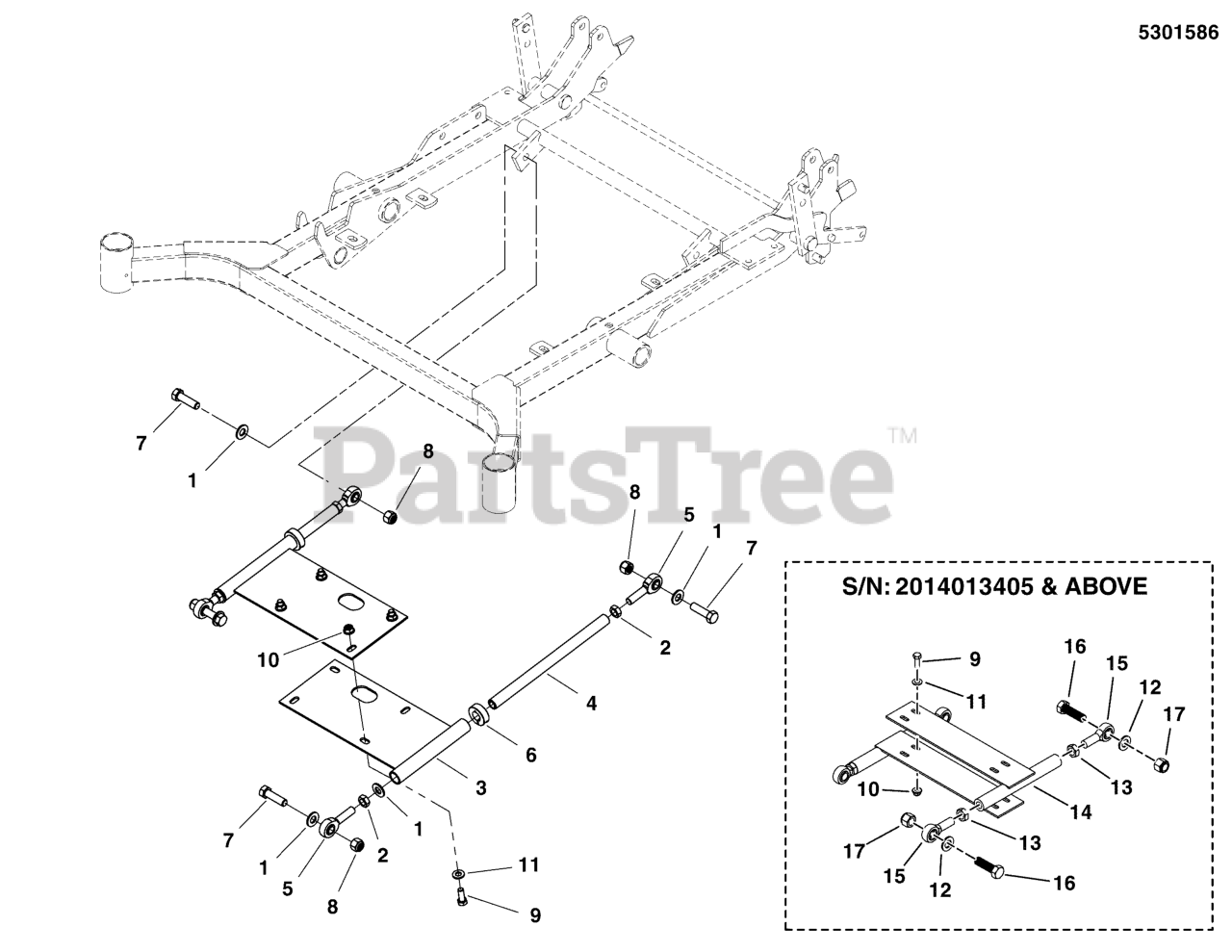

61" Mower Deck - Pusher Bars Parts Diagram

  • Title

1

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2014013404 & BELOW)

$3.99

$

In Stock, Qty 7

0

2

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

Note: (S/N: 2014013404 & BELOW)

$3.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5403270D

WELD, DECK STABILIZER - RED

Note: (S/N: 2014013404 & BELOW)

$81.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5100155

SHAFT, DECK STABILIZER
(Superseded to 5100155SM)

Note: (S/N: 2014013404 & BELOW)

$40.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

Note: (S/N: 2014013404 & BELOW)

$42.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5010114

COLLAR, 3/4 SPLIT
(Superseded to 5010114SM)

Note: (S/N: 2014013404 & BELOW)

$19.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

Note: (S/N: 2014013404 & BELOW)

$2.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

Note: (S/N: 2014013404 & BELOW)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

10

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025281

WASHER, 5/8 SAE
(Superseded to 5025281SM)

Note: (S/N:2014013405 & ABOVE)

$3.99

$

In Stock, only 3 left!

0

13

Snapper Pro 5025454

NUT, 5/8-18, HEX JAM
(Superseded to 5025454SM)

Note: (S/N:2014013405 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5407058D

WELD, DECK STABILIZER - RED

Note: (S/N:2014013405 & ABOVE)

$

$

Not available

15

Snapper Pro 5102683

BALL JOINT, 5/8-18, MALE
(Superseded to 5102683YP)

Note: (S/N:2014013405 & ABOVE)

$36.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025019X20

BOLT, HEX, 5/8-11 X 21/2, GD5, CZ
(Superseded to 5025019X20YP)

Note: (S/N:2014013405 & ABOVE)

$7.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025403

NUT, 5/8-11 HEX NYLON LOCK
(Superseded to 5025403YP)

Note: (S/N:2014013405 & ABOVE)

$6.99

$

In Stock, only 4 left!

0
