S1000 (8838-0) - Generac 750 Watt Portable Generator AC Generator No. 67409 Parts Diagram

750 Watt Portable Generator

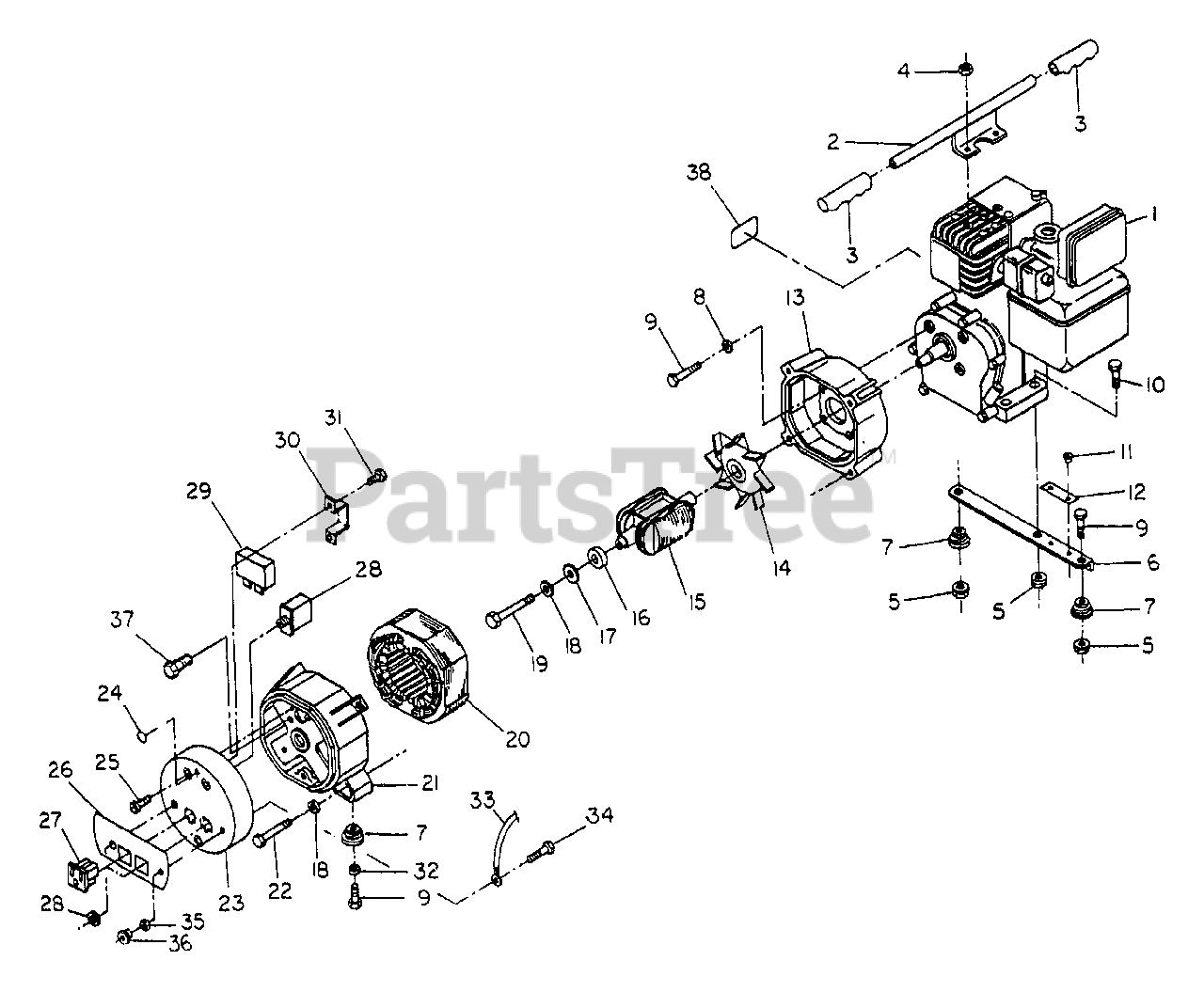

AC Generator No. 67409 Parts Diagram

  • Title

1

Briggs & Stratton 66898

ENGINE- Kawasaki FA 76

$

$

Not available

2

Briggs & Stratton 66899

HANDLE, Carrying

$

$

Currently unavailable

3

Briggs & Stratton 66826

GRIP, Handle

$

$

Currently unavailable

4

Briggs & Stratton 49813

NUT, Hex- M6-1.00
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66834

NUT, Flanged Lock- M8-1.25

$

$

Currently unavailable

6

Briggs & Stratton 67400

SUPPORT, Engine

$

$

Currently unavailable

7

Briggs & Stratton 67401

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

WASHER, Lock- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 66889

SCREW, Hex Head Machine- M8-1.25 x 20mm

$

$

Currently unavailable

10

Briggs & Stratton 39414

SCREW, Hex Head Machine- M8-1.25 x 35mm
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66829

RIVET- (Aluminum)- 3mm

$

$

Currently unavailable

12

Briggs & Stratton 67402

PLATE, Data

$

$

Currently unavailable

13

Briggs & Stratton 65775

HOUSING, Adapter
(Superseded to 65775GS)

$84.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 67403

FAN, Cooling

$

$

Not available

15

Briggs & Stratton 67404

WINDING ASSEMBLY, Rotor

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 65793

WASHER, Flat (Special)- M6

$

$

Currently unavailable

18

Briggs & Stratton 22097

WASHER, Lock- M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65792A

BOLT, Rotor- M6-1.00 x 140 mm

$

$

Currently unavailable

20

Briggs & Stratton 67406

ASSEMBLY, Stator

$

$

Currently unavailable

21

Briggs & Stratton 66373

CARRIER, Rear Bearing

$

$

Currently unavailable

22

Briggs & Stratton 66449B

BOLT, Stator- M6-1.00 x 75mm

$

$

Currently unavailable

23

Briggs & Stratton 67112

CUP, Control Panel

$

$

Currently unavailable

24

Briggs & Stratton 66864

DECAL- U.S.D.A. (Forestry)

$

$

Not available

25

Briggs & Stratton 67408

SCREW, Pan Head Machine- M6-1.00 x 55mm (Black Anodized)

$

$

Currently unavailable

26

Briggs & Stratton 67236

DECAL, Control Panel

$

$

Currently unavailable

27

Briggs & Stratton 66818

RECEPTACLE- 120 Volts a-c
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66888

BREAKER, Circuit- 6.3 Amperes

$

$

Not available

29

Briggs & Stratton 66800

CAPACITOR, Excitation

$

$

Currently unavailable

30

Briggs & Stratton 67113

BRACKET, Excitation Capacitor

$

$

Currently unavailable

31

Briggs & Stratton 67114

SCREW- M4-0.70 x 8mm (Self-Threading for Plastic)

$

$

Currently unavailable

32

Briggs & Stratton 49810

WASHER, Flat- M8
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 672305

WIRE, Ground (Green)

$

$

Currently unavailable

34

Briggs & Stratton 49815

SCREW, Hex Head Machine- M5-0.80 x 16mm
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52856

NUT, Lock- M5-0.80
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67435

NUT, Wing- M5-0.80

$

$

Currently unavailable

37

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.8 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 67483A

DECAL, Data

$

$

Currently unavailable

Briggs & Stratton 67413

MANUAL, Owner's
(Superseded to 67413GS)

$14.99

$

Usually ships in 2-12 days

0
