S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL 286707-0116-01 Parts Diagram

Lawn Tractor

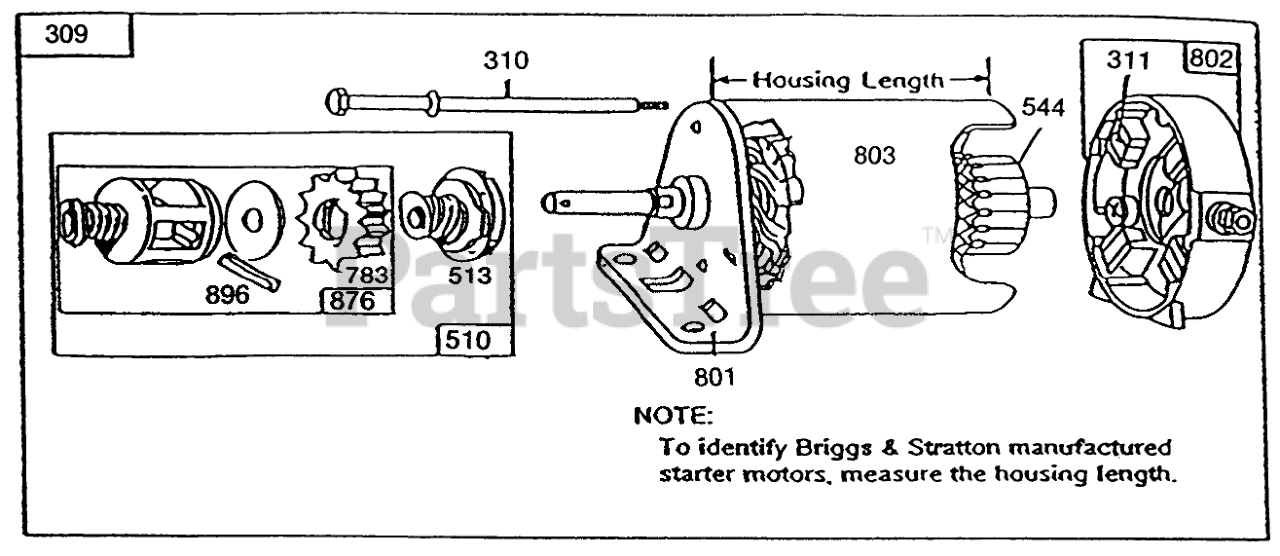

ENGINE BRIGGS & STRATTON MODEL 286707-0116-01 Parts Diagram

  • Title

5

Briggs & Stratton 494240

Head-Cylinder

$

$

Not available

309

Briggs & Stratton 494198

Motor & Drive Assembly
(Superseded to 795121)

$128.99

$

In Stock, Qty 8

0

310

Briggs & Stratton 94004

Bolt
(Superseded to 691263)

$

$

Not available

311

Briggs & Stratton 395538

Brush Set

$

$

Not available

510

Briggs & Stratton 490421

Drive Assembly (Incl. Ref. #513, 783, 876 & 896)
(Superseded to 696540)

$31.99

$

In Stock, Qty 5

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

$23.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 391160

Armature Assembly

$

$

Not available

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.49

$

In Stock, Qty 12

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$92.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End

$59.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 494205

Housing Assembly

$76.99

$

In Stock, only 1 left!

0

876

Briggs & Stratton 490467

Gear Kit
(Superseded to 696540)

$31.99

$

In Stock, Qty 5

0

896

Briggs & Stratton 94288

Gear
(Superseded to 691641)

$5.49

$

Usually ships in 2-12 days

0
