S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) Hood Fender Assembly Parts Diagram

Lawn Tractor

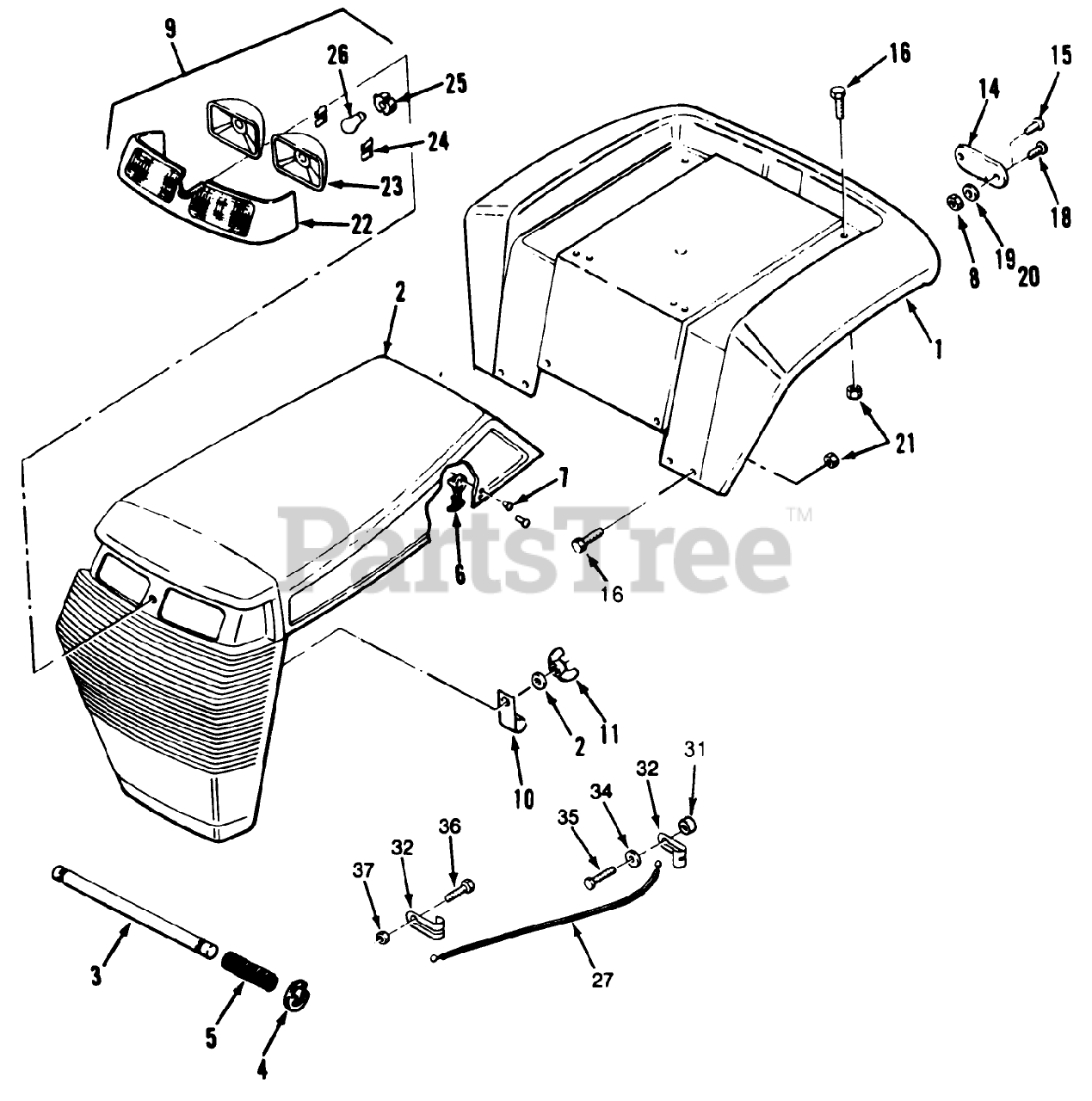

Hood Fender Assembly Parts Diagram

  • Title

1

Toro 114389

FENDER *R

$911.99

$

Usually ships in 3-6 days

0

2

Toro 78-8790

See Supercession: 116260
(Superseded to 116260)

$1223.99

$

Usually ships in 3-6 days

0

3

Toro 111480

ROD

$140.99

$

Usually ships in 3-6 days

0

4

Toro 107772

See Supercession: 32151-73
(Superseded to 32151-73)

$3.49

$

In Stock, Qty 6

0

5

Toro 111536

SPRING

$

$

Not available

6

Toro 117344

HANDLE ASM

$39.99

$

In Stock, only 1 left!

0

7

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

8

Toro 915551

See Supercession: 3219-14
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

9

Toro 116591

DISCONTINUED

$

$

Not available

10

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

11

Toro MW8756

See Supercession: 32103-19
(Superseded to 32103-19)

$1.49

$

In Stock, only 2 left!

0

12

Toro 103995

WASHER

$9.99

$

Usually ships in 3-6 days

0

14

Toro 108547

DISCONTINUED
(Superseded to 106557)

$

$

Not available

15

Toro 109193

See Supercession: 3290-282
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 7

0

16

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 2 left!

0

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

18

Toro 910808

See Supercession: 3250-25
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 920004

WASHER

$

$

Not available

20

Toro 920079

See Supercession: 3253-17
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 5

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 116601

DISCONTINUED

$

$

Not available

23

Toro 111684

LIGHT POD

$

$

Not available

24

Toro 111685

RETAINER

$

$

Not available

25

Toro 116262

SOCKET-HEADLIGHT

$59.99

$

Usually ships in 3-6 days

0

26

Toro 7228

BULB

$25.99

$

In Stock, only 2 left!

0

27

Toro 115414

CABLE-ASS'Y

$

$

Not available

31

Toro 115510

Spacer

$

$

Currently unavailable

32

Toro 115413

DISCONTINUED

$

$

Not available

34

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

35

Toro 908005

See Supercession: 321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

36

Toro 913111

See Supercession: 3290-321
(Superseded to 3290-321)

$4.99

$

Usually ships in 3-6 days

0

37

Toro 915740

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0
