S2400 (8970-0) - Generac 2,250 Watt Portable Generator S2400 Generator No. 71382 Parts Diagram

2,250 Watt Portable Generator

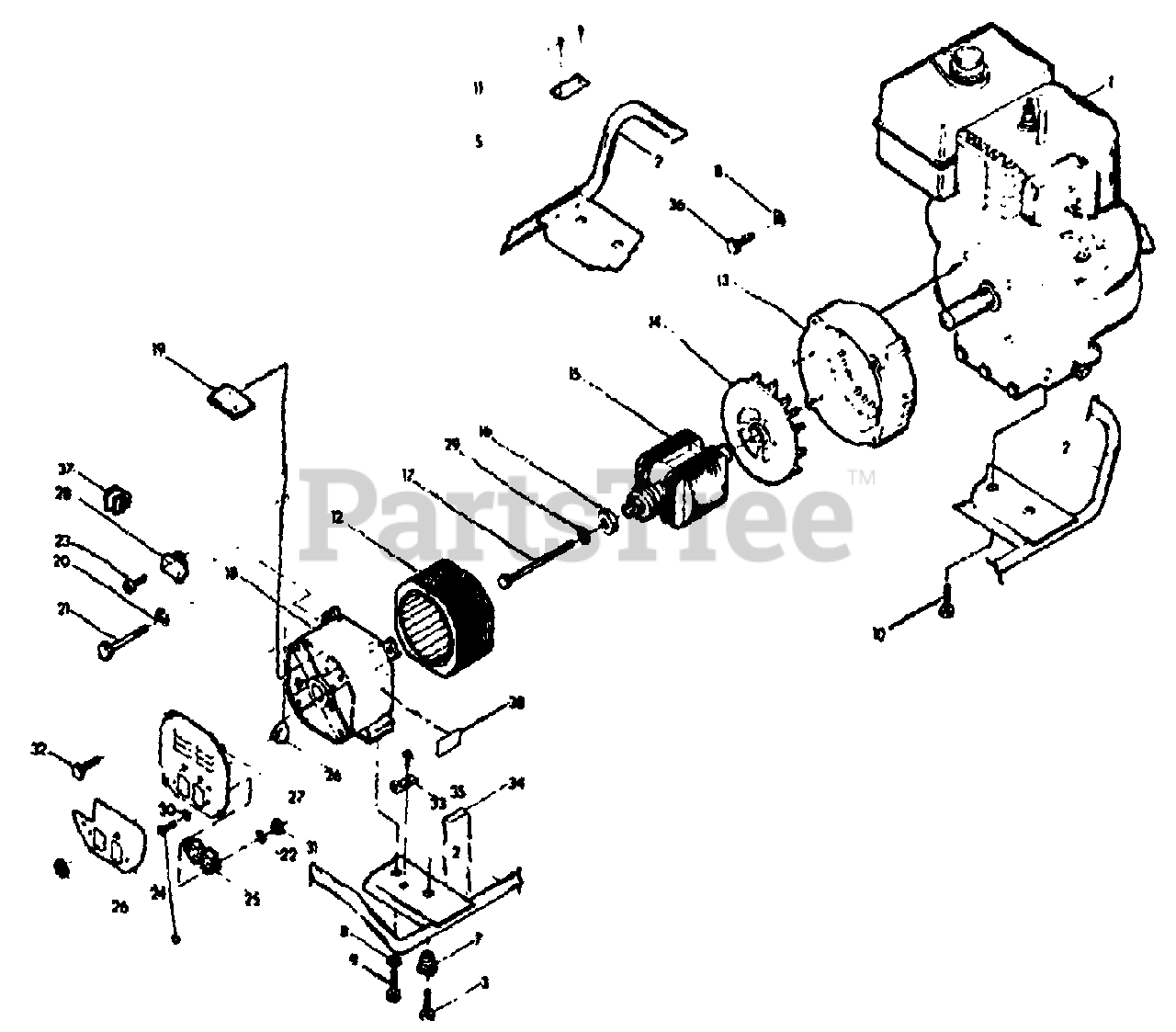

S2400 Generator No. 71382 Parts Diagram

  • Title

1

Briggs & Stratton 68770

ENGINE - Briggs & Stratton Model 190232-5205-01

$

$

Currently unavailable

2

Briggs & Stratton 72090

CRADLE
(Superseded to 7072090YP)

$136.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910

SCREW (Taptite) - 5/16"-18 x 1/2"

$

$

Not available

5

Briggs & Stratton 67430G

PLATE, Serial

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, Pan Head Machine - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, Hex Head Machine - M8- 1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW (Taptite) - 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 36261

RIVET (Stainless Steel)

$

$

Not available

12

Briggs & Stratton 70420

STATOR

$

$

Currently unavailable

13

Briggs & Stratton 66365F

HOUSING, Engine Adaptor
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

15

Briggs & Stratton 72064

ROTOR

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 36180

BOLT, Rotor - 5/16" 24 x 6.3/8"
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, Circuit - Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

WASHER, Lock - M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449B

BOLT, Stator - M8-1.00 x 90mm

$

$

Currently unavailable

22

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

23

Briggs & Stratton 66849

SCREW (Taptite) - M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 72277

DECAL - Receptacle Panel

$

$

Currently unavailable

25

Briggs & Stratton 69759

RECEPTACLE - 120 volts, 20 amp

$

$

Currently unavailable

26

Briggs & Stratton 66819

BREAKER, Circuit - 20 amp

$

$

Currently unavailable

27

Briggs & Stratton 72092

PANEL, Receptacle
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386

HOLDER ASSEMBLY, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 67451

WASHER, Flat (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

WASHER, Serrated - No. 6
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66849B

SCREW (Taptite) - M5-0.80 x 8mm
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 67210A

DECAL - Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW (Taptite) - No. 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22336

SCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72296

DECAL - Data
(Superseded to 7072296YP)

$33.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 71383

MANUAL, Owner's

$

$

Not available
