S2400 (8970-2) - Generac 2,250 Watt Portable Generator Generator No. 75419 Parts Diagram

2,250 Watt Portable Generator

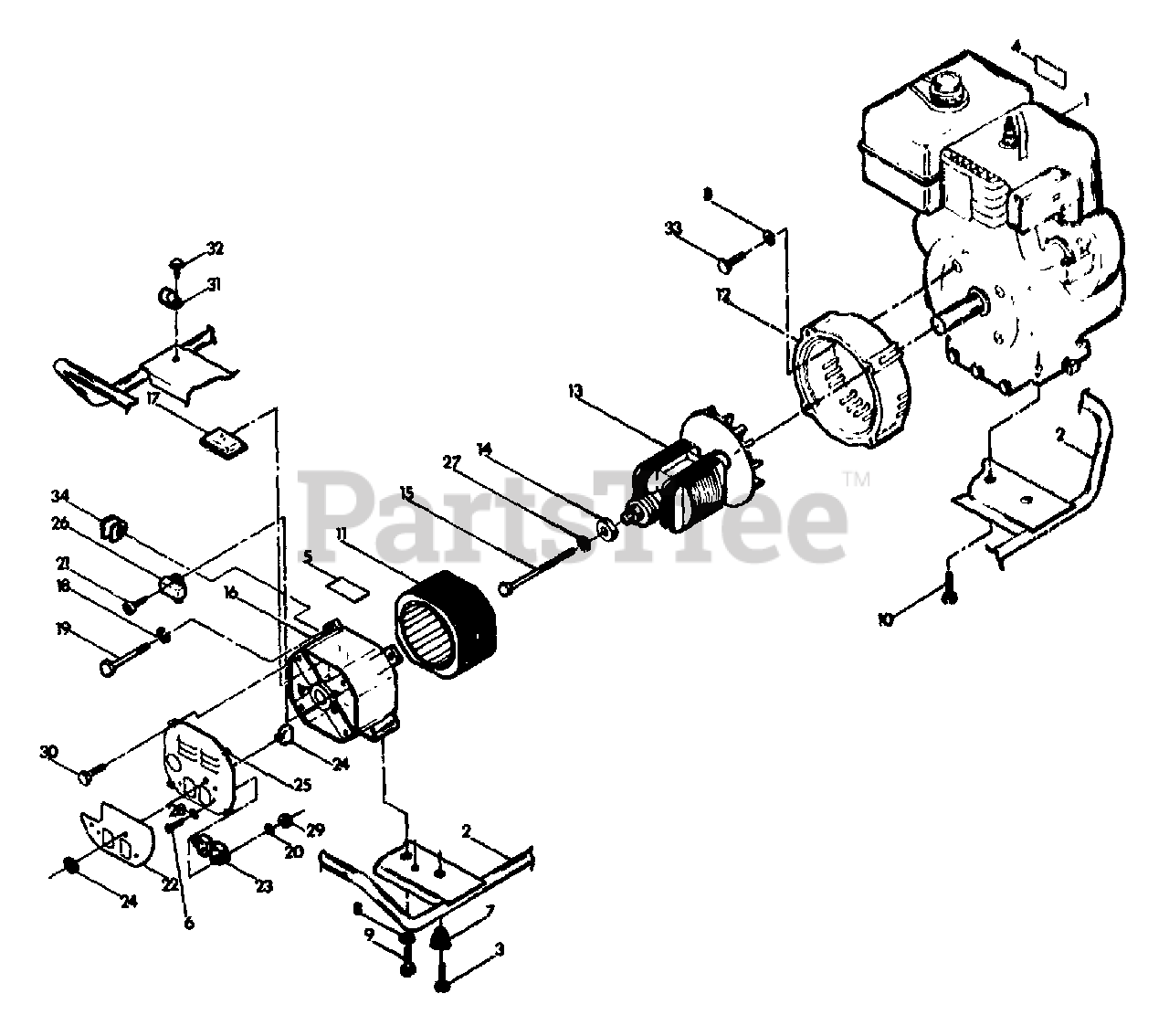

Generator No. 75419 Parts Diagram

  • Title

1

Briggs & Stratton 68770

ENGINE- Briggs & Stratton Model 130232-5205-01

$

$

Currently unavailable

2

Briggs & Stratton 72090

CRADLE ASSY
(Superseded to 7072090YP)

$136.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910

SCREW (Taptite) 5/16"-18 x 1/2"

$

$

Not available

4

Briggs & Stratton 39178

DECAL- Caution!

$

$

Currently unavailable

5

Briggs & Stratton 72079

DECAL- Warning!

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, Pan Head Mach. No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCKWASHER- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, Hex Head Mach. M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW (Taptite) 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 74706

STATOR ASSY
(Superseded to 5020884SM)

$25.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 66365F

HOUSING, Engine Adapter
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74713

ROTOR ASSY

$

$

Currently unavailable

14

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

BOLT, Rotor 5/16"-24 x 6.25"

$

$

Not available

16

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

17

Briggs & Stratton 66850

BOARD, Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

LOCKWASHER- M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449C

BOLT, Stator- M8-1.00 x 80mm

$

$

Currently unavailable

20

Briggs & Stratton 22264

LOCKWASHER- No. 8

$

$

Not available

21

Briggs & Stratton 66849

SCREW (Taptite) M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 72277

DECAL- Receptacle Panel

$

$

Currently unavailable

23

Briggs & Stratton 68759

RECEPTACLE 120 Volts a-c, 20 amp
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 66819

BREAKER, Circuit- 20 amp

$

$

Currently unavailable

25

Briggs & Stratton 72092

PANEL, Receptacle
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 67451

FLATWASHER (Special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCKWASHER (Serrated) No. 6
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW (Taptite) M5-0.80 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

32

Briggs & Stratton 24489

SCREW (Taptite) No. 10-24 x 1/2"

$

$

Currently unavailable

33

Briggs & Stratton 22336

SCREW, Hex Head 5/16"-24 x 3/4"

$

$

Not available

34

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0
