S2400 (8970-3) - Generac 2,400 Watt Portable Generator S2400 Generator Model No. 8970-3 Parts Diagram

2,400 Watt Portable Generator

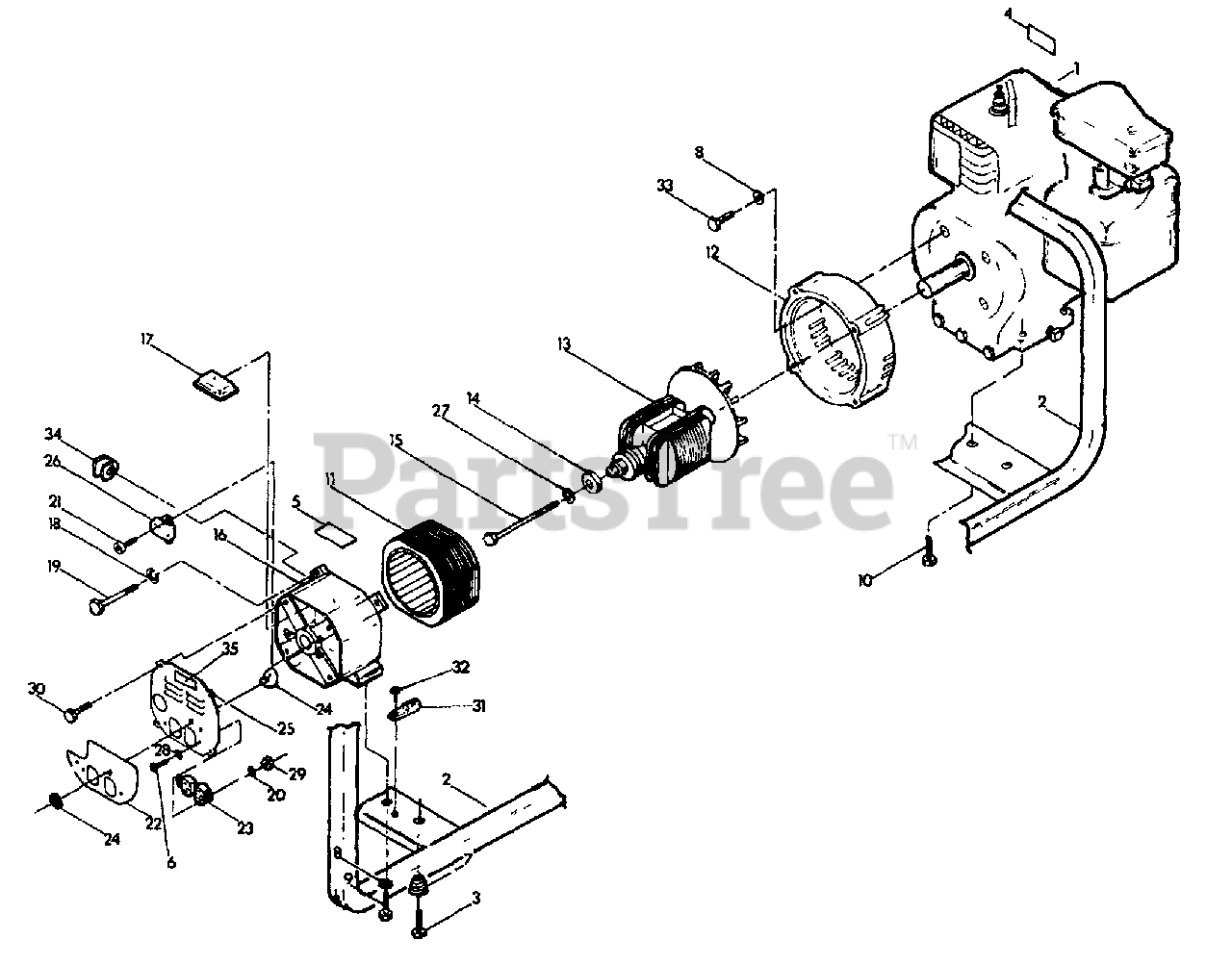

S2400 Generator Model No. 8970-3 Parts Diagram

  • Title

1

Briggs & Stratton 76515

ENGINE-BRIGGS & STRATTON
(Superseded to 7076515YP)

$10.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 75967

CRADLE ASSEMBLY

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW (TAPTITE)-5/16"-18 x 1/2"

$

$

Not available

4

Briggs & Stratton 39178

DECAL-CAUTION

$

$

Currently unavailable

5

Briggs & Stratton 72079

DECAL-WARNING

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, PAN HD. MACH.-NO.8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, VIBRATION

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, HEX HD. MACH.-M8-1.25 x 20MM
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW, (TAPTITE)-3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 74706

STATOR ASSEMBLY
(Superseded to 5020884SM)

$25.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 66365F

HOUSING, ENGINE ADAPTOR
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74713

ROTOR ASSEMBLY

$

$

Currently unavailable

14

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

BOLT, ROTOR-5/16"-24 x 6.25

$

$

Not available

16

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

17

Briggs & Stratton 66850

BOARD, CIRCUIT BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449C

BOLT, STATOR M6-1.00 x 80MM

$

$

Currently unavailable

20

Briggs & Stratton 22264

LOCK WASHER-NO.8

$

$

Not available

21

Briggs & Stratton 66849

SCREW (TAPTITE)-M5-0.80 x 15MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 72277

DECAL RECEPTACLE PANEL

$

$

Currently unavailable

23

Briggs & Stratton 68759

RECEPTACLE-120 VOLTS AC, 20AMP
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 66819

BREAKER, CIRCUIT-20AMP

$

$

Currently unavailable

25

Briggs & Stratton 72092

PANEL, RECEPTACLE
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66386

HOLDER ASSEMBLY, BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 67451

FLAT WASHER-(SPECIAL)

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCK WASHER (SERRATED)-NO.6
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW (TAPTITE)-M5-0.80 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

32

Briggs & Stratton 24489

SCREW, (TAPTITE)-NO. 10-24 x 1/2"

$

$

Currently unavailable

33

Briggs & Stratton 22336

SCREW, HEX HD.-5/16"-24 x 3/4"

$

$

Not available

34

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 74728

DECAL, GROUND NEUTRAL
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0
