S27 BV (1696918-00) (41AR2HBC707) - Snapper Handheld Blower Vacuum Blower Group Parts Diagram

Handheld Blower Vacuum

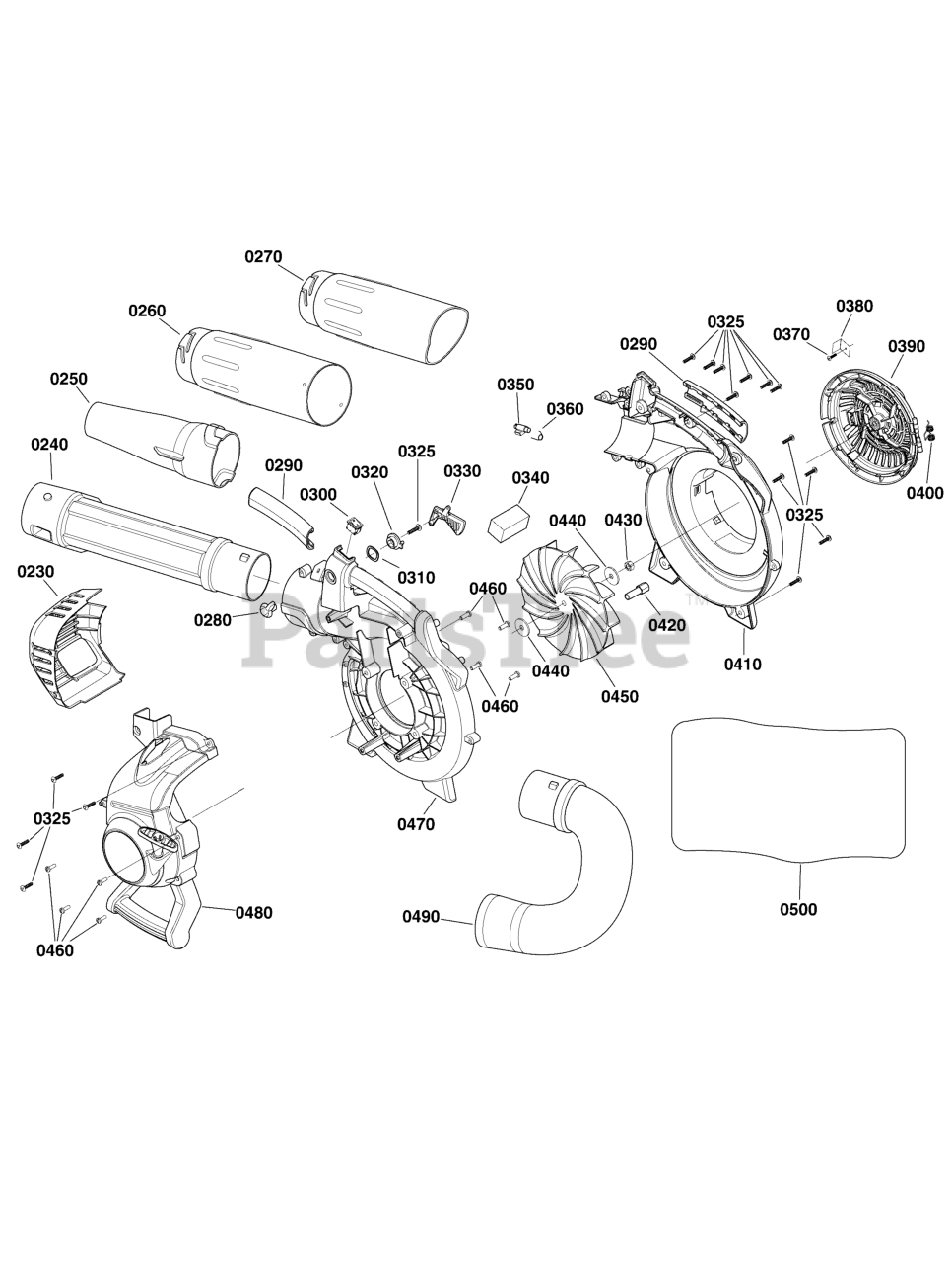

Blower Group Parts Diagram

  • Title

0230

Snapper 772021

ASSEMBLY, Muffler Cover

Note: (Includes 0325)

$10.99

$

Usually ships in 2-12 days

0

0240

Snapper 772022

TUBE, Upper

$35.99

$

Usually ships in 2-12 days

0

0250

Snapper 705645

Nozzle

$28.99

$

Usually ships in 2-12 days

0

0260

Snapper 772023

TUBE, Upper Vac

$51.99

$

Usually ships in 2-12 days

0

0270

Snapper 772024

TUBE, Lower Vac

$91.99

$

Usually ships in 2-12 days

0

0280

Snapper 772025

TRIGGER LOCK, Outer

$7.99

$

Usually ships in 2-12 days

0

0290

Snapper 772026

GRIPS, Handle

$18.99

$

Usually ships in 2-12 days

0

0300

Snapper 771548

ASSEMBLY, Ttigger Switch

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 772027

WASHER, Wavy

$5.99

$

Usually ships in 2-12 days

0

0320

Snapper 772028

TRIGGER LOCK, Inner

$7.99

$

Usually ships in 2-12 days

0

0325

Snapper 772029

SCREW

$10.99

$

Usually ships in 2-12 days

0

0330

Snapper 772030

TRIGGER, Throttle

$8.49

$

Usually ships in 2-12 days

0

0340

Snapper 772031

FILTER, Foam

$11.99

$

Usually ships in 2-12 days

0

0350

Snapper 772032

TUBE, Latch

$7.99

$

Usually ships in 2-12 days

0

0360

Snapper 772033

SPRING, Latch

$7.99

$

Usually ships in 2-12 days

0

0370

Snapper 772034

SCREW

$9.99

$

Usually ships in 2-12 days

0

0380

Snapper 772035

LOCK, Door

$7.99

$

Usually ships in 2-12 days

0

0390

Snapper 772036

COVER, Intake

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 772037

SPRING

$7.99

$

Usually ships in 2-12 days

0

0410

Snapper 772038

HOUSING, Impeller, Front

$85.99

$

Usually ships in 2-12 days

0

0420

Snapper 772039

ADAPTER

$13.99

$

Usually ships in 2-12 days

0

0430

Snapper 772040

NUT

$6.49

$

Usually ships in 2-12 days

0

0440

Snapper 772041

WASHER

$7.99

$

Usually ships in 2-12 days

0

0450

Snapper 772042

IMPELLER

$25.99

$

Usually ships in 2-12 days

0

0460

Snapper 771523

SCREW, Starter

$7.99

$

Usually ships in 2-12 days

0

0470

Snapper 772043

HOUSING, Impeller, Rear

$74.99

$

Usually ships in 2-12 days

0

0480

Snapper 772044

ASSEMBLY, Engine Cover

Note: (Includes 0325 & 0460)

$83.99

$

Usually ships in 2-12 days

0

0490

Snapper 772045

ELBOW

$62.99

$

Usually ships in 2-12 days

0

0500

Snapper 772046

BAG

$60.99

$

Usually ships in 2-12 days

0
