S4000 (8971-4) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

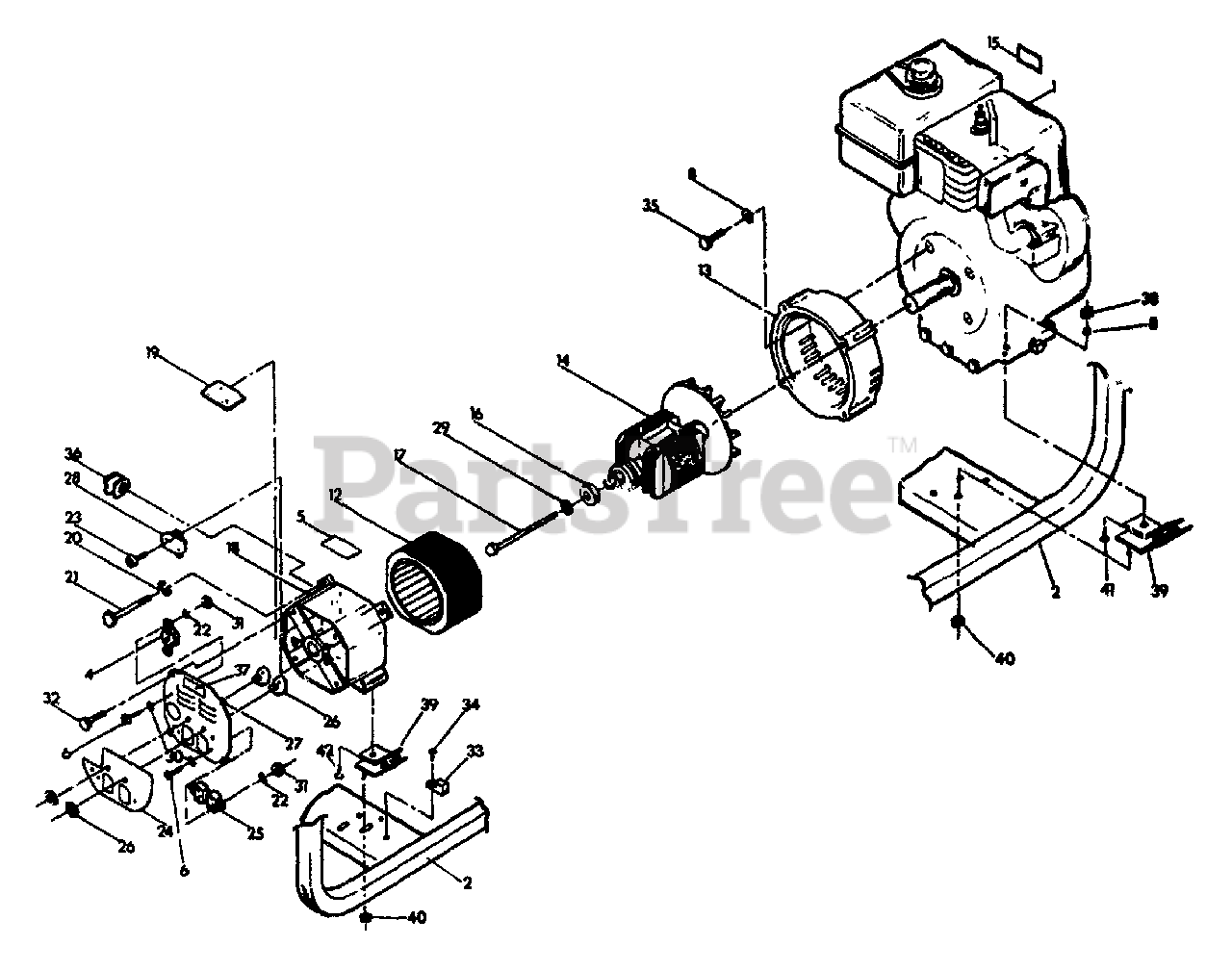

Generator Parts Diagram

  • Title

1

Briggs & Stratton 69649

ENGINE-TECUMSEH HM80

$

$

Currently unavailable

2

Briggs & Stratton 75967

CRADLE ASSEMBLY

$

$

Currently unavailable

4

Briggs & Stratton 68735

RECEPTACLE-240 VOLTS, 20AMP (NEMA 6-20R)

$

$

Not available

5

Briggs & Stratton 72079

DECAL-WARNING

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, PAN HD. MACH.-NO.8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

LOCKWASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22145

FLATWASHER-5/16"

$

$

Not available

12

Briggs & Stratton 74706

STATOR ASSEMBLY
(Superseded to 5020884SM)

$25.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 66355D

HOUSING, ENGINE ADAPTOR

$

$

Currently unavailable

14

Briggs & Stratton 74715

ROTOR ASSEMBLY

$

$

Currently unavailable

15

Briggs & Stratton 39178

DECAL, CAUTION

$

$

Currently unavailable

16

Briggs & Stratton 66791

BEARING, BALL

$

$

Currently unavailable

17

Briggs & Stratton 75428

BOLT, ROTOR 5/16"-24 x 7.75

$

$

Currently unavailable

18

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 66860

BOARD, CIRCUIT-BRIDGE RECTIFIER

$

$

Currently unavailable

20

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449E

BOLT, STATOR-M6-1.00 x 115MM

$

$

Currently unavailable

22

Briggs & Stratton 22264

LOCKWASHER-NO.8

$

$

Not available

23

Briggs & Stratton 66849

SCREW(TAPTITE)-M6-0.80 x 15MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 72288

DECAL-RECEPTACLE PANEL

$

$

Currently unavailable

25

Briggs & Stratton 68759

RECEPTACLE-120 VOLTS AC
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 66819

BREAKER, CIRCUIT-20 AMP

$

$

Currently unavailable

27

Briggs & Stratton 72096

PANEL, RECEPTACLE

$

$

Currently unavailable

28

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 67451

FLAT WASHER-(SPECIAL)

$

$

Currently unavailable

30

Briggs & Stratton 23366

LOCKWASHER (SERRATED)-NO.8

$

$

Currently unavailable

31

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 74906

SCREW, (TAPTITE)-M5-0.80 x 10MM
(Superseded to 74906GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

34

Briggs & Stratton 24489

SCREW, (TAPTITE)-NO. 10-24 x 1/2"

$

$

Currently unavailable

35

Briggs & Stratton 22336

SCREW, HEX HEAD-5/16"-24 x 3/4"

$

$

Not available

36

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 74726

DECAL, GROUND NEUTRAL

$

$

Currently unavailable

38

Briggs & Stratton 45771

HEX NUT-M6-1.25

$

$

Not available

39

Briggs & Stratton 70642

VIBRATION MOUNT
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

40

Briggs & Stratton 52858

FLANGE NUT-LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 76222

PHILIPS PAN HD. MACH. SCR.-M8-1.25 x 40 LONG
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 70644

PHILIPS PAN HD. MACH. SCR.-M8-1.25 x 20MM
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0
