S4001 (8972-2) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

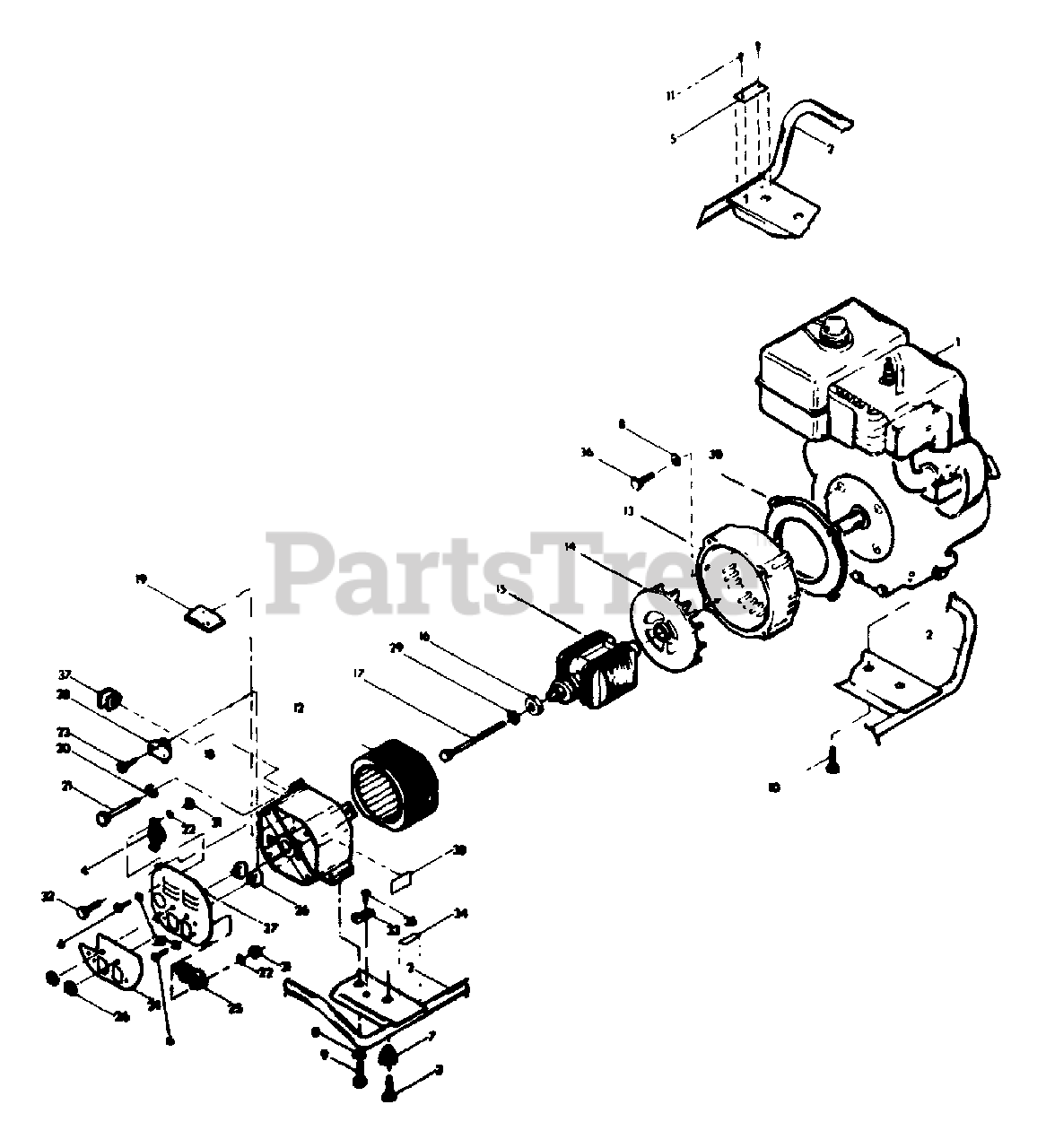

Generator Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE,BRIGGS & STRATTON 8 HP

$

$

Currently unavailable

2

Briggs & Stratton 72095

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW(TAPTITE) - 5/16" - 18 X 1/2"

$

$

Not available

4

Briggs & Stratton 68735

RECEPTACLE - 240 VOLTS. 20 AMP

$

$

Not available

5

Briggs & Stratton ~NSP

PLATE, SERIAL

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, PAN HEAD - NO. 8-32 X 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, VIBRATION

$

$

Currently unavailable

8

Briggs & Stratton 22129

WASHER, LOCK - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, HEX HEAD MACHINE - M8 - 1.25 X 20 MM
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW(TAPTITE) - 3/8"-16 X 3/4"

$

$

Not available

11

Briggs & Stratton 36261

RIVET - STAINLESS STEEL

$

$

Not available

12

Briggs & Stratton 70421

STATOR

$

$

Not available

13

Briggs & Stratton 66365D

HOUSING,ENGINE ADAPTOR
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66389

FAN, GENERATOR COOLING

$

$

Not available

15

Briggs & Stratton 72066

ROTOR

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 73067

BOLT, ROTOR - 5/16"- 24 X 8.25"

$

$

Currently unavailable

18

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, CIRCUIT - BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

WASHER, LOCK - NUT M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449D

BOLT, STATOR - M6-1.00 X 130MM

$

$

Currently unavailable

22

Briggs & Stratton 22264

WASHER, LOCK - NO. 8

$

$

Not available

23

Briggs & Stratton 66849

SCREW(TAPTITE) - M5-0.80 X 15MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 72278

DECAL - RECEPTACLE PANEL

$

$

Currently unavailable

25

Briggs & Stratton 69759

RECEPTACLE - 120 VOLTS A C

$

$

Currently unavailable

26

Briggs & Stratton 66819

BREAKER, CIRCUIT - 20 AMP

$

$

Currently unavailable

27

Briggs & Stratton 72096

PANEL, RECEPTACLE

$

$

Currently unavailable

28

Briggs & Stratton 66386

HOLDER ASSEMBLY, BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 67541

WASHER, FLAT - SPECIAL

$

$

Currently unavailable

30

Briggs & Stratton 23365

WASHER, SERRATED - NO. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 22471

NUT, HEX - NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66849B

SCREW (TAPTITE) - M5-0.80 X 8MM
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

34

Briggs & Stratton 67210A

DECAL GROUND
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW (CRIMPTITE) - NO. 10-24 X 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

SCREW, HEX HEAD - 5/16"-24

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72296

DECAL - DATA
(Superseded to 7072296YP)

$33.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68342

SPACER, ENGINE

$

$

Currently unavailable

Briggs & Stratton 73072A

MANUAL, OWNER'S
(Superseded to 73072AGS)

$14.99

$

Usually ships in 2-12 days

0
