S4001 (8972-4) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

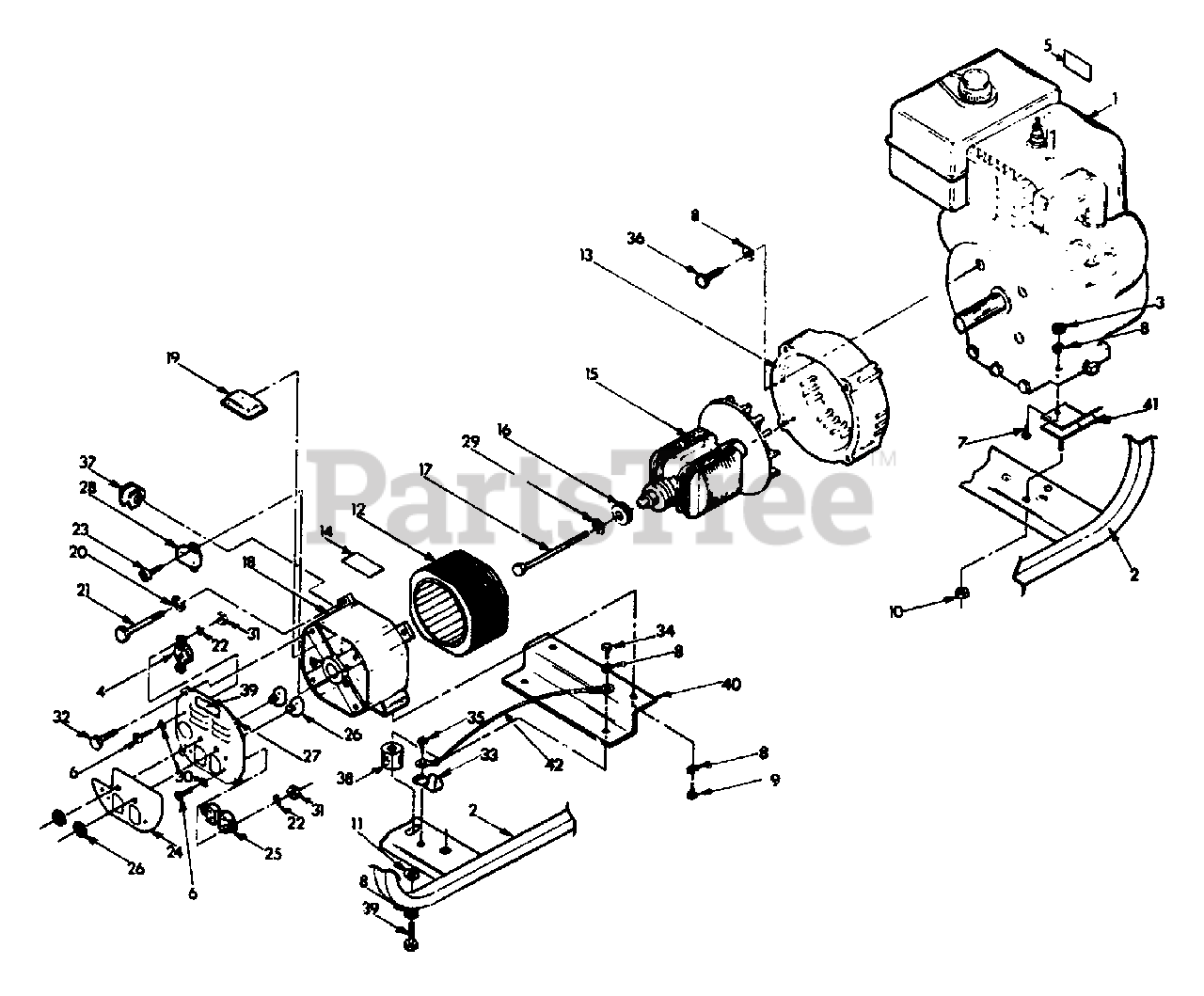

Generator Parts Diagram

  • Title

1

Briggs & Stratton 76516

ENGINE, BRIGGS & STRATTON

$

$

Currently unavailable

2

Briggs & Stratton 75987

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 45771

HEX NUT, M8-1.25

$

$

Not available

4

Briggs & Stratton 68735

RECEPTACLE, 240V. 20AMP.

$

$

Not available

5

Briggs & Stratton 39178

DECAL

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, PAN HEAD-NO. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 76222

PHILIPS PAN HEAD-MACH. SCR M8-1.25 x 40 LONG
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

LOCKWASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

CAPSCREW, HEX HEAD-M8 x 1.25 x 20MM
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 52858

NUT FLANGE LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 22145

FLATWASHER-5/16"

$

$

Not available

12

Briggs & Stratton 74708

STATOR ASSEMBLY

$

$

Currently unavailable

13

Briggs & Stratton 66365G

HOUSING, ENGINE ADAPTOR
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 72079

DECAL

$

$

Currently unavailable

15

Briggs & Stratton 74715

ROTOR ASSEMBLY

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 24421

BOLT, ROTOR-5/16"-24 x 7.62"
(Superseded to 24421GS)

$18.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, CIRCUIT (BRIDGE RECT)
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCKWASHER-M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449E

BOLT, STATOR-M6-1.00 x 115MM

$

$

Currently unavailable

22

UNKNOWN

$

$

Not available

23

Briggs & Stratton 66849

SCREW (TAPTITE)-M5-0.80 x 15MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 72278

DECAL-RECEPTACLE PANEL

$

$

Currently unavailable

25

Briggs & Stratton 68759

RECEPTACLE-120 V.AC
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 66819

BREAKER, CIRCUIT-20 AMP.

$

$

Currently unavailable

27

Briggs & Stratton 72098

PANEL, RECEPTACLE

$

$

Not available

28

Briggs & Stratton 66386

HOLDER ASSEMBLY, BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 67451

FLATWASHER (SPECIAL)

$

$

Currently unavailable

30

Briggs & Stratton 23365

LOCKWASHER (SERRATED) NO.8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 74908

SCREW (TAPTITE)-M5-0.80 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

34

Briggs & Stratton 22185

CAPSCREW, HEX HEAD-5/16- 18 x 1/2"
(Superseded to 5022185)

$70.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 24489

SCREW (CRIMPTITE)-NO. 10-24- x 1/2"

$

$

Currently unavailable

36

Briggs & Stratton 22336

SCR.-HEX HD.-5/16"-24 x 2-1/2"

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 44624

VIBRATION MOUNTING-1.19 x 1.37 DIA

$

$

Not available

39

Briggs & Stratton 22142

CAPSCREW, HEX HEAD-5/16-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 73078

ALTERNATOR SUPPORT

$

$

Currently unavailable

41

Briggs & Stratton 70642

VIBRATION MOUNT
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

42

Briggs & Stratton 10453621

UNIT GROUND WIRE

$

$

Currently unavailable
