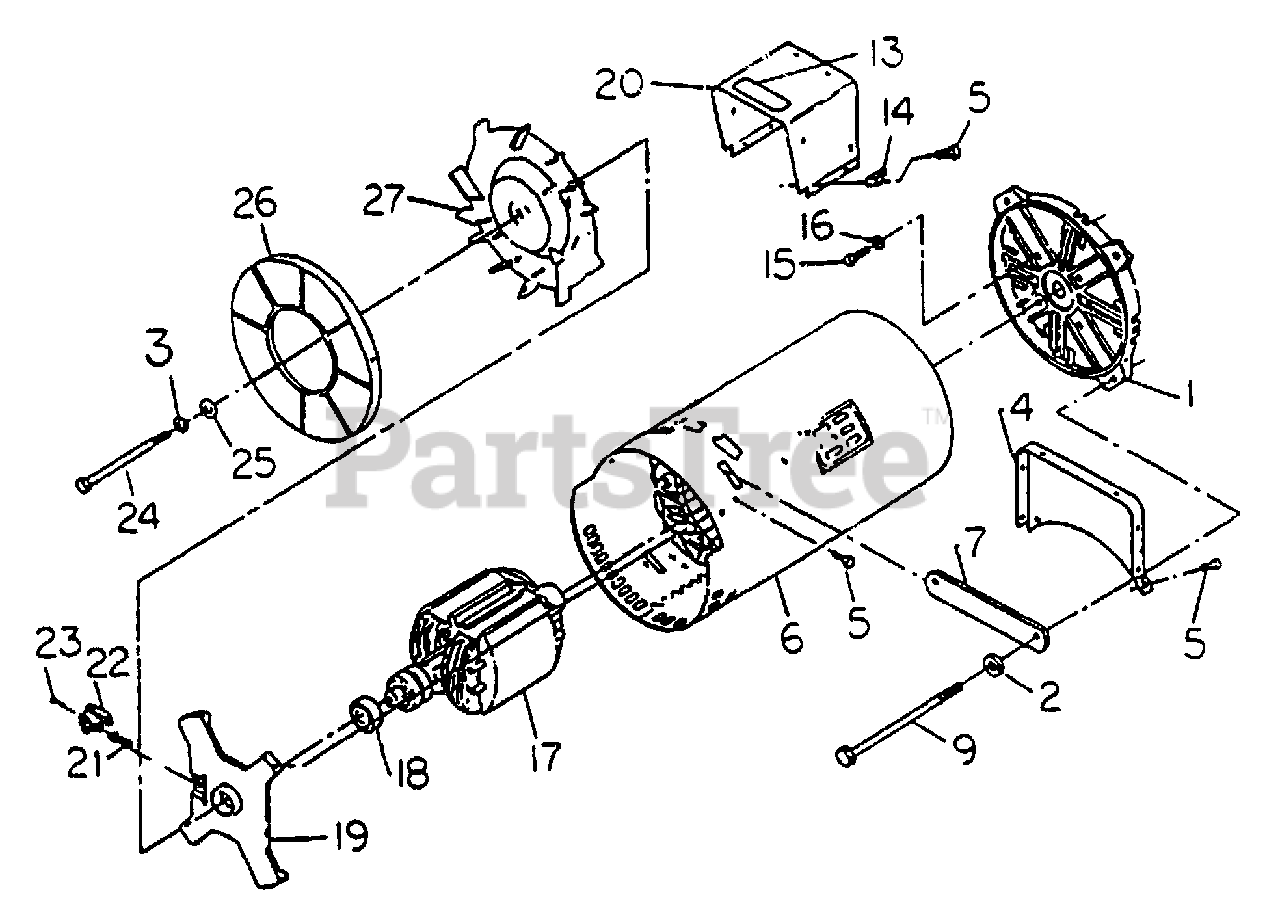

S5000T (8872-0) - Generac 5,000 Watt Portable Generator A-C Generator No. 68764 Parts Diagram

5,000 Watt Portable Generator

A-C Generator No. 68764 Parts Diagram

  • Title

1

Briggs & Stratton 43873

HOUSING, Engine Adapter

$

$

Currently unavailable

2

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 43874

BACK, Panel Shroud
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 24489

SCREW

$

$

Currently unavailable

6

Briggs & Stratton 68730

STATOR

$

$

Currently unavailable

7

Briggs & Stratton 44338

BAR, Stator Bolt

$

$

Currently unavailable

9

Briggs & Stratton 44395B

BOLT, Stator

$

$

Currently unavailable

13

Briggs & Stratton 68720B

DECAL - Data

$

$

Currently unavailable

14

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

15

Briggs & Stratton 23152

CAPSCREW, Hex Head - 3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

17

Briggs & Stratton 68794

ROTOR

$

$

Currently unavailable

18

Briggs & Stratton 24049

BEARING, Rotor

$

$

Not available

19

Briggs & Stratton 44943

CARRIER, Bearing

$

$

Currently unavailable

20

Briggs & Stratton 43875

SHROUD, Panel
(Superseded to 7043875YP)

$110.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25105

SCREW
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 25254

BOLT, Rotor
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 50190

WASHER, Fan Retainer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 44357

COVER, Fan
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 44331

FAN

$

$

Not available
